Eaton LL125M Condulet Form 5 - Malleable Iron NEC/CEC
Part Number: LL125M
Quick Summary
The Eaton LL125M Condulet Form 5 conduit outlet body provides rugged conduit access for 1-1/4 inch systems. In the field, installation challenges like misalignment, corrosion risk, and incompatible fittings can slow projects and increase costs. It carries NEC/CEC compliance, UL Canadian certification, and is rated for Ordinary/Non-Hazardous Locations, aligning with common industrial standards. Designed for industrial automation panels and Form 5 configurations, this conduit body helps streamline assembly, reduce rework, and improve long-term maintenance of panel wiring while supporting reliable, code-compliant installations. By leveraging its robust build and documented data, engineers and procurement teams can specify with confidence and simplify sourcing for form 5 conduit bodies across projects.
Product Information
Extended Description

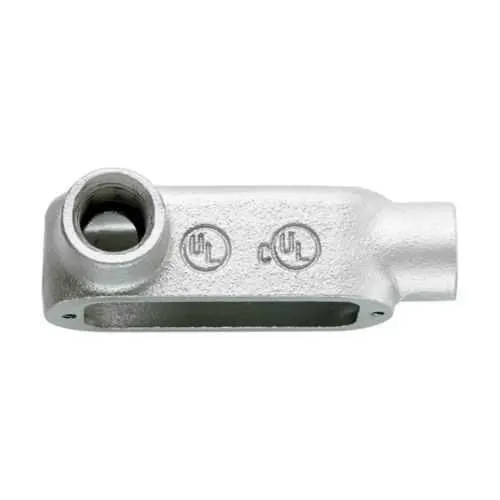

LL125M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LL shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LL125M
UPC
782274756165
Product Length/Depth
8.12 in
Product Height
2.75 in
Product Width
2.75 in
Product Weight
3.09 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Trade size
1-1/4"
Material
Malleable iron
Eaton Crouse-Hinds LL125M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LL125M
Feature: Malleable iron LL-shaped Form 5 design for 1-1/4 inch trade size. Business Impact: Delivers durable, vibration-resistant entry points that withstand harsh factory environments, reducing replacement cycles and downtime. Application: Ideal for industrial automation panels requiring reliable conduit continuity. Feature: NEC/CEC compliance with Ordinary/Non-Hazardous Location rating. Business Impact: Ensures regulatory alignment and safer electrical installations, minimizing risk of non-compliance penalties and project delays. Application: Suitable for general purpose electrical enclosures and non-hazardous indoor settings. Feature: Precise dimensions and weight (8.12 in length, 2.75 in width, 2.75 in height, 3.09 lb). Business Impact: Predictable fit in enclosure layouts, faster routing decisions, and smoother field mounting. Application: Panel wiring schemes where spatial planning is critical. Feature: Availability of 3D CAD drawing package and official catalogs. Business Impact: Accelerates design validation and BIM/CAx workflows, reducing engineering time and procurement lead times. Application: Design teams integrating Form 5 bodies into electrical schematics and layouts. Feature: Catalog information and UPC for traceability (LL125M, UPC 782274756165). Business Impact: Improves part identification, ordering accuracy, and inventory control. Application: ERP/purchasing workflows and supplier audits.
