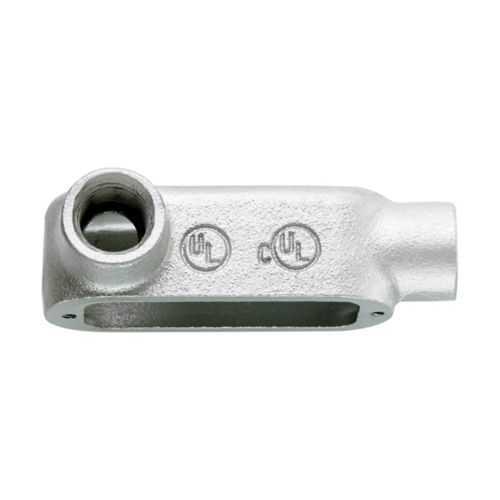

Eaton LL150M HDG Condulet Form 5 - Hot Dip Galvanized
Part Number: LL150M
Quick Summary
LL150M HDG conduit outlet body provides rugged Form 5 enclosure for industrial wiring. Many projects struggle with corrosion-prone, ill-fitting conduit bodies that slow installation. This LL150M HDG meets NEC/CEC and UL-listed requirements, improving reliability. It’s compatible with 1-1/2" trade size systems, reducing procurement complexity and field adaptation needs. In demanding environments, its malleable iron core and hot-dip galvanized finish deliver long service life. Engineers gain confidence from UL certifications and Eaton’s Form 5 guidance, which streamline specification and sourcing. By selecting this conduit outlet body, projects achieve predictable performance in ordinary locations and better installation efficiency.
Product Information
Extended Description
LL150M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LL shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LL150M
UPC
782274756172
Product Length/Depth
8.12 in
Product Height
3.5 in
Product Width
2.83 in
Product Weight
3.32 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Trade size
1-1/2"
Material
Malleable iron
Eaton Crouse-Hinds LL150M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LL150M
Form 5 LL shape with a 1-1/2 inch trade size standardizes conduit connections and accelerates procurement. The business impact is fewer field modifications and fewer adapters, cutting install time and error rates. This configuration is ideal for machine enclosures and control panels in manufacturing lines where quick, reliable connections matter. Material and finish: malleable iron with a hot-dip galvanized finish delivers strength and corrosion resistance. The business impact is extended service life in ordinary location environments, reducing repainting and maintenance intervals. Applications include outdoor or damp indoor installations where metal protection is essential. Dimensional footprint and weight: the 8.12 in length, 3.5 in height, 2.83 in width, and 3.32 lb weight provide a sturdy yet manageable profile for tight spaces. This supports precise space planning and efficient on-site handling. Certifications and compliance: NEC/CEC standards with UL listings for US and Canada offer regulatory confidence and faster approvals in controlled environments. Area classification is Ordinary/Non-Hazardous, aligning with typical factory settings. Procurement and compatibility: cataloged as LL150M HDG, it integrates with Eaton’s Condulet Form 5 lineup, simplifying sourcing and lifecycle management. Installation and maintenance: the consistent hot-dip galvanized finish enables uniform protection and faster installation with minimal touch-up.
Get a Quick Quote for a Eaton LL150M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL150M?
Enquire Now
FAQs
The LL150M HDG is designed for a 1-1/2 inch trade size conduit system with Form 5 configuration, enabling reliable connections in standard metal conduit installations such as machine enclosures and control panels.
Form 5 LL-shaped bodies standardize fittings and reduce the need for adapters, which minimizes field modification and misalignment, accelerating install time and improving first-time accuracy on the job.
Yes, the LL150M HDG is UL-listed with NEC/CEC compliance for ordinary/non-hazardous locations, covering both US and Canada to simplify approvals and procurement in typical industrial environments.
The hot-dip galvanized finish provides enhanced corrosion resistance and durability in ordinary locations, reducing maintenance needs and extending service life in damp or outdoor environments.
Include model LL150M HDG, trade size 1-1/2 in, material malleable iron, finish hot-dip galvanized, shape LL, length 8.12 in, height 3.5 in, width 2.83 in, weight 3.32 lb, and NEC/CEC compliance with UL listings for US and Canada.
