Eaton LL200M Condulet Form 5 Conduit Outlet - NEC/CEC
Part Number: LL200M
Quick Summary
LL200M is an Eaton Condulet Form 5 conduit outlet body used to terminate 2" conduit runs in industrial electrical installations. Installers often encounter corrosion, misalignment, and noncompliant enclosures that lead to rework and downtime, which this part helps mitigate. This Form 5 body aligns with Ordinary/Non-Hazardous Location classifications and NEC/CEC standards, ensuring regulatory compliance and safer terminations. By focusing on rugged construction and a proven form factor, it delivers reliable performance for control panels, junctions, and surface-mounted assemblies, while supporting fast, repeatable installations with standard conduit fittings and mounting patterns.
Product Information
Extended Description

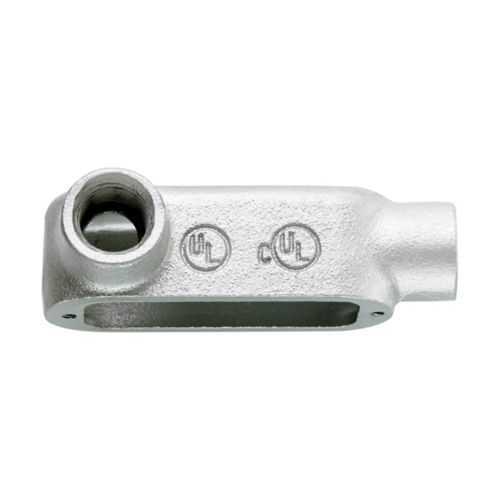

LL200M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LL shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LL200M
UPC
782274756189
Product Length/Depth
10.5 in
Product Height
4.12 in
Product Width
3.31 in
Product Weight
4.97 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Trade size
2"
Material
Malleable iron
Eaton Crouse-Hinds LL200M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LL200M
Material integrity meets field reliability: The LL200M uses malleable iron for robust protection against impact and torsion in demanding environments, reducing field replacements and maintenance costs. This translates to measurable uptime improvements and lower lifecycle costs for critical panel assemblies, even in busy industrial spaces where space is tight and wiring runs are dense. Form 5 design enables efficient access to wiring points, simplifying installation and troubleshooting during commissioning and future upgrades in conveyor lines and machine controls. The 2" trade-size compatibility across standard conduits ensures broad supplier compatibility, minimizing sourcing complexity and ensuring consistent fit across packages and enclosures. Its compact LL shape integrates cleanly with existing Condulet ecosystems, enabling rapid panel layout and modular expansion without rework. Compliance with NEC/CEC standards supports regulatory adherence while reducing risk during audits. The 10.5" product depth, 4.12" height, and 3.31" width provide predictable mounting footprints for standard electrical boxes, enabling precise enclosure planning. Weight of 4.97 lb balances ruggedness with manageable handling on site, improving installer efficiency and reducing fatigue during large-scale installations. In practice, users experience faster commissioning, fewer call-backs for fit issues, and a smoother upgrade path when migrating to Form 5 solutions in legacy facilities.
Get a Quick Quote for a Eaton LL200M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL200M?
Enquire Now
FAQs
LL200M uses standard 2" trade-size conduits and Form 5 mounting compatible with common Condulet assemblies. For installation, align the conduit openings with the enclosure knockout pattern, secure with the appropriate mounting screws, and connect using standard threaded fittings. The LL shape provides convenient wiring access, reducing the need for extra fittings and minimizing panel space requirements. This enables faster commissioning and easier future upgrades without compromising enclosure integrity.
Key specifications include a 2" trade size, Form 5 conduit outlet body, LL shape, malleable iron construction, product length/depth of 10.5 in, height 4.12 in, width 3.31 in, and weight 4.97 lb. The catalog number is LL200M and the UPC is 782274756189. It is designed for Ordinary/Non-Hazardous Locations and aligns with NEC/CEC standards for electrical installations.
Yes. LL200M is classified for Ordinary/Non-Hazardous Locations, which means it meets the safety and performance requirements for standard industrial environments. Its Form 5 configuration supports robust enclosure terminations, helping ensure reliable wiring connections and protection against dust, grime, and incidental moisture typical in controlled factory settings.
LL200M complies with NEC/CEC standards for wiring fittings and conduit terminations, supporting regulatory compliance in North American markets. It is associated with UL-certified Condulet Form 5 components, and the product literature confirms listing for ordinary non-hazardous locations. This combination helps satisfy safety audits and ensures compatibility with other NEC-compliant components in form 5 configurations.
LL200M offers durable malleable iron construction, reducing corrosion-driven maintenance and replacement cycles. Its precise dimensions and standard 2" trade size promote faster installation and fewer field modifications, improving project ROI through shorter commissioning times and lower labor costs. Long-term durability supports fewer parts swaps during facility upgrades, further reducing total cost of ownership.
