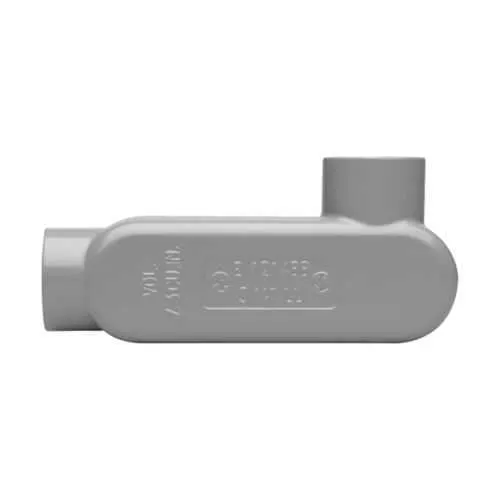

Eaton LL25 Condulet Outlet - 3/4 in Rigid/IMC, UL Certified
Part Number: LL25
Quick Summary
Eaton LL25 Condulet Outlet is a rugged conduit outlet body for 3/4 in rigid/IMC systems. Installers often struggle with durable, code-compliant components that install quickly in tight spaces. UL certification for Series 5, NEC/CEC standards, and ordinary/non-hazardous area classification ensure safe, compliant operation. Designed for Wiring & Connectivity applications, LL25 helps reduce inventory variety while accelerating panel builds. With copper-free aluminum construction and a compact LL form, it delivers long-term maintenance savings.
Product Information
Extended Description
LL25 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LL shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LL25
UPC
784564140227
Product Length/Depth
5.07 in
Product Height
2.28 in
Product Width
1.64 in
Product Weight
0.48 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Conduit type
Rigid/IMC
Trade size
3/4"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies UL certification
Condulet Series 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LL25
Feature: Copper-free aluminum construction. Business Impact: corrosion resistance with lighter weight, reducing maintenance costs and improving field handling. Application: ideal for control panels and enclosures in general industry. Feature: LL shape with a 3/4 in trade size. Business Impact: compact footprint enables tighter routing and faster layouts, cutting installation time. Application: machine wiring runs in constrained spaces and on equipment interfaces. Feature: Rigid/IMC conduit compatibility. Business Impact: eliminates the need for adapters, streamlining installs and minimizing part variety. Application: standard conduit runs across manufacturing lines and service panels. Feature: Dimensions and weight (5.07 in length, 2.28 in height, 1.64 in width, 0.48 lb). Business Impact: smaller footprint and lighter assemblies reduce enclosure size, shipping, and handling costs. Application: space-constrained control cabinets and field deployments. Feature: Certifications and standards (NEC/CEC, Ordinary/Non-Hazardous Locations, UL certifications). Business Impact: ensures code compliance and lowers risk of field rework. Application: critical for plant-wide electrical installations and regulated environments. Feature: Availability of spec sheets and catalogs (Series 5). Business Impact: accelerates design-in and BOM accuracy, improving procurement cycles. Application: engineering teams integrating Condulet Series 5 into panel assemblies and drawings.
Get a Quick Quote for a Eaton LL25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL25?
Enquire Now
FAQs
LL25 supports 3/4 in trade size conduit and is designed for rigid/IMC systems. This simplifies panel design by ensuring a single, compatible outlet body for common conduit runs in general industrial environments.
LL25 is listed under NEC/CEC standards and intended for Ordinary/Non-Hazardous Locations. It carries UL certification for Series 5 applications, including US and Canada compliance data.
LL25 measures 5.07 in in length, 2.28 in in height, and 1.64 in in width with a weight of 0.48 lb, making it compact for tight enclosure spaces while maintaining robust performance.
You can access the Eaton LL25 specification sheet and Series 5 catalogs from the provided downloads, including the LL25 datasheet and related literature for quick design-in.
LL25 offers a corrosion-resistant copper-free aluminum body, a compact LL shape for tight spaces, and NEC/CEC compliance with UL certification, translating to faster installation, lower maintenance, and reduced part variety in BOMs.
