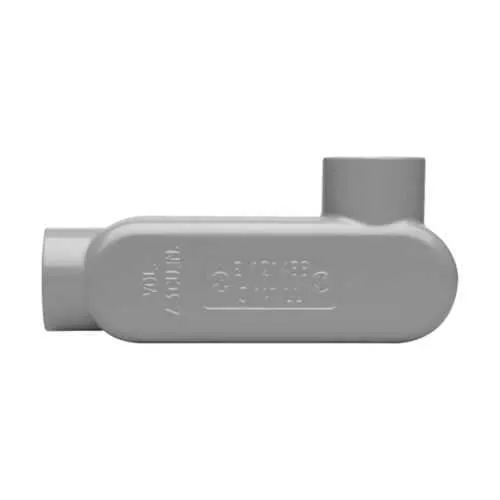

Eaton LL35 Condulet Series 5 Conduit Outlet Body - NEC/CEC
Part Number: LL35
Quick Summary
Eaton LL35 Condulet Series 5 conduit outlet body is a rugged enclosure for wiring terminations in rigid/IMC conduit systems. Engineers often struggle with field-fit inconsistencies, corrosion-prone hardware, and misaligned mounting when upgrading control panels. This solution aligns with NEC/CEC requirements and is suitable for ordinary/non-hazardous locations, supporting safer, code-compliant installations. With copper-free aluminum construction and a 1" trade size, it delivers lighter handling, easier installation, and long-term durability, reducing maintenance cycles. The Series 5 design also facilitates standardized sourcing and faster replacements across multi-site automation deployments, delivering measurable time and cost savings for panel builders and maintenance teams.
Product Information
Extended Description
LL35 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LL shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LL35
UPC
784564140234
Product Length/Depth
5.94 in
Product Height
2.68 in
Product Width
1.9 in
Product Weight
0.64 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Conduit type
Rigid/IMC
Trade size
1"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies UL certification
Condulet Series 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LL35
Copper-free aluminum construction reduces weight and resists corrosion, enabling longer service life and easier on-site handling for routine maintenance and field retrofits. This translates to lower labor costs and faster panel wiring in automation cabinets and machine controls. The LL shape with a 1" trade size ensures compatibility with common rigid/IMC conduits, improving routing efficiency and reducing the need for additional adapters or fittings in tight enclosure spaces. Users benefit from robust mechanical protection for terminations, which minimizes downtime and enhances reliability in manufacturing lines. Series 5 compatibility supports standardized installation practices, simplifying inventory management and supplier coordination for OEMs and integrators. The product’s compact dimensions—5.94 in length, 2.68 in height, 1.9 in width—and modest 0.64 lb weight enable easier handling during installation and shipping, cutting locus-time and improving on-site throughput. NEC/CEC compliance guarantees conformance to widely adopted electrical codes in ordinary locations, reducing compliance risk during audits and handovers. In addition, the copper-free aluminum construction improves thermal performance in enclosure environments, helping to maintain connection integrity and extend asset life in continuous-duty panels.
Get a Quick Quote for a Eaton LL35
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL35?
Enquire Now
FAQs
LL35 is designed to fit the Eaton Crouse-Hinds Series 5 lineup and supports 1" trade size rigid/IMC conduit. Its copper-free aluminum construction aligns with standard Condulet Series 5 mounting patterns, allowing straightforward integration into existing panels and enclosures. This compatibility minimizes the need for extra adapters and reduces installation time across multi-line deployments.
Key specs include copper-free aluminum construction, LL shape, 1" trade size, rigid/IMC conduit compatibility, and a weight of 0.64 lb with overall dimensions of 5.94 in length, 2.68 in height, and 1.9 in width. The product carries NEC/CEC compliance and is intended for ordinary/non-hazardous locations, ensuring reliable code-compatible performance.
Yes. LL35 is certified for ordinary/non-hazardous locations and adheres to NEC/CEC standards. This makes it appropriate for typical manufacturing floors, assembly lines, and panel assemblies where standard electrical enclosures and conduit bodies are required, reducing compliance risk during inspections and audits.
The combination of lightweight copper-free aluminum and a compact LL-shaped design streamlines on-site handling and routing of conduit runs. Its 1" trade size and rigid/IMC compatibility minimize fittings, while NEC/CEC compliance reduces rework due to code issues. This translates to faster assembly, lower labor costs, and quicker time-to-operational status for automation panels.
Official datasheets and certification resources are available from Eaton. Key references include the LL35 specification sheet, Crouse-Hinds Series 5 catalog page, and UL certification PDFs linked in Eaton’s product downloads. Accessing these documents supports design validation, procurement decisions, and audit readiness for panel builds.
