Eaton LL400M Condulet Form 5 conduit outlet body - NEC/CEC
Part Number: LL400M
Quick Summary
LL400M Condulet Form 5 conduit outlet body provides rugged, ready-to-install housing for industrial conduit fittings. Engineers often confront mounting clearance, corrosion risk, and downtime when upgrading legacy Form 5 outlets, especially in panel and enclosures with tight layouts. This Eaton unit is NEC/CEC compliant and rated for Ordinary/Non-Hazardous Locations, with Canadian certification references available for added assurance. By leveraging its malleable iron construction and 4" trade-size compatibility, you gain long-term reliability, easier maintenance, and predictable performance in automation environments, while meeting industry standards. The combination of robust build and standards alignment helps shorten installation cycles and lowers lifecycle costs in control panels and process equipment.
Product Information
Extended Description

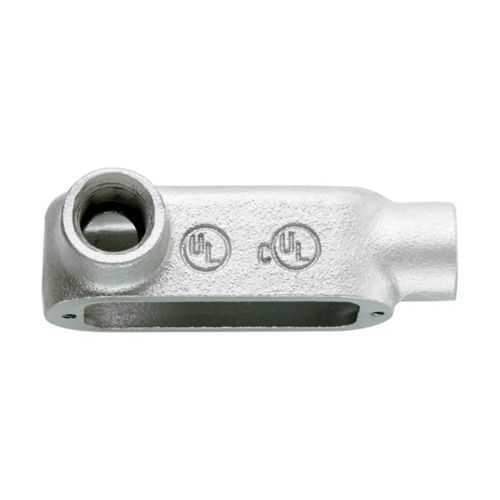

LL400M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LL shape, 4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LL400M
UPC
782274756226
Product Length/Depth
16.5 in
Product Height
7.13 in
Product Width
7.19 in
Product Weight
24.31 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Trade size
4"
Material
Malleable iron
Eaton Crouse-Hinds LL400M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LL400M
Feature: Malleable iron Form 5 conduit outlet body provides rugged, durable housing. Business Impact: Enhances resistance to impact and wear in harsh industrial environments, reducing replacement cycles and downtime. Application: Suitable for use in harsh factories and outdoor installations where Form 5 fittings are required. Feature: LL shape with 4" trade size. Business Impact: Facilitates straightforward integration with standard conduit systems, saving on custom fabrication. Application: Ideal for new installations and retrofits in control panels and machinery enclosures. Feature: Dimensions and weight (16.5 in length, 7.13 in height, 7.19 in width, 24.31 lb). Business Impact: Predictable footprint enables accurate panel layout and shipping considerations, lowering design risk. Application: Useful for space-constrained equipment cabinets and modular automation setups. Feature: NEC/CEC compliance and area classification Ordinary/Non-Hazardous Locations. Business Impact: Ensures regulatory alignment, simplifying audits and reducing non-compliance risk. Application: Cross-border projects and multi-site installations in general industrial automation. Feature: Canadian certification references available. Business Impact: Facilitates procurement for Canadian projects and strengthens supplier qualification. Application: Supports global deployment of Condulet Form 5 fittings in multinational manufacturing operations. Feature: Weight and construction contribute to stable, vibration-resistant mounting. Business Impact: Improves enclosure integrity, reducing movement-related wear and wiring stress. Application: Heavy machinery and process lines where secure conduit routing is critical.
Get a Quick Quote for a Eaton LL400M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL400M?
Enquire Now
FAQs
LL400M supports a 4" trade size Form 5 configuration with a malleable iron housing designed for standard conduit systems. It mounts using conventional Condulet mounting patterns compatible with common panels and enclosures, enabling straightforward retrofits and new installations.
LL400M is NEC/CEC compliant and rated for Ordinary/Non-Hazardous Locations. Canadian certification references are available through the provided UL Canada certification downloads, along with the Crouse-Hinds Form 5 catalog pages for verification.
LL400M is ideal for control panels, machine enclosures, and process lines requiring Form 5 conduit outlet bodies. Its 4" trade size and malleable iron construction suit rugged industrial environments where reliable conduit termination and protection are essential.
No. LL400M is specified for Ordinary/Non-Hazardous Locations. For hazardous-area needs, select a conduit body rated for the appropriate IP/SIL/zone requirements and consult the applicable Eaton documentation.
The malleable iron Form 5 body delivers durability and resistance to wear, lowering maintenance and replacement costs. Its standard 4" trade size and NEC/CEC compliance streamline procurement and commissioning, reducing installation time and potential rework in automated facilities.
