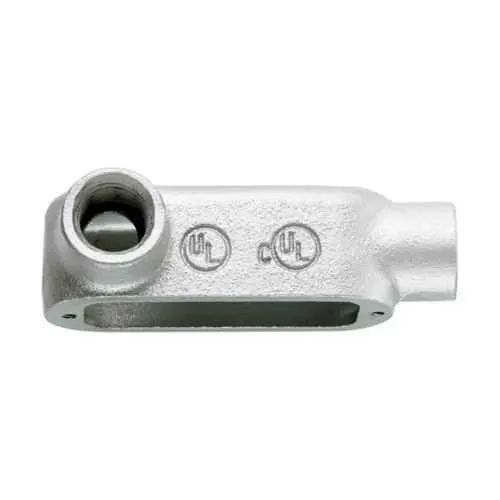

Eaton LL50M Condulet Form 5 Outlet Body - NEC/CEC
Part Number: LL50M
Quick Summary
LL50M Condulet Form 5 outlet body provides rugged conduit termination for 1/2" systems in industrial installations. Many projects struggle with installation delays, space constraints, and corrosion risk, which this unit mitigates with a compact, sturdy profile. It carries UL certification for metallic outlet boxes and complies with NEC/CEC, making it suitable for Ordinary/Non-Hazardous locations. The Form 5 design supports reliable field connections while minimizing enclosure size, reducing potential leaks and maintenance overhead. As part of the Eaton Crouse-Hinds Form 5 lineup, LL50M delivers plug-and-play compatibility with standard conduit runs and supports maintenance programs by offering clear service guidance and easy replacement of components, ensuring long-term reliability in rugged environments.
Product Information
Extended Description
LL50M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LL shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LL50M
UPC
782274756134
Product Length/Depth
4.68 in
Product Height
2.05 in
Product Width
1.37 in
Product Weight
0.76 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Trade size
1/2"
Material
Malleable iron
Eaton Crouse-Hinds LL50M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies UL certification
Condulet Form 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LL50M
The LL50M uses a Form 5 LL-shaped conduit outlet body cast in malleable iron to deliver exceptional impact resistance and durability in harsh industrial settings. This material choice translates to longer service life and lower maintenance costs, especially on busy shop floors or outdoor installations where daily wear is common. The 1/2" trade size keeps the footprint compact while maintaining robust sealing and accessible wiring, helping installers save time during field terminations and reducing space requirements in crowded panels. With NEC/CEC compliance and Ordinary/Non-Hazardous location suitability, users gain confidence that assemblies meet regulatory expectations and performance standards for safe operation. The unit’s precise dimensions—4.68 in length, 2.05 in height, and 1.37 in width—along with a light 0.76 lb weight, simplify mounting, inventory planning, and retrofit projects, while remaining compatible with standard Condulet components. Availability of 3D CAD drawings, a formal specification sheet, and UL certification documentation enhances design validation and procurement planning, supporting faster approvals and fewer design-change requests. In practice, technicians benefit from clear product data during installation, reducing error rates and minimizing project risk in Form 5 conduit systems.
Get a Quick Quote for a Eaton LL50M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL50M?
Enquire Now
FAQs
The LL50M is designed specifically for 1/2" trade size conduits in Form 5 configurations. Its malleable iron body provides a secure, weather-resistant enclosure, while the Form 5 geometry ensures tight sealing and straightforward wiring access. This makes it ideal for standard Condulet-based terminations in control panels and field installations, reducing assembly time and ensuring reliable terminations.
LL50M carries UL certification for metallic outlet boxes and complies with NEC/CEC requirements. It is suitable for Ordinary/Non-Hazardous Locations, aligning with common industrial electrical codes. This combination helps ensure safe operation, reduces inspection questions, and supports compliance during audits and project handoffs.
Best suited for rugged industrial control panels, machine enclosures, and outdoor or harsh environments where 1/2" conduit terminations are required. The Form 5 LL-shaped body provides reliable field connections, while the malleable iron construction withstands impact and corrosion, delivering long service life in demanding facilities.
The LL50M reduces downtime through quick, secure terminations and a lightweight, compact footprint that simplifies installation and panel layouts. Its UL/NEC/CEC compliance minimizes rework, and the availability of CAD drawings and a specification sheet accelerates design validation, procurement, and maintenance planning, delivering measurable cost savings over the life of the installation.
Additional resources include the Eaton 3D CAD drawing package, the Form 5 catalog page, UL and Canada certifications, and the official specification sheet. These assets support design validation, accurate bill-of-materials, and compliant integration with other Condulet Form 5 components.
