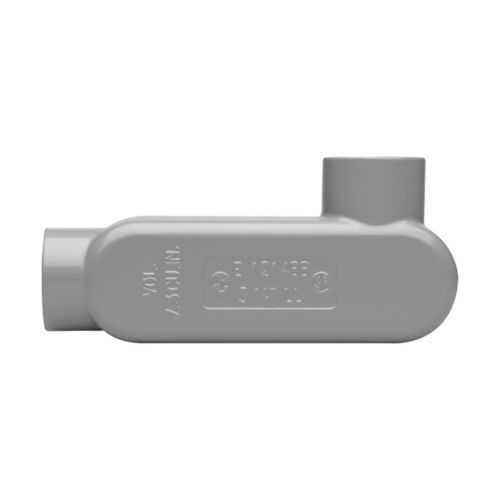

Eaton LL75 Condulet Series 5 - 2-1/2" copper-free aluminum outlet body
Part Number: LL75
Quick Summary
The Eaton LL75 Condulet Series 5 conduit outlet body provides rugged, corrosion-resistant junction points for rigid/IMC conduit used in industrial enclosures. Engineers often struggle with heavy, hard-to-install fittings that slow commissioning and elevate maintenance costs. This LL75 is UL-listed and NEC/CEC compliant, with an Ordinary/Non-Hazardous Locations area classification, ensuring safe, compliant installations across typical plant environments. Built from copper-free aluminum, it delivers long-term durability with reduced weight, simplifying installation and service. Compatibility with Eaton’s Series 5 catalogs and standard 2-1/2" conduit systems translates into faster procurement, streamlined field modifications, and lower total installed cost while maintaining regulatory compliance and reliability.
Product Information
Extended Description
LL75 Eaton: Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body, Rigid/IMC, Copper-free aluminum, LL shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Series 5 conduit outlet body
Catalog Number
LL75
UPC
784564140272
Product Length/Depth
13.14 in
Product Height
6 in
Product Width
4 in
Product Weight
5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Conduit type
Rigid/IMC
Trade size
2-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Series 5 brochure
Crouse-Hinds series Series 5 catalog page
Condulet Series 5 Conduit Outlet Bodies UL certification
Condulet Series 5 Conduit Outlet Bodies UL certification
Eaton Specification Sheet - LL75
Feature → Business Impact → Application: The LL75 is constructed from copper-free aluminum, reducing weight by comparison to traditional copper alloy bodies, which lowers labor time during handling and installation in constrained control panels and outdoor enclosures. This lightweight yet durable construction improves field efficiency and lowers crane or lift requirements on job sites. Application: panel builds and outdoor installations where weight reduction speeds commissioning and reduces logistics costs. Feature → Business Impact → Application: Shape LL and 2-1/2" trade size provide a standardized, compatible footprint with rigid/IMC conduit systems, enabling quick seating and reliable sealing in conduit outlet applications. Application: machine enclosures and process cabinets requiring robust conduit terminations with predictable fit. Feature → Business Impact → Application: Ordinary/Non-Hazardous Locations classification paired with NEC/CEC compliance simplifies approvals, reduces engineering time, and streamlines procurement for common industrial environments. Application: non-hazardous plant floors and non-combustible facilities where standard compliance is mandatory. Feature → Business Impact → Application: Rigid/IMC conduit compatibility delivers rugged protection against impact and vibration, decreasing risk of conduit movement and environmental ingress. Application: high-velocity air handling units and heavy-duty machinery enclosures in manufacturing sites. Feature → Business Impact → Application: Dimensions—13.14 in length, 6 in height, 4 in width—provide a predictable form factor for panel routing and enclosure layout, improving BOM accuracy and installation planning. Application: electrical rooms and control panels with constrained footprint. Feature → Business Impact → Application: UL certifications and Series 5 documentation (brochure, catalog page, specification sheet) support rapid design reviews and formal approvals, reducing project lead times. Application: design validation and compliance workflows across North American facilities.
Get a Quick Quote for a Eaton LL75
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL75?
Enquire Now
FAQs
The LL75 is a Condulet Series 5 conduit outlet body designed for rigid/IMC conduit with a 2-1/2" trade size. It provides a weatherproof, durable termination point in control panels, electrical enclosures, and industrial machines, simplifying field wiring and organization.
Yes. The LL75 is listed under UL certification for Condulet Series 5 and complies with NEC/CEC standards, with an Ordinary/Non-Hazardous Locations area classification, supporting regulatory approvals in typical industrial environments.
The LL75 measures 13.14 inches in length, 6 inches in height, and 4 inches in width, with an approximate weight of 5 pounds, enabling predictable field fit and easier handling during installation.
The LL75 is made of copper-free aluminum, providing corrosion resistance and a lighter weight than copper alloys. This translates to easier handling, faster installation, and long-term durability in harsh environments.
Official LL75 specifications and certifications are available through Eaton’s documentation: the LL75 specification sheet, Series 5 catalog page, brochures, and UL certification pages for Condulet Series 5 conduits. These resources support design validation and compliance reviews.
