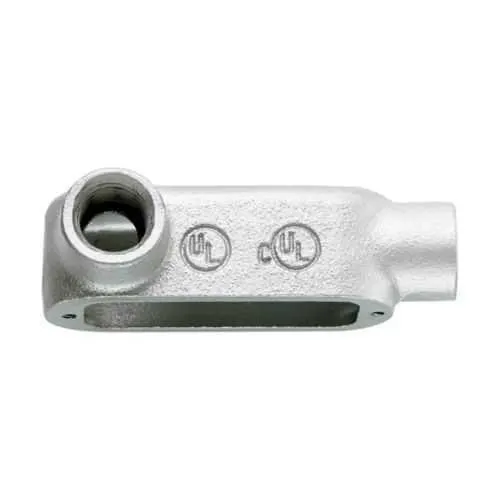

Eaton LL75M Condulet Form 5 - 3/4 in Malleable Iron
Part Number: LL75M
Quick Summary
Eaton LL75M Condulet Form 5 conduit outlet body is designed to protect terminations in industrial wiring runs while providing reliable access for maintenance. This rugged malleable-iron outlet body supports quick, code‑compliant connections in form‑5 configurations, helping prevent miswiring and leaks in conduit systems. Too often, downtime and damaged terminations plague harsh environments; this LL75M addresses those pain points with robust material and precise machining. It carries NEC/CEC compliance and ordinary/non-hazardous location ratings, with Canadian UL certifications that reassure installers and inspectors. By emphasizing a compact footprint, predictable fit, and simple installation, Eaton delivers safer, faster installations and lower lifecycle costs for plant facilities and service teams.
Product Information
Extended Description
LL75M Eaton: Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body, Malleable iron, LL shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 5 conduit outlet body
Catalog Number
LL75M
UPC
782274756141
Product Length/Depth
5.37 in
Product Height
2.25 in
Product Width
1.7 in
Product Weight
0.95 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
LL
Trade size
3/4"
Material
Malleable iron
Eaton Crouse-Hinds LL75M 3D drawing
Crouse-Hinds series Form 5 catalog page
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Condulet Form 5 Conduit Outlet Bodies Canadian certification
Eaton Specification Sheet - LL75M
Feature: Form 5 LL-shaped conduit body with 3/4 in trade size. Business Impact: Enables cleaner routing and easier access to terminations, reducing installation errors and rework. Application: Ideal for junctions and equipment enclosures in manufacturing plants where reliable terminations are critical. Feature: Malleable iron construction. Business Impact: Delivers enhanced durability against vibration and impact, extending service life in busy industrial floors. Application: Heavy‑duty environments such as metal fabrication and packaging lines. Feature: Precise dimensions and light weight (5.37 in L, 2.25 in H, 1.7 in W, 0.95 lb). Business Impact: Simplifies handling and reduces labor time during installation and servicing. Application: Tight panel spaces and overhead runs where weight matters. Feature: Compliance and certifications (NEC/CEC, Ordinary/Non‑Hazardous Locations, UL Canada). Business Impact: Streamlines approvals, reduces risk during audits, and supports cross‑border projects. Application: North American facilities with regulatory requirements. Feature: Compatibility with CAD resources and Eaton catalogs. Business Impact: Speeds design validation and procurement with readily available drawings and datasheets. Application: Engineering, procurement, and field teams planning conduit layouts. Feature: Availability of official documentation (CAD drawings, catalog page, specification sheet). Business Impact: Improves due diligence and ensures correct part selection. Application: Project kickoff through commissioning phases in industrial installations.
Get a Quick Quote for a Eaton LL75M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LL75M?
Enquire Now
FAQs
The LL75M is a Form 5 conduit outlet body designed for a 3/4 in trade size, with LL shape and malleable iron construction to provide reliable terminations and easy access in standard conduit runs.
LL75M complies with NEC/CEC standards, is rated for Ordinary/Non-Hazardous Locations, and holds UL Canada certifications, helping streamline inspections and cross‑border projects.
Built from malleable iron, the LL75M offers rugged durability suitable for industrial interiors and environments where reliability and resistance to vibration are important, while remaining within non-hazardous location classifications.
Dimensions are 5.37 in length, 2.25 in height, and 1.7 in width, with a weight of 0.95 lb, enabling predictable fit in tight panels and tool-free handling during installation.
Access the Eaton specification sheet LL75M, the Crouse-Hinds Form 5 catalog page, and CAD drawing packs via Eaton’s downloads to validate design and procurement before ordering.
