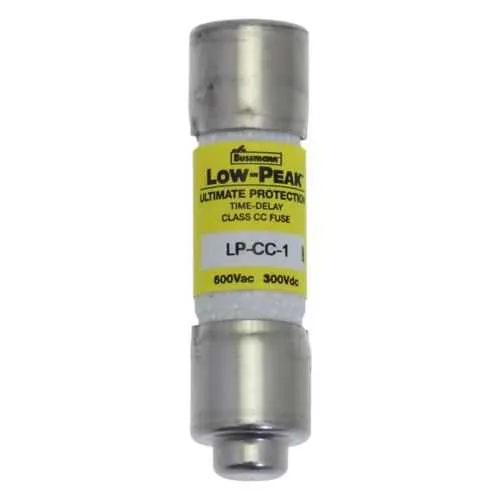

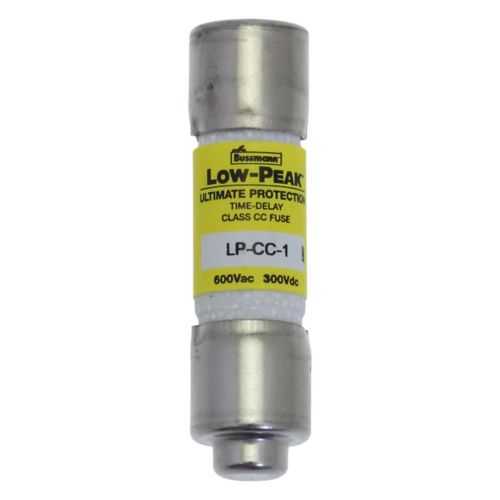

Eaton LP-CC-1 Fuse - Class CC Time-Delay, 200 kAIC
Part Number: LP-CC-1
Quick Summary
Eaton LP-CC-1 fuse provides current limiting for industrial control circuits. Engineers often contend with nuisance trips and inconsistent protection when selecting fuses for compact control panels. This LP-CC-1 is CE marked and RoHS compliant, with a Class CC design and dual-element construction for dependable interruption and protection. Its compact dimensions and ferrule-end connections support quick, secure installation in tight panel spaces, reducing conduit runs and installation time. By choosing a time-delay, current-limiting solution, maintenance intervals are extended and system reliability improves, while staying fully aligned with low-voltage branch circuit protection expectations. This makes it well-suited for specialized circuits and industrial control applications where safety, compliance, and uptime matter.
Product Information
Extended Description
LP-CC-1 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 1 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-1
UPC
051712180436
EAN
5027590446914
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Type
Current-limiting time-delay fuse
Special features
Non-indicating
Application
Specialized circuits and industrial control
Amperage Rating
1 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series full line catalog 1007, section 01- low voltage branch circuit fuses
Bussmann series Fuseology
Eaton Specification Sheet - LP-CC-1
Datasheet - FNQ-30
Feature: Time-delay, dual-element current-limiting fuse; Business Impact: Provides reliable protection against short circuits while tolerating temporary inrush, reducing nuisance trips and extending equipment life; Application: Ideal for specialized circuits and industrial control panels where controlled inrush is common. Feature: Class CC construction with 200 kAIC interrupt rating at 600 Vac and 20 kAIC at 300 Vdc; Business Impact: High fault clearance capacity protects downstream equipment and maintains process continuity; Application: Motor drives, feeders, and power distribution in demanding environments. Feature: Non-indicating fuse with ferrule end connections; Business Impact: Simple replacement and secure, robust connections that simplify panel wiring and maintenance; Application: Standard control panels and printed wiring boards. Feature: Compact form factor (0.41 in x 0.41 in x 1.5 in) and 0.15 lb weight; Business Impact: Space-saving protection that enables denser panel layouts and easier retrofits; Application: Modernized control architectures and retrofits. Feature: CE Marked and RoHS Compliant; Business Impact: Ensures regulatory compliance and environmental responsibility; Application: Global manufacturing environments with strict regulatory requirements.
Get a Quick Quote for a Eaton LP-CC-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-1?
Enquire Now
FAQs
To install LP-CC-1, power must be disconnected and wiring should follow the ferrule-end x ferrule-end configuration. Use a fuse compatible with Class CC, current-limiting timing, and the 1 A rating. Ensure secure ferrule termination and proper clearance inside the panel. Replacement should use an identical LP-CC-1 part to preserve interrupt ratings and compliance.
LP-CC-1 is a 1 A, current-limiting time-delay fuse with an interrupt rating of 200 kAIC at 600 Vac and 20 kAIC at 300 Vdc. It is designed for 600 Vac and 300 Vdc operation, with dual-element protection and a non-indicating indicator, suitable for specialized control circuits.
Yes. The LP-CC-1 provides high interrupt capability (200 kAIC at 600 Vac), which helps protect motor feeders and associated equipment in high-energy applications. Its time-delay characteristics tolerate inrush without nuisance tripping, while still offering rapid fault interruption to minimize damage.
LP-CC-1 is CE marked and RoHS compliant, aligning with European safety and environmental standards. This helps ensure compliance in regulated industrial environments and supports global procurement requirements for low-voltage protection fuses.
Regular inspection is advised after fault events or periodic maintenance. Replace only with an identical LP-CC-1 rated at 1 A to maintain the 200 kAIC (600 Vac) and 20 kAIC (300 Vdc) performance. The fuse features a 12-second response time at 200% as a reference for evaluating loading and protection margins.
