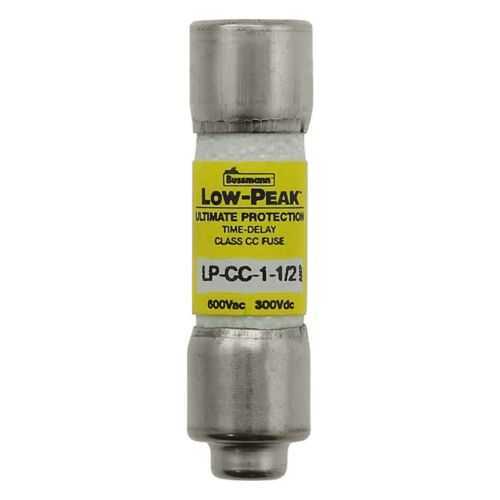

Eaton LP-CC-1-1/2 Class CC Fuse - UL Listed, 200 kAIC
Part Number: LP-CC-1-1/2
Quick Summary
The Eaton LP-CC-1-1/2 Class CC fuse delivers reliable current-limiting protection for industrial control circuits and specialized panels. In demanding electrical environments, nuisance trips or misapplication can derail production schedules and raise maintenance costs. UL Listed and CSA Certified marks with CE Marked RoHS compliance support global manufacturing standards. By combining a dual-element design with time-delay characteristics, it tolerates inrush while still interrupting severe faults quickly. The result is improved equipment uptime and safer start-ups. For manufacturers seeking scalable protection, this fuse aligns with standard Bussmann family hardware and supports straightforward replacement, stocking, and regulatory compliance across diverse facilities.
Product Information
Extended Description
LP-CC-1-1/2 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 1.5 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-1-1/2
UPC
051712180474
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
1.5 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Feature time-delay current-limiting fuse with dual-element design. Business impact it tolerates harmless inrush and minimizes nuisance trips, protecting equipment and reducing downtime. Application ideal for specialized circuits and industrial control panels where fast shutoff must occur after transient conditions. Feature amperage rating of 1.5 A with dual elements. Business impact enables precise protection for low current control circuits while maintaining high fault interrupting capability, reducing component damage and unplanned outages. Application suitable for control relays, valves, and small drives where reliability matters. Feature interrupt rating of 200 kAIC at 600 Vac and 20 kAIC at 300 Vdc. Business impact ensures safe operation during high fault currents, supporting electrical safety and code compliance. Application in heavy machinery and industrial systems with high inrush or safety interlocks. Feature ferrule end x ferrule end connections, 1.5 in length, 0.41 in width and 0.41 in height. Business impact simplifies installation and compatibility with standard Bussmann hardware, enabling quick replacements and streamlined spares. Application in panel boards and compact control enclosures. Feature melamine tube construction and standard packaging. Business impact delivers robust insulation, non-indicating status, and predictable performance. Application across regulated industries requiring UL, CSA, and CE RoHS compliance.
Get a Quick Quote for a Eaton LP-CC-1-1/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-1-1/2?
Enquire Now
FAQs
LP-CC-1-1/2 uses ferrule end x ferrule end terminations, enabling quick, secure mounting in compatible Bussmann style holders. When replacing, ensure the panel cavity supports standard ferrule sizing, inspect the ferrule ends for corrosion, and verify alignment to prevent bending or arcing. Use appropriate crimp tools and torque specifications recommended by Eaton to maintain secure contact and reliable interruption performance.
The time-delay characteristic of the LP-CC-1-1/2 allows brief overcurrents from inrush or motor start-up to pass without nuisance trips. This preserves startup sequences and reduces unnecessary shutdowns, while the current-limiting and Class CC design still interrupts severe faults quickly. In practice, this supports smoother automation starts and higher overall line reliability in control panels.
Yes. With a 1.5 A rating, dual-element current-limiting design, and high interrupt capability, the LP-CC-1-1/2 is well suited for specialized circuits in industrial control. Its rejection style reduces incorrect replacements, and the ferrule ends integrate easily with standard Bussmann hardware, delivering safe and dependable protection in machine controls, relays, and panel boards.
This fuse is UL Listed and CSA Certified, with CE Marked RoHS compliance. These certifications confirm adherence to safety and performance criteria across North America and Europe, ensuring regulatory alignment for global manufacturing. For OEMs and integrators, this simplifies supplier qualification, reduces compliance risk, and supports multi-region deployments.
The LP-CC-1-1/2 offers robust protection with a long service life due to its dual-element time-delay design, reducing nuisance trips and unplanned downtime. Its high interrupt ratings improve fault containment, potentially lowering equipment damage costs. With standardization across Bussmann family parts, inventory costs decrease and maintenance teams can perform faster replacements, delivering favorable total cost of ownership in continuous-operation environments.
