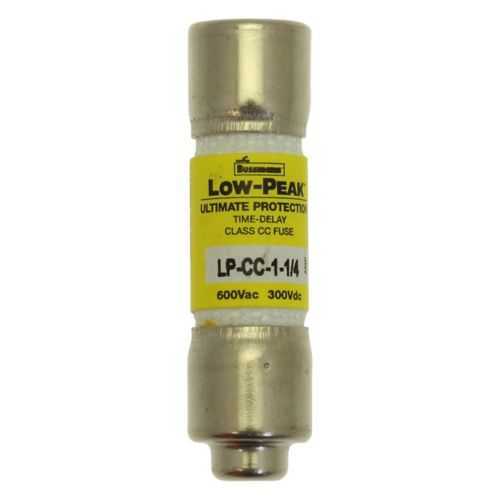

Eaton LP-CC-1-1/4 Fuse - Class CC, 200 kAIC at 600 Vac
Part Number: LP-CC-1-1/4
Quick Summary
The Eaton LP-CC fuse provides time-delay, current-limiting protection for specialized circuits and industrial control. Engineers often contend with nuisance trips and tight panel spaces, and the LP-CC’s dual-element design minimizes false clears while delivering dependable protection at peak currents. UL Listed, CSA Certified, and CE Marked with RoHS compliance ensure global safety and environmental readiness for panel builders and OEMs. Its ferrule-end connections simplify installation in compact enclosures, helping reduce downtime and maintenance costs while supporting reliable, code-compliant protection. Designed for 600 Vac and 300 Vdc systems, it ensures consistent performance across voltage rails.
Product Information
Extended Description
LP-CC-1-1/4 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 1.25 A, rejection style fuse, interrupting rating of 20 kA at 300 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-1-1/4
UPC
051712180450
EAN
5027590446921
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
1.25 A
Number of elements
Dual
Class
Class CC
Interrupt rating
20 kAIC at 300 Vdc 200 kAIC at 600 Vac
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
Bussmann series Fuseology
LP-CC Spec Sheet
Time-delay, dual-element current-limiting design enables inrush tolerance while protecting the circuit. This reduces nuisance trips and downtime in motor drives and control panels, delivering measurable productivity gains. The LP-CC is purpose-built for specialized circuits and industrial control where surge currents and short faults require precise protection. Rejection-style, non-indicating fuse mechanism prevents accidental insertion of incorrect parts, improving panel reliability and maintenance cycles. Field replacement is streamlined by ferrule-end connections, enabling quick swaps in standard Bussmann LP-CC holders. High interrupt ratings of 20 kAIC at 300 Vdc and 200 kAIC at 600 Vac provide robust fault protection for medium to high-energy circuits, reducing arcing and collateral damage during faults. Its compact form factor, ferrule-end connections, and 0.41 in depth support easy retrofits in space-constrained panels. The 1.25 A rating, dual-element construction, and Class CC classification support precise coordination with downstream protection devices, improving overall system selectivity. Compliance to CE Mark, RoHS, UL Listed, and CSA Certified standards reduces regulatory risk for global operations while the melamine tube construction offers consistent performance and reliability in harsh industrial environments. Standard packaging of 10 pieces per pack supports stocking and replenishment in spare-parts inventories, helping maintenance teams avoid downtime when replacements are needed.
Get a Quick Quote for a Eaton LP-CC-1-1/4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-1-1/4?
Enquire Now
FAQs
LP-CC-1-1/4 uses ferrule-end x ferrule-end connections, designed to drop into standard Bussmann LP-CC holders. Its compact dimensions (0.41 in depth, 0.41 in width, 1.5 in height) and dual-element design support quick field replacement in tight control panels without sacrificing protection or performance.
The fuse is 1.25 A and Class CC, with a 20 kAIC interrupt rating at 300 Vdc and 200 kAIC at 600 Vac. Voltage ratings are 600 Vac and 300 Vdc, making it suitable for mixed-voltage industrial control and specialized circuits while maintaining strict protection standards.
Yes. It is engineered for specialized circuits and industrial control, offering time-delay protection that tolerates inrush currents common in motors and drives, while delivering fast fault clearance to minimize downtime and equipment damage in panel assemblies.
The LP-CC-1-1/4 carries UL Listed and CSA Certified certifications, along with CE Marking and RoHS compliance. These approvals support global manufacturing and regulatory requirements for electrical protection components used in industrial equipment.
The dual-element design reduces nuisance trips, lowering unplanned downtime. Rejection-style features help prevent incorrect fuses from being installed, increasing reliability. With standard packaging of 10, it simplifies stocking, reducing spare-parts costs and improving service readiness in maintenance programs.
