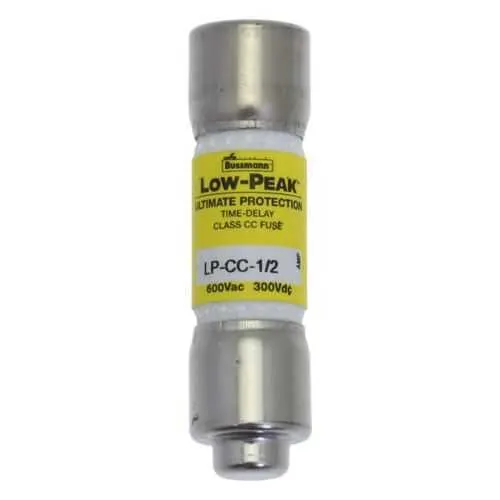

Eaton LP-CC-1/2 Fuse - 0.5A, 200kAIC at 600Vac
Part Number: LP-CC-1/2
Quick Summary
Eaton LP-CC-1/2 fuse is a current-limiting time-delay device designed for specialized circuits in industrial control panels. Engineers often grapple with nuisance trips and costly downtime from short-circuit transients; this fuse balances protection and selectivity. UL Listed, CSA Certified, and CE RoHS compliant, it aligns with global safety standards while supporting compliant panel builds. Its compact ferrule-end construction and dual-element design enable easy integration and longer service intervals, driving lower maintenance costs in automation environments. The 0.5 A rating and 200 kAIC interrupt rating allow protection for small control circuits and power supplies without sacrificing response time. For engineers seeking reliable protection with minimal configurational burden, LP-CC-1/2 delivers measurable business value.
Product Information
Extended Description
LP-CC-1/2 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 0.5 A, rejection style fuse, interrupting rating of 200kA at 600Vac and 20kA at 300Vdc.
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-1/2
UPC
051712180405
EAN
5027590096652
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
0.5 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Time-delay, current-limiting design reduces nuisance trips while guarding against inrush in delicate control circuits. Benefit: improved uptime and safer operation in automated panels; Application: industrial control equipment and machinery. The 0.5 A amperage rating combined with dual-element construction ensures precise protection and selectivity, reducing false trips and maintenance costs in automation systems. Benefit: smoother production lines and longer component life; Application: PLCs, relays, and control circuits. High interrupt rating of 200 kAIC at 600 Vac and 20 kAIC at 300 Vdc provides robust fault protection for power supplies and motor drives; Application: MCCs and automated machinery. Ferrule-end connections enable quick panel installation and reliable connections across standard fuse holders; Benefit: faster commissioning and easier replacement in maintenance windows. Compliance with CE RoHS and UL Listed CSA Certified ensures traceability and regulatory alignment; Application: compliant panel design and procurement. Packaging of ten units per pack reduces stocking variety and simplifies standardization; Benefit: lower inventory costs and faster replenishment.
Get a Quick Quote for a Eaton LP-CC-1/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-1/2?
Enquire Now
FAQs
LP-CC-1/2 uses ferrule-end terminations and is compatible with standard Bussmann Class CC fuse holders used in industrial control panels. Verify panel cutouts, mounting clearance, and the holder’s rated voltage. This design supports quick swaps during scheduled maintenance and minimizes downtime.
Key specs include a 0.5 A amperage rating, dual-element current-limiting time-delay design, and an interrupt rating of 200 kAIC at 600 Vac (and 20 kAIC at 300 Vdc). The device trips within 12 seconds at 200% overcurrent, delivering selective protection for sensitive circuits.
Yes. The LP-CC-1/2 is designed for specialized circuits and industrial control, offering reliable protection for control panels, PLCs, and automation equipment. Its rejection-style feature ensures correct fuse identification, while the dual-element construction provides protection against both short circuits and overloads without nuisance trips.
LP-CC-1/2 is UL Listed and CSA Certified, with CE Marking and RoHS compliance. These certifications support regulatory acceptance across North American and European markets, facilitate safety audits, and align with sustainability goals in manufacturing environments.
The fuse ships in standard packaging of ten pieces, enabling predictable inventory management. Dual-element design reduces maintenance interruptions by avoiding early nuisance trips, and high interrupt ratings improve overall system reliability. Easy ferrule-end installation speeds commissioning and replacements, contributing to lower downtime costs.
