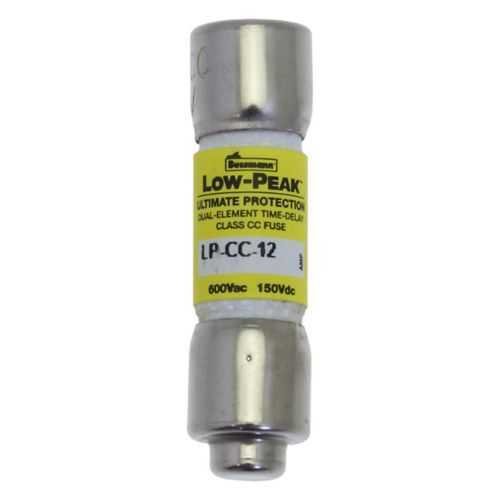

Eaton LP-CC-12 Fuse - Class CC, 200 kAIC, Time-Delay
Part Number: LP-CC-12
Quick Summary
Eaton LP-CC-12 Fuse is a current-limiting time-delay device providing reliable protection for industrial control circuits. This design helps prevent nuisance outages by delivering selective fault-clearing even during short surges, preserving production uptime. It carries UL Listed and CSA Certified marks and CE Marked RoHS compliance, ensuring regulatory alignment for global installations. For panel builders and maintenance teams, the ferrule-end, dual-element construction supports quick installation and durable service, while the 12 A rating fits common control circuits without oversizing. Typical applications include motor controllers, robotics, and PLC panels where fast protection matters; its Class CC format enables compact layouts with high interruption performance.
Product Information
Extended Description
LP-CC-12 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 12 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 150 Vdc
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-12
UPC
051712180252
EAN
5027590446945
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
12 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 150 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 150 Vdc
Feature: Current-limiting time-delay fuse with dual-element construction. Business Impact: Provides selective clearing during transient faults, reducing false trips and increasing equipment uptime. Application: Control panels and industrial machines where short surges occur. Feature: Rejection style ferrule end connections. Business Impact: Prevents mis-wiring and installation errors, speeding up panel assembly and maintenance. Application: Panel boards and control cabinets in manufacturing environments. Feature: High interrupt rating of 200 kAIC at 600 Vac (and 20 kAIC at 150 Vdc). Business Impact: Robust protection for high-inrush circuits and motor loads, minimizing damage to downstream components. Application: Heavy-duty drives, solenoids, and industrial controls. Feature: 12 A amperage rating with Class CC designation. Business Impact: Fits common control circuits without oversizing, optimizing space and cost. Application: Alarm panels, PLC interfaces, and safety interlock circuits. Feature: Compliance and certification package (UL Listed, CSA Certified, CE RoHS). Business Impact: Streamlines procurement with regulatory confidence and global acceptance. Application: International installations and multi-site projects. Feature: Ferrule end x ferrule end connection and melamine tube construction. Business Impact: Durable, reliable connections and temperature-tolerant housing suitable for harsh environments. Application: Enclosures and electrical cabinets in machinery and process plants.
Get a Quick Quote for a Eaton LP-CC-12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-12?
Enquire Now
FAQs
LP-CC-12 uses ferrule end x ferrule end connections and a compact Class CC footprint. It is designed for quick insertion into standard terminal blocks, reduces wiring errors with its rejection-style design, and fits common panel depths, supporting fast, reliable panel assembly and maintenance.
It is ideal for specialized circuits and industrial control—motor driver circuits, solenoids, PLC interfaces, safety interlocks, and other control panel loads. The dual-element, time-delay design provides reliable protection against inrush while limiting nuisance trips during short surges.
The LP-CC-12 is UL Listed, CSA Certified, and CE RoHS Compliant. These certifications ensure compliance with North American and European regulations, supporting safe operation, cross-border procurement, and reduced risk during audits and maintenance.
LP-CC-12 offers an interrupt rating of 200 kAIC at 600 Vac and 20 kAIC at 150 Vdc, with a voltage rating of 600 Vac / 150 Vdc. This makes it suitable for high-energy industrial circuits while preserving system reliability.
The time-delay element tolerates short surges without instantaneous blowing, reducing downtime and extending equipment life. In practice, this translates to lower maintenance costs, fewer replacements, and improved uptime in automation and process lines.
