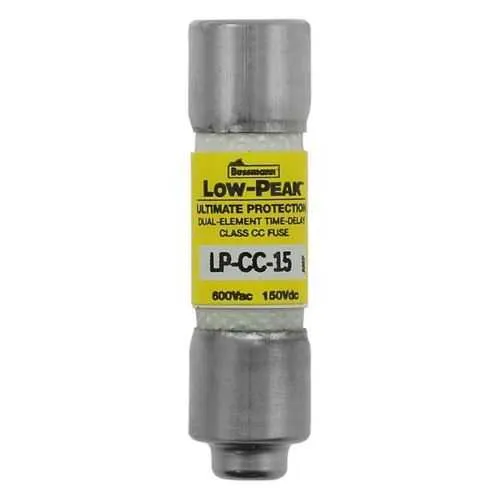

Eaton LP-CC-15 Fuse - Class CC, Time-Delay, 200 kAIC
Part Number: LP-CC-15
Quick Summary
The Eaton LP-CC-15 fuse is a current-limiting time-delay device designed for industrial control circuits. Engineers often wrestle with nuisance outages from surges that trip slower fuses; this model combines dual-element protection with time-delay behavior to improve system reliability and asset protection. UL Listed and CSA Certified, with CE Marked RoHS compliance, the LP-CC-15 meets rigorous safety and environmental standards. Designed for specialized circuits, motor controls, and panel protection, it supports long service life in harsh industrial environments. By aligning protection level with actual fault current, it also helps reduce unnecessary downtime and maintenance costs while meeting regulatory requirements and procurement standards.
Product Information
Extended Description
LP-CC-15 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 15 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 150 Vdc
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-15
UPC
051712115308
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
15 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 150 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 150 Vdc
Feature: Time-delay, dual-element current-limiting design. Benefit: Delivers coordinated protection in circuits with transient surges, reducing unnecessary outages and extending equipment life. Application: Industrial control panels and motor control centers where transient loads are common. Feature: Rejection style. Benefit: Prevents incorrect part substitutions in high-security electrical cabinets, enhancing safety and compliance. Application: Facilities with strict fuse verification requirements in critical control hardware. Feature: 15 A rating with 200 kAIC at 600 Vac and 20 kAIC at 150 Vdc. Benefit: Provides robust protection across both AC and DC fault conditions, improving selectivity and uptime. Application: Specialized circuits and mixed-voltage controls in automation systems. Feature: Ferrule end x ferrule end connections. Benefit: Easy, reliable installation with standard tooling, reducing field labor time. Application: OEM assemblies and service panels requiring quick, repeatable fuse replacements. Feature: 1.5 in length and 0.41 in both height and width; melamine tube. Benefit: Compact form factor with durable housing suited to dense panel layouts. Application: Space-constrained control cabinets in manufacturing environments. Feature: UL Listed, CSA Certified, CE RoHS compliant. Benefit: Verifiable compliance across key global markets, easing procurement and regulatory reporting. Application: Industry-standard protection in multinational manufacturing operations.
Get a Quick Quote for a Eaton LP-CC-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-15?
Enquire Now
FAQs
The LP-CC-15 uses ferrule-end connections and fits standard Class CC fuse holders. Its 1.5 inch length and 0.41 inch cross-section enable compact panel installation, especially in space-constrained automation cabinets. Ensure compatible ferrule terminals, observe 600 Vac/150 Vdc voltage ratings, and verify the panel design supports dual-element, time-delay protection for reliable fault handling.
Key specifications include a 15 A amperage rating, dual-element current-limiting design, and an interrupt rating of 200 kAIC at 600 Vac and 20 kAIC at 150 Vdc. It is a time-delay (slow-blow) Class CC fuse with a 12 second response at 200% of rated current, designed for specialized circuits and industrial control applications.
Yes. The LP-CC-15 is specifically intended for specialized circuits and industrial control, including motor starters and control panels where transient surges occur. Its time-delay characteristic helps prevent nuisance faults while maintaining rapid clearing of sustained faults, supporting downtime reduction and improved equipment protection in automated facilities.
The LP-CC-15 is UL Listed and CSA Certified, with CE RoHS compliance. These certifications confirm safety and performance compliance across major markets, simplify procurement, and support regulatory reporting. They reassure engineers that the fuse meets recognized standards for electrical protection in industrial environments.
By reducing nuisance outages from transient events and providing robust short-circuit protection, the LP-CC-15 minimizes unplanned downtime and extends component life. The rejection-style feature enhances reliability against incorrect replacements, while its compact form and reliable performance support lower total cost of ownership in high-volume manufacturing and automation deployments.
