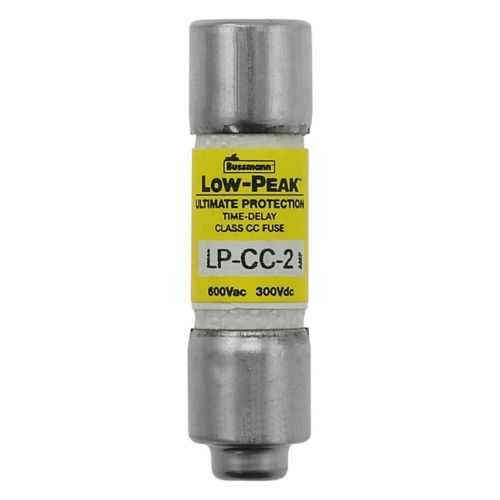

Eaton LP-CC-2 fuse - UL Listed, CSA Certified
Part Number: LP-CC-2
Quick Summary
Eaton LP-CC-2 fuse is a current-limiting, time-delay device designed for industrial control circuits. Engineers often contend with nuisance trips during equipment startup and the challenge of choosing the correct interrupt rating for mixed loads. This Bussmann Series Class CC fuse carries UL Listed and CSA Certified marks, along with CE Marked RoHS compliant status, reinforcing regulatory and environmental adherence. By combining fast fault interruption with controlled timing, it delivers reliable protection while minimizing unnecessary downtime. The LP-CC-2 integrates smoothly into panel boards and automation cabinets, offering predictable coordination with other protective devices and straightforward field replacement, making it a sound choice for ongoing maintenance and scalable control-system protection.
Product Information
Extended Description
LP-CC-2 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 2 A, rejection Style fuse, interrupting rating of 20 kA at 300 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-2
UPC
051712180269
EAN
5027590063807
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.015 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
2 A
Number of elements
Dual
Class
Class CC
Interrupt rating
20 kAIC at 300 Vdc 200 kAIC at 600 Vac
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Time-delay, dual-element current-limiting design provides controlled inrush tolerance while delivering rapid fault interruption. This reduces nuisance trips in motor starts and high-load events, improving line uptime and equipment life in automated systems. Ideal for specialized circuits and industrial control panels, the LP-CC-2 minimizes unnecessary downtime while maintaining robust protection against brief overcurrents.Rejection-style construction ensures only correctly mated holds accept this fuse, helping prevent installation errors in crowded control enclosures. This compatibility feature supports safer, faster panel wiring and reduces service calls caused by mis-seated components.High interrupt ratings of 20 kAIC at 300 Vdc and 200 kAIC at 600 Vac enable safe disconnection of fault currents in demanding electrical environments. When used in 600 Vac and 300 Vdc systems, the LP-CC-2 delivers dependable protection without sacrificing system availability or response time.Ferrule-end connections and a compact 1.5 inch length with 0.41 inch diameter simplify installation in standard Bussmann Series holders and existing enclosures. The melamine tube construction provides reliability in industrial settings and aligns with RoHS/CE compliance expectations.With a 2 A rating and dual-element design, this fuse supports energy-efficient protection strategies in automation gear, reducing spare-part inventories while meeting UL Listed and CSA Certified requirements for safe, certified protection in the field.
Get a Quick Quote for a Eaton LP-CC-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-2?
Enquire Now
FAQs
LP-CC-2 uses ferrule end x ferrule end connections and measures 1.5 inches in length with a 0.41 inch width/height, designed for standard Bussmann Series holders. Install in 600 Vac or 300 Vdc panels, ensuring correct mating with compatible holders and observing the device’s 2 A rating and dual-element construction for safe operation.
The dual-element time-delay fuse tolerates inrush currents often seen during motor starts and heavy loads, while still providing rapid interruption when a fault occurs. This reduces nuisance trips, minimizes downtime, and extends equipment life in automation and process-control environments.
LP-CC-2 is ideal for specialized circuits and industrial control panels where precise protection is required. Its Class CC form factor, 2 A rating, and high interrupt ratings support reliable protection in machinery, conveyors, and panel boards while maintaining compatibility with Eaton Bussmann series protection schemes.
LP-CC-2 carries UL Listed and CSA Certified marks, and CE with RoHS compliance. These certifications confirm electrical safety, international compatibility, and environmental responsibility, helping you meet regulatory requirements and customer expectations in global deployments.
Using LP-CC-2 reduces maintenance calls due to nuisance trips, thanks to its time-delay design, while delivering clear fault indications through non-indicating status. Its easy field replacement, together with high fault-current ratings, can lower downtime costs and extend panel reliability in continuous-operation facilities.
