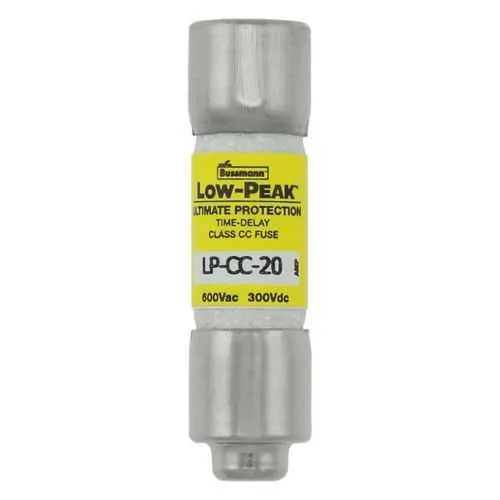

Eaton LP-CC-20 Fuse - 200 kAIC at 600 Vac, UL Listed
Part Number: LP-CC-20
Quick Summary
Eaton LP-CC fuse delivers reliable protection for specialized circuits and industrial control. This time-delay dual-element device minimizes nuisance trips that常 occur with sensitive loads in control panels and motor circuits. UL Listed and CSA Certified, with CE Marked RoHS compliance, the LP-CC-20 supports regulatory alignment and safe operation across markets. By combining a compact form factor with robust interrupt performance, it delivers measurable business value through reduced downtime and easier compliance for industrial environments. Leverage this Class CC fuse to optimize protection strategies while maintaining cost efficiency and faster maintenance cycles.
Product Information
Extended Description
LP-CC-20 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 20 A, rejection Style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-20
UPC
051712180276
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
20 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Feature → Business Impact → Application: The LP-CC-20 is a current-limiting time-delay fuse with dual elements, which reduces nuisance tripping on motor starts and high-inrush scenarios, improving machine uptime in automated lines and industrial controls. This results in lower maintenance costs and smoother production without compromising safety in critical circuits. Application: Specialized circuits and industrial control environments require dependable protection that tolerates short surges while quickly interrupting faults.
Get a Quick Quote for a Eaton LP-CC-20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-20?
Enquire Now
FAQs
The LP-CC-20 uses ferrule-end connections and measures 1.5 inches long with 0.41 inch wide ferrules. Install in a compatible holder or bus assembly, ensuring correct ampere rating and orientation. Use standard safety practices, verify mounting clearance, and confirm that the device matches the panel’s fuse block type to avoid installation errors.
The LP-CC-20 is a 20 A, dual-element current-limiting time-delay fuse with an interrupt rating of 200 kAIC at 600 Vac and 20 kAIC at 300 Vdc. It is designed for Class CC applications, with a ferrule-end connection and a 1.5 inch length suitable for compact control panels.
Yes. The LP-CC-20 is UL Listed and CSA Certified, with CE Marking and RoHS compliance, ensuring regulatory alignment across North American and European markets and supporting safer, compliant electrical protection for industrial equipment.
This fuse is ideal for specialized circuits and industrial control applications, including motor starters, drives, and control panels requiring time-delay protection and high fault-current tolerance without nuisance trips. Its 20 A rating and dual-element design make it suitable for equipment with inrush and peak-load conditions.
Choose the LP-CC-20 for its reliability in high-inrush environments, its non-indicating design reduces tamper indicators, and its ferrule-end connections simplify field wiring. The fuse’s robust interrupt ratings and RoHS/ULCSA compliance also contribute to longer service life and fewer regulatory concerns, lowering lifecycle maintenance costs.
