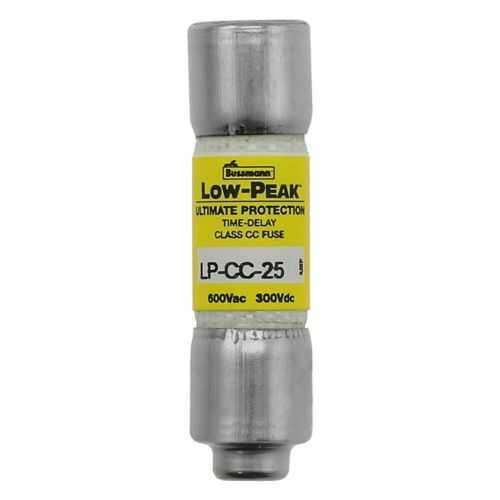

Eaton LP-CC-25 Fuse - UL Listed Class CC Time-Delay
Part Number: LP-CC-25
Quick Summary
The Eaton LP-CC-25 fuse is a 25 A current-limiting time-delay device designed for specialized circuits in industrial control. In demanding environments, nuisance trips and slow fault clearance can cause costly downtime; this fuse helps keep critical equipment up and running. UL Listed, CSA Certified, CE Marked RoHS Compliant — these certifications reassure safety and regulatory alignment across global sites. The product is built for reliability in control panels and MCCs, offering predictable response and robust protection. By combining high interrupt ratings with compact packaging, it delivers business value through reduced maintenance, improved uptime, and easier compliance within modern automation architectures.
Product Information
Extended Description
LP-CC-25 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 25 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-25
UPC
051712180283
EAN
5027590446983
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
25 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Feature → Business Impact → Application: The LP-CC-25 uses a dual-element current-limiting time-delay design to minimize fault energy during faults without sacrificing speed for short-circuits, reducing wear on downstream components and lowering maintenance costs in continuous-process environments. Application: Ideal for specialized circuits in industrial control where dependable protection and nuisance-trip resistance matter for uptime. Feature → Business Impact → Application: The ferrule end connections and melamine tube construction simplify installation and enhance mechanical durability in panel assemblies, improving installation confidence and long-term reliability in harsh industrial settings. Application: Suitable for control relays, motor starters, and drive interfaces where space is constrained and wiring consistency matters. Feature → Business Impact → Application: Rejection-style fuse design prevents installation errors in high-density panels, boosting safety and reducing mis-wiring risk during panel assembly. Application: Beneficial in compact electrical protection blocks in machine control circuits. Feature → Business Impact → Application: 600 Vac / 300 Vdc rating and 200 kAIC / 20 kAIC interrupt capacity provide strong short-circuit protection for high-energy systems, supporting compliance with electrical safety standards. Application: Critical in feeders, distribution blocks, and MCCs where fast yet controlled interruption is required. Feature → Business Impact → Application: 12-second response at 200% rating translates to rapid fault clearing in heavy-load applications, minimizing fault propagation and improving overall process stability. Application: Useful for heavy machinery, CNCs, and packaging lines where downtime costs are significant.
Get a Quick Quote for a Eaton LP-CC-25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-25?
Enquire Now
FAQs
Install the LP-CC-25 using ferrule end connections, ensuring the panel wiring matches the 600 Vac / 300 Vdc rating and 25 A amperage. Verify the holder or block is rated for Class CC devices and observe proper heat dissipation and clearances to prevent nuisance trips in high-energy circuits.
The LP-CC-25 is a 25 A current-limiting time-delay fuse with 200 kAIC interrupt rating at 600 Vac and 20 kAIC at 300 Vdc. It features dual-element construction, ferrule end terminations, and a 12-second response at 200% for reliable fault clearing.
LP-CC-25 uses a dual-element design to limit peak fault current while accommodating temporary inrush variations. The time-delay characteristic prevents nuisance interruptions on motor starts or control circuits, improving machine uptime and reducing unnecessary replacements.
Yes. The LP-CC-25 is UL Listed and CSA Certified, with CE marking and RoHS compliance, ensuring safety, performance, and regulatory alignment across global installations.
Best suited for specialized circuits and industrial control, including motor starters, drives interfaces, and control panels where space is limited and robust protection is required. Its Class CC, dual-element, and high interrupt ratings support reliable performance in demanding manufacturing environments.
