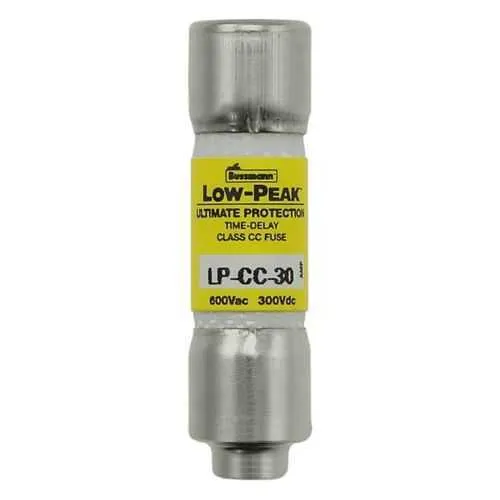

Eaton LP-CC-30 Fuse - UL Listed Class CC, 200 kAIC
Part Number: LP-CC-30
Quick Summary
LP-CC-30 fuse provides current-limiting, time-delay protection for industrial control circuits. Engineers often contend with nuisance trips during startup or short-circuit events, and a robust, selective protective device is critical. This fuse carries UL Listed, CSA Certified, and CE Marked RoHS compliance, ensuring safety and regulatory alignment across facilities. With its Class CC, dual-element design, and rejection-style construction, it delivers reliable protection while preventing incorrect insertion. The result is improved equipment uptime and reduced maintenance costs, supported by compatibility with standard Bussmann series holders and ferrule-end connections. For projects emphasizing industrial protection, energy efficiency, and lifecycle value, LP-CC-30 is a compelling choice.
Product Information
Extended Description
LP-CC-30 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 30 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-30
UPC
051712180313
EAN
5027590063814
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
30 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
Bussmann series Fuseology
LP-CC Spec Sheet
Feature → Business Impact → Application: The LP-CC-30 is a current-limiting time-delay fuse, delivering rapid fault clearing while minimizing arc flash risk. This supports safer panel operation and reduces downtime during fault events in automated systems. Application: specialized circuits and industrial control where fast clearing and selectivity matter. Feature → Business Impact → Application: Dual-element construction provides superior fault clearing and coordination with inrush currents, which lowers nuisance trips and protects downstream equipment. Application: motor drives and control panels with high inrush profiles. Feature → Business Impact → Application: 30 A rating and Class CC format enable compact protection in tight control enclosures, improving panel density without sacrificing protection. Application: compact industrial control cabinets and machine control panels. Feature → Business Impact → Application: Rejection-style connections prevent misinsertion, reducing installation errors and warranty claims. Application: field assemblies and replacement in mission-critical lines. Feature → Business Impact → Application: High interrupt ratings (200 kAIC at 600 Vac / 20 kAIC at 300 Vdc) provide robust short-circuit protection for critical equipment. Application: power distribution and industrial protection schemes. Feature → Business Impact → Application: 12 second response at 200% overload ensures reliable protection for transient faults, extending component life. Application: pumps, conveyors, and automated tooling. Feature → Business Impact → Application: Non-indicating design reduces maintenance checks while standardized packaging of ten units per pack supports stocking and procurement. Application: maintenance planning and warehouse optimization.
Get a Quick Quote for a Eaton LP-CC-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-30?
Enquire Now
FAQs
LP-CC-30 uses ferrule end x ferrule end connections and follows the Class CC form factor, making it compatible with standard Bussmann series holders and common industrial panels.
It provides 200 kAIC at 600 Vac and 20 kAIC at 300 Vdc, with a response time of 12 seconds at 200% overload, balancing speed with selectivity for complex circuits.
Yes. It is designed for specialized circuits and industrial control, delivering reliable protection in control panels, drives, and other automation equipment.
The LP-CC-30 is UL Listed, CSA Certified, CE Marked, and RoHS Compliant, ensuring safety, regulatory compliance, and environmental responsibility.
The fuse is non-indicating and packaged in standard quantities (10 per pack). Use matching LP-CC-30 devices for replacement to preserve protection coordination and compliance.
