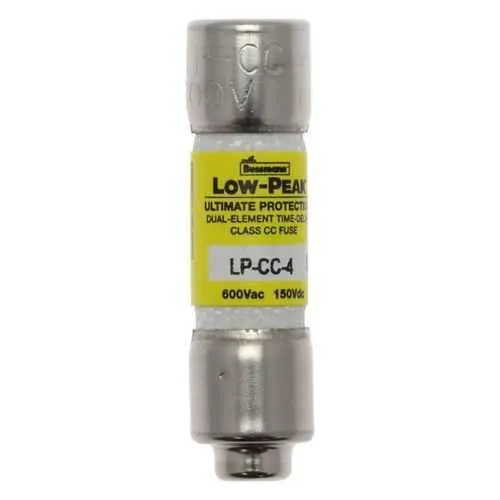

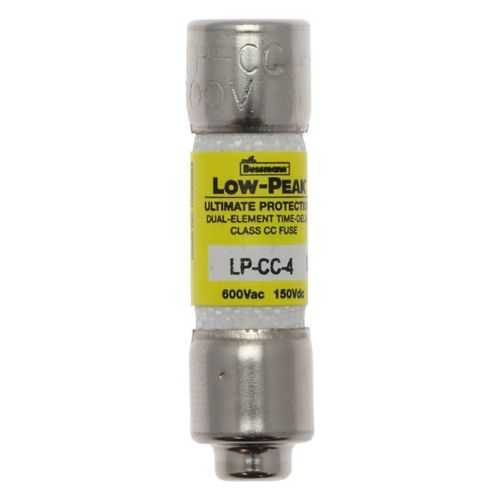

Eaton LP-CC-4 Fuse - UL Listed
Part Number: LP-CC-4
Quick Summary
The LP-CC-4 fuse provides time-delay, current-limiting protection for industrial control circuits. Engineers often contend with startup surges and space constraints that trigger nuisance trips or require larger protection devices. UL listed, CSA certified, and CE marked RoHS compliant, this fuse aligns with rigorous regulatory and safety standards. Designed for specialized circuits, it delivers reliable protection in a compact form factor, while offering essential compatibility with Bussmann series components. By combining dependable interrupt performance with a precise 4 A rating, the LP-CC-4 supports efficient maintenance planning and lower total cost of ownership for industrial automation environments.
Product Information
Extended Description
LP-CC-4 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 4 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-4
UPC
051712180320
EAN
5704057051187
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
4 A
Number of elements
Dual
Class
Class CC
Interrupt rating
20 kAIC at 150 Vdc 200 kAIC at 600 Vac
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 150 Vdc
Feature: Time-delay current-limiting design provides controlled fault clearing and startup tolerance. Business Impact: Reduces nuisance tripping during inrush events, increasing line uptime and productivity. Application: Industrial control panels with motors, drives, and valve actuation where startup surges are common. Feature: Dual-element construction enhances fault resistance and voltage withstand. Business Impact: Improves protection against transient faults, reducing equipment damage and warranty costs. Application: DC and AC control circuits subject to short-duration overloads. Feature: Rejection style with ferrule end connections ensures reliable, secure installation. Business Impact: Simplifies panel assembly, minimizes insertion errors, and shortens commissioning time. Application: Standard Bussmann fuse holders in control cabinets. Feature: High interrupt rating—20 kAIC at 150 Vdc and 200 kAIC at 600 Vac—delivers robust protection. Business Impact: Safeguards critical loads from short circuits and protects downstream equipment. Application: Specialized circuits and heavy-duty industrial controls. Feature: Current rating of 4 A with Class CC construction provides targeted protection. Business Impact: Optimizes selectivity and coordination with upstream devices, reducing collateral outages. Application: Control loops and protection schemes in machinery and process equipment. Feature: Material and form factor with melamine tube and compact footprint enable easy integration. Business Impact: Frees space in crowded panels and improves heat management, lowering enclosure costs. Application: Indoor electrical protection in compact electrical panels. Feature: Compliance with CE, RoHS, UL, and CSA certifications supports regulatory procurement. Business Impact: Accelerates supplier qualification and reduces qualification time for multi-region deployments. Application: Global manufacturing environments requiring certified protection components.
Get a Quick Quote for a Eaton LP-CC-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-4?
Enquire Now
FAQs
What fuse holders are compatible with LP-CC-4? Use ferrule-end connections compatible with Bussmann series holders. Ensure panel clearance and allow for the 1.5 in length. Follow manufacturer torque and mounting guidelines to maintain UL/CSA compliance and achieve consistent fault clearance.
LP-CC-4 is a 4 A current-limiting time-delay fuse with dual elements. It offers 20 kAIC interrupt rating at 150 Vdc and 200 kAIC at 600 Vac, with voltage ratings of 600 Vac and 150 Vdc, suitable for mixed AC/DC protection in industrial controls.
Yes, the LP-CC-4 is designed for specialized circuits and industrial control. Its time-delay characteristic accommodates motor inrush while its high interrupt ratings help protect downstream drives and contactors from faults.
LP-CC-4 is UL Listed, CSA Certified, and CE Marked RoHS Compliant, ensuring regulatory compatibility in North America and Europe and supporting regulatory procurement in global manufacturing environments.
Plan for periodic inspection and replacement after fault events or nuisance trips. Maintain spare units matching the LP-CC-4 catalog number (4 A rating). Check ferrule connections for secure contact and verify enclosure integrity to maintain protection and compliance.
