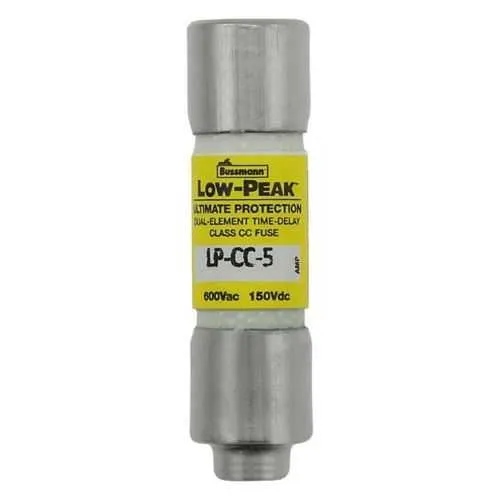

Eaton LP-CC-5 Fuse - Class CC, 200 kAIC at 600 Vac
Part Number: LP-CC-5
Quick Summary
LP-CC-5 fuse is a time-delay current-limiting protective device for specialized circuits and industrial control systems. Designers often contend with nuisance trips during inrush or startup, driving unnecessary downtime. UL Listed and CSA Certified, with CE RoHS compliance, support global safety and regulation alignment. The dual-element Class CC fuse accepts higher inrush while delivering fast fault interruption at 600 Vac. This combination translates to reduced panel downtime and easier procurement in industrial automation environments. For engineers, reliable datasheets and field compatibility reduce integration risk during retrofits. Rated 5 A with an interrupt rating of 200 kAIC at 600 Vac and ferrule-end connections simplify installation.
Product Information
Extended Description
LP-CC-5 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 5 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 150 Vdc
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-5
UPC
051712180337
EAN
5027590446877
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
5 A
Number of elements
Dual
Class
Class CC
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 150 Vdc
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 150 Vdc
Feature: Time-delay, dual-element design provides inrush tolerance while limiting damage from short circuits. Business Impact: Reduces nuisance tripping during startup and extends motor life, lowering maintenance costs. Application: Suitable for drives, relays, and transformer circuits in automated lines. Feature: Rejection style fuse prevents incorrect replacements in multi-fuse assemblies. Business Impact: Improves protection accuracy and reduces error-driven downtime during maintenance. Application: Panelboards and control cabinets with Bussmann series devices. Feature: High interrupt rating of 200 kAIC at 600 Vac and 20 kAIC at 150 Vdc. Business Impact: Protects downstream components from catastrophic faults, enhancing safety margins and system reliability. Application: Power distribution and motor control centers in heavy equipment. Feature: Class CC form factor with ferrule-end connections and 5 A rating. Business Impact: Enables compact, code-compliant protection in space-constrained panels while simplifying field retrofit and stock management. Application: Industrial automation panels and machine control circuits. Feature: Compliance and compatibility with RoHS, CE, UL Listed and CSA Certified. Business Impact: Streamlines global procurement, reduces audit risk, and supports cross-border installations. Application: Global manufacturing environments and multinational facilities.
Get a Quick Quote for a Eaton LP-CC-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-5?
Enquire Now
FAQs
LP-CC-5 uses ferrule-end connections and measures 0.41 in by 0.41 in with a 1.5 in height. Align the ferrules with the holder, secure per the datasheet torque, and replace in packs of 10. Ensure the 5 A rating matches the protected circuit and that the maximum 600 Vac rating is observed.
LP-CC-5 is a time-delay, dual-element current-limiting fuse rated at 5 A, with a 200 kAIC interrupt rating at 600 Vac and 20 kAIC at 150 Vdc. This combination tolerates inrush and rapid fault clearance, protecting downstream components and reducing machine downtime.
Yes. The LP-CC-5 is UL Listed and CSA Certified and CE marked RoHS Compliant, meeting safety and environmental requirements for global manufacturing, panel installations in Europe and North America, and regulatory audits.
Designed for specialized circuits and industrial control, including machine control, power distribution, and drives. The rejection style reduces mis-pairing in multi-fuse assemblies, and the ferrule-end construction supports quick field replacement in panelboards.
By tolerating startup surges with time-delay operation and delivering fast fault interruption at 600 Vac, it lowers maintenance costs and unplanned downtime. The UL/CSA/CE RoHS certifications streamline procurement, while the ferrule-end design speeds installation and retrofit projects in modern control panels.
