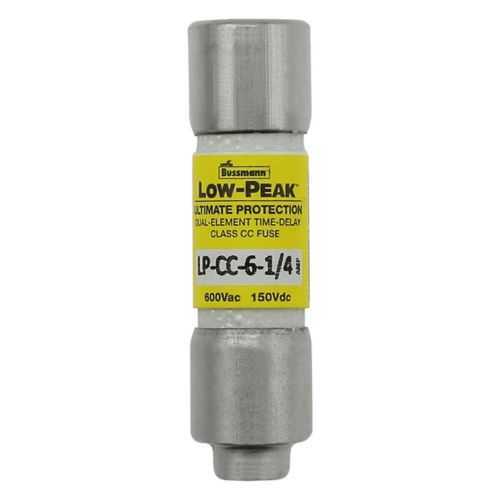

Eaton LP-CC-6-1/4 Fuse - 200 kAIC at 600 Vac UL Listed
Part Number: LP-CC-6-1/4
Quick Summary
The Eaton LP-CC-6-1/4 fuse is a current-limiting time-delay device designed for specialized circuits and industrial control. Engineers often wrestle with nuisance trips, limited panel space, and protection coordination; this fuse delivers selective fault interruption in a compact package. It carries UL Listed and CSA Certified marks, along with CE RoHS compliance, ensuring regulatory alignment across North American and European installations. With ferrule-end connections, a dual-element design, and a 6.25 A rating, it blends reliable protection with straightforward installation and easy field replacement in control panels.
Product Information
Extended Description
LP-CC-6-1/4 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 6.25 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-6-1/4
UPC
051712180375
EAN
5027590145398
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
6.25A
Number of elements
Dual
Class
Class CC
Interrupt rating
20 kAIC at 150 Vdc 200 kAIC at 600 Vac
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 150 Vdc
Feature: Current-limiting time-delay fuse provides fast fault interruption while tolerating inrush currents. Business impact: Protects sensitive electronics, reduces downtime, and extends component life in motor control and drives. Application: Ideal for specialized circuits and industrial control panels where precise protection and reliability are crucial. Feature: Dual-element construction enhances arc-quenching capability and improves selective coordination under high fault currents. Business impact: Lower downstream damage risk and fewer complete system outages. Application: Medium- to high-current industrial controls and panels with mixed load profiles. Feature: Rejection style design prevents incorrect insertion, enabling safer, faster installation. Business impact: Reduces wiring errors and service interruptions during panel assembly. Application: Rebutts miswiring in busy electrical rooms and OEM assemblies. Feature: Compact footprint with ferrule-end connections supports easy retrofit and space-saving installations. Business impact: Maximizes panel density and simplifies field maintenance. Application: Control cabinets with tight enclosure constraints. Feature: Regulatory compliance and high interrupt ratings provide peace of mind. Business impact: Meets CE RoHS, UL Listed, and CSA Certified standards while handling 20 kAIC at 150 Vdc and 200 kAIC at 600 Vac. Application: Global manufacturing environments requiring robust protection and traceability.
Get a Quick Quote for a Eaton LP-CC-6-1/4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-6-1/4?
Enquire Now
FAQs
To install the LP-CC-6-1/4, insert the ferrule-end fuse into a compatible Bussmann/Class CC fuse holder with proper ferrule terminals. Confirm correct amperage rating (6.25 A) and ensure the circuit is de-energized before insertion. Verify firm seating and test continuity after installation; use proper torque on terminal screws.
This fuse provides an interrupt rating of 20 kAIC at 150 Vdc and 200 kAIC at 600 Vac. The documented response time is 12 seconds at 200% of rated current, offering reliable fault interruption while tolerating normal inrush in appropriate loads.
Yes. It is designed for specialized circuits and industrial control applications, featuring a Class CC, dual-element current-limiting design, and rejection-style construction to prevent misinsertion. Its compact ferrule-end format supports installation in tight control panels while delivering robust protection.
The LP-CC-6-1/4 fuse is UL Listed and CSA Certified, with CE Marking and RoHS compliance. These certifications help ensure regulatory alignment for North American and European equipment and support supplier qualification and traceability in quality management programs.
The dual-element, time-delay design reduces nuisance tripping and supports longer service intervals in appropriate loads. Its compact footprint and ferrule terminals simplify replacement and retrofits, potentially lowering panel downtime and maintenance costs while delivering consistent protection in industrial control environments.
