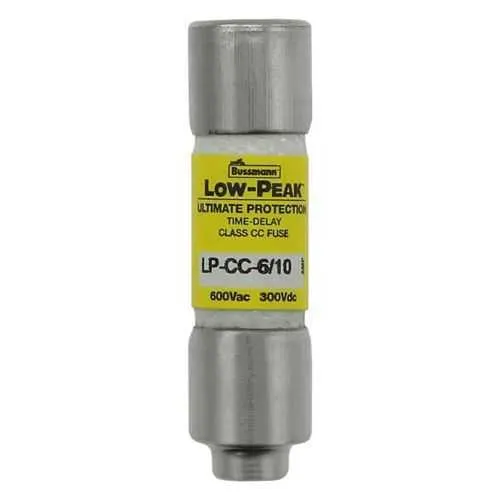

Eaton LP-CC-6/10 Class CC Fuse - 200 kAIC at 600 VAC
Part Number: LP-CC-6/10
Quick Summary
LP-CC fuse from Eaton Bussmann protects specialized circuits with current-limiting, time-delay protection for industrial control systems. Engineers often contend with nuisance tripping and difficult replacements in compact panels, which this fuse helps mitigate. It is UL listed and CSA certified for reliability, CE marked and RoHS compliant for global use. Designed for Class CC current-limiting protection, it reduces downtime and simplifies procurement for OEMs and maintenance teams. With a dual-element design and high interrupt capability, it performs reliably across 600 VAC and 300 VDC applications, delivering consistent protection in tough industrial environments.
Product Information
Extended Description
LP-CC-6/10 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 0.6 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-6/10
UPC
051712180412
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
0.6 A
Number of elements
Dual
Class
Class CC
Interrupt rating
20 kAIC at 150 Vdc 200 kAIC at 600 Vac
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 300 Vdc
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
Bussmann series Fuseology
LP-CC Spec Sheet
Feature — Current-limiting time-delay fuse pattern provides targeted protection while allowing inrush events to occur without immediate interruption, reducing equipment wear and nuisance trips. Business impact — Lower downtime and extended life for motors and drives, enabling safer, more predictable startup sequences in control panels. Application — Ideal for specialized circuits and industrial control systems where sequence integrity matters and inrush management is critical. Feature — 0.6 A amperage rating with dual elements gives precise, stable protection for small control circuits. Business impact — Prevents overcurrent damage to PLCs, relays, and instrumentation, while minimizing nuisance trips in routine operation. Application — Suitable for low-power control loops and signaling circuits within machine control architectures. Feature — High interrupt ratings of 20 kAIC at 150 Vdc and 200 kAIC at 600 Vac ensure fast, reliable fault interruption. Business impact — Superior protection against short circuits, reducing component burn and system-wide fault propagation. Application — Critical in power distribution sections of industrial equipment and motor control centers. Feature — Rejection style design prevents unauthorized substitution and ensures original protection level is maintained. Business impact — Improves compliance with safety standards and reduces the risk of improper fusing during maintenance. Application — Equipment cabinets and panel assemblies with strict safety regimes. Feature — Ferrule end x ferrule end connection and compact 1.5 in length with 0.41 in cross-section support easy, plug-and-play installation. Business impact — Faster commissioning, reduced install time, and cleaner panel layouts. Application — Standard Bussmann packaging in control panels and distribution blocks. Feature — 600 Vac / 300 Vdc rating and non-indicating indicator offer clear electrical performance without visual wear. Business impact — Aligns with global distribution and minimizes maintenance checks while maintaining clear protection boundaries. Application — Industrial power networks requiring robust, compliant protection.
Get a Quick Quote for a Eaton LP-CC-6/10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-6/10?
Enquire Now
FAQs
LP-CC-6/10 uses ferrule end x ferrule end terminals, which simplifies mounting in standard Bakelite or metal control panels. Ensure the panel cut-out and terminal spacing match the 1.5 inch overall length and 0.41 inch cross-section for a secure, compliant fit. No special tooling is required beyond typical crimp tooling for ferrules.
The fuse is 0.6 A rated, dual-element, current-limiting time-delay (class CC). It provides 20 kAIC at 150 Vdc and 200 kAIC at 600 Vac, with a voltage rating of 600 Vac / 300 Vdc and a 12 second response at 200% overload. These specs support reliable protection for small control circuits under inrush conditions.
Yes. With a 600 VAC rating and high interrupt capability (200 kAIC at 600 Vac), it is well-suited for industrial control panels, motor starters, and power distribution equipment operating at higher voltage levels, while maintaining selective protection with a precise 0.6 A rating.
LP-CC-6/10 is UL Listed and CSA Certified, with CE marking and RoHS compliance to support global deployments and regulatory adherence across Europe, North America, and other regions.
The dual-element, current-limiting design reduces nuisance trips and protects downstream devices, lowering unplanned downtime. A standard packaging quantity of 10 units facilitates stocking and rapid replacement, contributing to lower maintenance costs and improved uptime in OEM and service operations.
