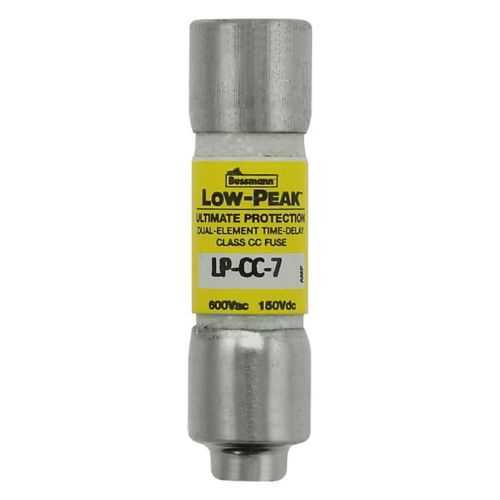

Eaton LP-CC-7 Fuse - Class CC Time-Delay UL Listed
Part Number: LP-CC-7
Quick Summary
The Eaton LP-CC-7 fuse is a Class CC current-limiting time-delay device designed for specialized control circuits and industrial panels. When panel reliability matters, nuisance blows from inrush or short circuits can grind production to a halt; this fuse helps prevent that downtime with selective protection. It carries UL Listed and CSA Certified markings, and CE RoHS compliance supports global deployments. By combining robust interruption performance with compact packaging, the LP-CC-7 delivers both safety compliance and installation efficiency, while reducing maintenance costs. For engineers seeking reliable protection without frequent replacements, this fuse offers a proven balance of protection, speed, and ease of use in demanding environments.
Product Information
Extended Description
LP-CC-7 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 7 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-7
UPC
051712180528
EAN
5027590446907
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
7 A
Number of elements
Dual
Class
Class CC
Interrupt rating
20 kAIC at 150 Vdc 200 kAIC at 600 Vac
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 150 Vdc
Feature: Time-delay, dual-element current-limiting fuse. Business impact: Manages inrush transients and short-circuit energy without nuisance trips, improving equipment uptime and reducing unplanned maintenance. Application: Motor drives, contactors, and control circuits in manufacturing lines. Feature: Class CC, ferrule-end connections, compact footprint. Business impact: Easy drop-in replacement in existing Bussmann LP-CC panels, faster installation, and space-efficient panel layouts. Application: Industrial control panels with limited mounting area. Feature: High interrupt ratings (20 kAIC at 150 Vdc, 200 kAIC at 600 Vac). Business impact: Superior protection for high-energy faults, lowering risk of collateral damage to upstream components. Application: Power distribution for automated systems and process controls. Feature: 600 Vac / 150 Vdc voltage rating with non-indicating indicator. Business impact: Clear safety and compliance, straightforward monitoring, and reduced wiring ambiguity during maintenance. Application: General-purpose protection in mixed AC/DC circuits. Feature: UL Listed, CSA Certified, CE Mark RoHS compliant. Business impact: Regulatory compliance across regions, easier supplier audits, and lower total cost of ownership through standardization. Application: Global rollouts of industrial control equipment and machinery.
Get a Quick Quote for a Eaton LP-CC-7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-7?
Enquire Now
FAQs
Install the LP-CC-7 in a compatible Class CC fuse holder with ferrule-end connections. Ensure the panel labeling reflects its 600 Vac and 150 Vdc ratings, and replace only with an identical LP-CC-7 device. The dual-element construction supports inrush handling, reducing false trips during motor start-up.
The LP-CC-7 is a 7 A current-limiting time-delay fuse with an interrupt rating of 20 kAIC at 150 Vdc and 200 kAIC at 600 Vac. It carries a 600 Vac / 150 Vdc voltage rating, Class CC designation, and dual-element construction for reliable fault containment in industrial circuits.
Yes. Its time-delay current limitation and high interrupt ratings make it well-suited for motor control centers, drives, and automation panels where inrush is expected. The 12-second response at 200% is designed to tolerate startup surges while still providing protection against sustained faults.
LP-CC-7 is UL Listed and CSA Certified, with CE RoHS compliance. These certifications support regulatory compliance across North America and Europe, simplifying procurement and integration into compliant machinery.
As a non-indicating fuse, LP-CC-7 requires routine replacement after fault events or at scheduled intervals per maintenance plan. Its ferrule-end construction and compact dimensions (0.41 in x 0.41 in cross-section, 1.5 in height) simplify stocking and replacement, with packaging that typically includes 10 pieces per package.
