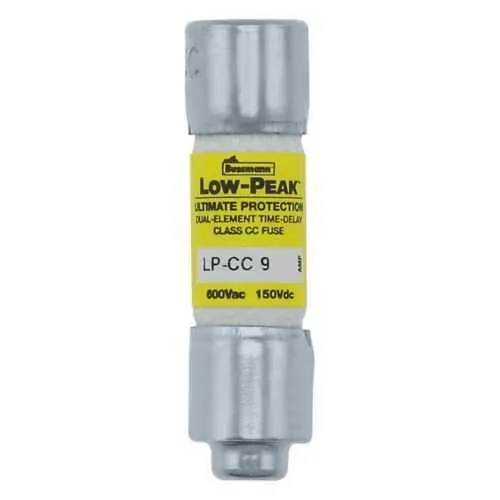

Eaton LP-CC-9 Fuse - Time-Delay, Class CC, UL Listed
Part Number: LP-CC-9
Quick Summary
LP-CC-9 fuse from Eaton provides current-limiting, time-delay protection for specialized control circuits. This helps reduce nuisance tripping in variable-load environments while preserving uptime. UL Listed and CSA Certified, along with CE RoHS compliance, ensure regulatory alignment across global installations. With a 9 A rating and dual-element construction, it supports Class CC protection in industrial control panels. Designed for reliability and ease of replacement, it helps maintain uptime while meeting safety and compliance goals. In systems requiring predictable response, the 12-second response at 200% overload delivers reliable protection with minimized downtime. Engineers appreciate the ferrule-end connection for quick, vibration-resistant installation.
Product Information
Extended Description
LP-CC-9 Eaton: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 9 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac
Product Name
Eaton Bussmann series LP-CC fuse
Catalog Number
LP-CC-9
UPC
051712180535
EAN
5027590096140
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Type
Current-limiting time-delay fuse
Special features
Rejection style
Application
Specialized circuits and industrial control
Amperage Rating
9 A
Number of elements
Dual
Class
Class CC
Interrupt rating
20 kAIC at 150 Vdc 200 kAIC at 600 Vac
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Quantity
10
Voltage rating
600 Vac, 150 Vdc
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
Bussmann series Fuseology
LP-CC Spec Sheet
The LP-CC-9 fuse combines a current-limiting, time-delay design with a dual-element construction, delivering selective protection for Class CC circuits while minimizing conductor damage during short load transients. Business impact: reduced downtime and fewer nuisance trips in automation systems, translating to higher line efficiency and improved overall equipment effectiveness. Application: ideal for specialized circuits and industrial control panels where precise time-delay behavior is critical, such as motor-control centers and control relays in packaging and process lines. The ferrule-end connections enable fast, durable panel mounting with high contact reliability, supporting vibration-prone environments common in manufacturing floors. Compatibility with UL, CSA, and CE RoHS standards simplifies multi-region deployments and procurement processes. Addressing common objections, this fuse remains replaceable without tools in many configurations, reducing maintenance time and risk of incorrect substitutions. Industry context: the LP-CC series is recognized for dependable discrimination in low- to medium-energy systems, aligning with energy-management initiatives and lifecycle cost reductions.
Get a Quick Quote for a Eaton LP-CC-9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LP-CC-9?
Enquire Now
FAQs
To install LP-CC-9, ensure the ferrule-end connections are clean and properly seated in the fuse holder. Align with the panel’s rail or enclosure mounting, insert firmly to avoid arcing, and verify the circuit is de-energized before replacement. The dual-element design supports quick re-engagement after a fault, helping minimize downtime while maintaining correct protection levels.
LP-CC-9 uses a current-limiting, time-delay fuse design with dual elements, which provides selective protection for Class CC circuits. This combination handles short transient overloads without blowing during brief surges, while still interrupting sustained faults rapidly, reducing potential damage to downstream components and improving overall system reliability.
Yes. LP-CC-9 is UL Listed and CSA Certified, with CE RoHS compliance. These certifications confirm conformity to recognized safety and environmental standards, simplifying regulatory approvals for global installations and ensuring consistent performance across equipment and panels.
LP-CC-9 is rated for 9 A with a 600 Vac and 150 Vdc voltage rating. It offers an interrupt rating of 20 kAIC at 150 Vdc and 200 kAIC at 600 Vac, enabling robust protection against short circuits in high-energy industrial systems while maintaining safe operation during normal load conditions.
Yes. The time-delay characteristic accommodates short transients, reducing nuisance trips that disrupt production. The ferrule-end design supports fast, reliable replacements, and the fuse’s durability under vibration minimizes rework. Combined with UL CSA CE certifications, this product contributes to lower maintenance costs and higher uptime in automated manufacturing lines.
