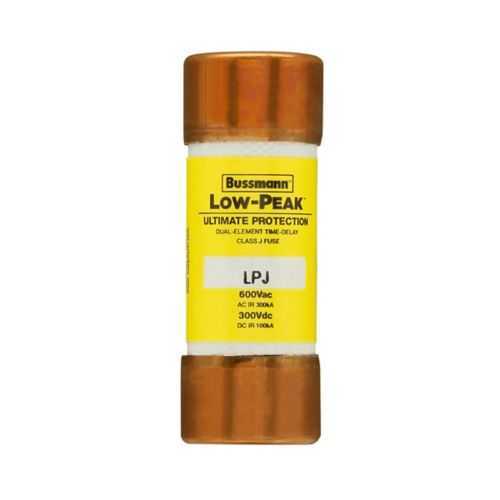

Eaton LPJ-1-8/10SP Fuse - Class J Time-Delay
Part Number: LPJ-1-8/10SP
Quick Summary
Eaton LPJ-1-8/10SP fuse provides time-delay, dual-element current-limiting protection for motors in industrial control panels. Engineers often wrestle with nuisance trips from motor inrush or brief overloads that interrupt production and wear components. The device is CE-marked and RoHS compliant, with Class J construction that delivers reliable interrupting performance in demanding environments. Its compact ferrule-end design and non-indicating indicators streamline installation and maintenance in panel boards. Using this LPJ fuse supports regulatory compliance while delivering robust motor protection and reduced downtime across automation and power-distribution schemes.
Product Information
Extended Description
LPJ-1-8/10SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 1.8 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-1-8/10SP
UPC
051712522762
EAN
5027590442077
Product Length/Depth
0.81 in
Product Height
2.25 in
Product Width
0.81 in
Product Weight
0.105 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
1.8A
Interrupt rating
100 kAIC Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating, High in-rush current motor protection
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Feature: Time-delay, dual-element current-limiting design. Business Impact: Allows higher motor inrush handling without sacrificing short-circuit protection, reducing nuisance trips and protecting windings. Application: motor starters, conveyors, pumps in automation panels. Paragraph two covers: Feature: High interrupt ratings of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc. Impact: Safe, code-compliant interruption of short circuits in demanding industrial power rails; Application: critical feeders and motor control circuits. Paragraph three highlights: Feature: Compact ferrule-end connections and dual-element construction. Impact: Easy panel mounting, reliable connections, and compatibility with standard panel hardware; Application: backplane assemblies and control panels with space constraints. Paragraph four discusses: Feature: Non-indicating operation with high in-rush motor protection. Impact: Reduces indicator-related maintenance and enhances uptime in busy environments; Application: automation systems where quick service is essential. Paragraph five summarizes: Feature: CE Marked, RoHS Compliant, Class J designation. Impact: Regulatory alignment and dependable protection for commercial and manufacturing settings; Application: general-purpose industrial fusing in electrical protection architectures.
Get a Quick Quote for a Eaton LPJ-1-8/10SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-1-8/10SP?
Enquire Now
FAQs
The LPJ-1-8/10SP is a time-delay, dual-element current-limiting fuse with ferrule-end connections designed for motor starters, control panels, and automation circuits operating up to 600 Vac or 300 Vdc, with a 1.8 A rating and high interrupt capability.
Amperage: 1.8A; Voltage: 600 Vac / 300 Vdc; Interrupt rating: 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc; Response: 10 s at 500% overload; Fuse type: time-delay, current-limiting.
Yes. Its time-delay design tolerates motor inrush while providing current-limiting protection, reducing nuisance trips and protecting downstream equipment in panel boards and motor drives.
The fuse is CE marked and RoHS compliant, with Class J construction, ensuring regulatory alignment and dependable performance in industrial environments.
Technical datasheets and catalogs are available from Eaton’s Bussmann series resources, including the Bussmann Full Line Catalog and the LPJ data sheet linked in the product downloads section.
