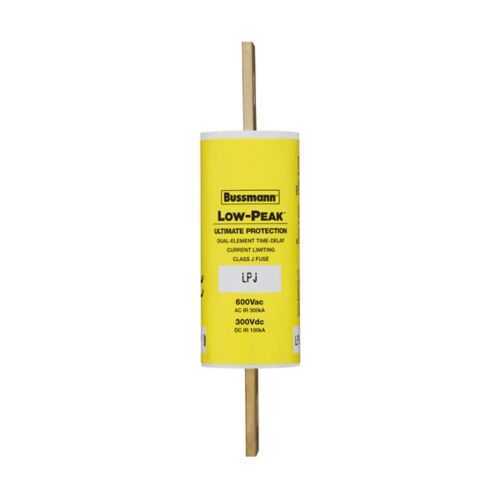

Eaton LPJ-100SP Fuse - Class J Time-Delay Dual-Element
Part Number: LPJ-100SP
Quick Summary
The Eaton LPJ-100SP fuse protects industrial control circuits with time-delay, dual-element current limiting in power-distribution panels. A common pain point is nuisance trips during motor startup or brief fault currents, which can halt production. RoHS compliant Class J designation supports sustainable assembly practices, while the series' interrupting ratings toward 300 kA at 600 VAC and 100 kA at 300 VDC reinforce safety. In practice, the LPJ-100SP helps improve panel reliability and uptime by combining fast response with selective protection for downstream devices. Manufacturers benefit from compact 1x1 in footprint and RoHS compliance when standardizing parts across sites. Its 1 in length, width, and height makes it straightforward to drop into existing Class J fuse holders without rearranging panel layouts.
Product Information
Extended Description
LPJ-100SP Eaton: Eaton Bussmann series LPJ fuse, Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 100 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-100SP
UPC
051712523400
Product Length/Depth
1 in
Product Height
1 in
Product Width
1 in
Product Weight
1 lb
Compliances
RoHS Compliant
Class
Class J
Bussmann series Class J Low-Peak fuse 70-600A data sheet No. 1007
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Feature → Business Impact → Application: The LPJ-100SP uses time-delay, dual-element current limiting to tolerate motor inrush while preventing catastrophic faults, reducing downtime and extending equipment life in motor control centers. This translates to lower maintenance costs and safer panel enclosures in high-current environments such as packaging lines and material-handling systems. Application-wise, it fits standard Class J fuse blocks and Bussmann LPJ devices, enabling straightforward retrofits and consistent stocking across facilities. The RoHS compliant design supports sustainable manufacturing practices and simplifies procurement for globally distributed sites. Compatibility with 1 in x 1 in footprints streamlines panel redesigns and minimizes cabinet rework during upgrades or expansions. A common objection—device coordination—is addressed by its explicit current rating of 100 A and high interrupting capacity, which preserves upstream protection margins while delivering selective protection downstream.
