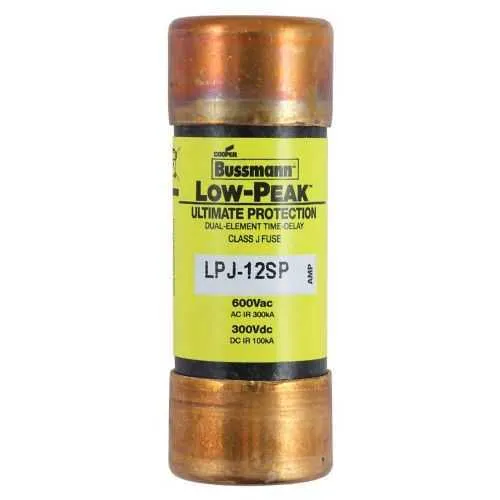

Eaton LPJ-12SP Fuse - Class J Time-Delay, 300kA CE RoHS
Part Number: LPJ-12SP
Quick Summary
LPJ-12SP is a Class J time-delay fuse for motor protection and power control in industrial panels. This solution minimizes nuisance trips during motor start-up while preserving robust fault protection. CE marking and RoHS compliance support global manufacturing and regulatory requirements, backed by a 300 kAIC interrupt rating at 600 VAC and 100 kAIC at 300 VDC. With dual-element current-limiting action, it safeguards conductors and drives without sacrificing performance. Its compact ferrule-end design fits standard enclosures and enables straightforward installation in Bussmann LPJ series applications, delivering reliable protection in control cabinets and equipment rooms.
Product Information
Extended Description
LPJ-12SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 12 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-12SP
UPC
051712522748
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
12 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Indicating, High in-rush current motor protection
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Feature → Business Impact → Application: Time-delay, dual-element design provides controlled response to inrush, reducing nuisance tripping and improving overall equipment uptime in pump and conveyor circuits. This leads to lower maintenance costs and higher line availability in manufacturing lines. Application: ideal for motor-driven loads in automation panels where start-up surges can trip fast fuses, yet reliable protection is essential for motors and drives.
Get a Quick Quote for a Eaton LPJ-12SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-12SP?
Enquire Now
FAQs
To install LPJ-12SP, ensure the panel is de-energized and space the ferrule ends to fit standard bus bars or fuse clips. Verify the ferrule-end x ferrule-end configuration, align with the circuit protection scheme, and secure with appropriate clamps. Check that the 2.25 in length fits your enclosure depth and that wiring gauge adheres to the 12 A rating for safe operation.
LPJ-12SP is a 12 A Class J time-delay fuse with dual-element current-limiting. It is rated for 600 VAC and 300 VDC, with a 300 kAIC interrupt rating at 600 VAC and 100 kAIC at 300 VDC. The response time is 10 seconds at 500% overload, providing protection for motors while tolerating inrush; connections are ferrule-end x ferrule-end.
Yes. The LPJ-12SP combines time-delay behavior with current-limiting dual elements, allowing it to endure motor start-up surges while limiting damage from short-circuit faults. This makes it well-suited for motor drives, conveyors, and other equipment with brief inrush spikes, reducing unnecessary shutdowns without compromising safety.
LPJ-12SP is CE marked and RoHS compliant, ensuring conformity with European regulatory requirements and electronics recycling standards. This combination supports global deployment in industrial automation projects and helps meet procurement standards for regulated environments.
The LPJ-12SP’s dual-element design reduces nuisance trips, lowering unplanned downtime and maintenance costs. Its compact form factor and ferrule-end connections simplify installation and replacement in established fuse blocks, enabling predictable lifecycle costs and a quick return on investment through improved system reliability.
