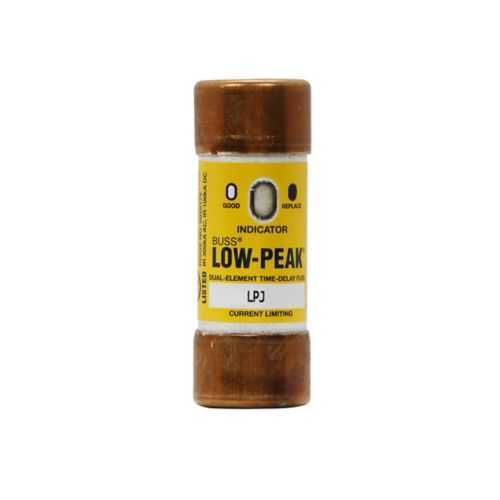

Eaton LPJ-17-1/2SPI Fuse - 300 kAIC @ 600V Class J
Part Number: LPJ-17-1/2SPI
Quick Summary
Eaton LPJ fuse provides time-delay, dual-element current-limiting protection for motors in industrial control panels. In demanding automation environments, nuisance trips and unnecessary downtime can derail production schedules. It is CE marked and RoHS compliant, aligning with European safety directives and environmental standards. With Class J designation and a 300 kAIC interrupt rating at 600 V, it supports reliable motor protection while offering compact, ferrule-end installation—ideal for low-voltage branch circuits and standardized protection across automation lines.
Product Information
Extended Description
LPJ-17-1/2SPI Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 17.5 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-17-1/2SPI
UPC
051712626323
EAN
5027590245364
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.108 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
17.5 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Special features
Non-indicating, High in-rush current motor protection
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Time-delay, dual-element current-limiting design reduces nuisance trips by tolerating motor inrush while still delivering fast fault interruption, decreasing unplanned downtime and maintenance costs in motor-driven applications. This results in improved equipment availability and predictable protection in conveyors, pumps, and presses. Its 17.5 A rating and 600 Vac operating voltage cover common motor control scenarios in automated lines, enabling safer, reusable protection across multiple panels. The 300 kAIC interrupt rating at 600 Vac provides robust short-circuit protection in high-current fault conditions, supporting safer panel designs and regulatory compliance. Ferrule-end connections simplify field installation and ensure reliable contact integrity, while compact dimensions (2.25 in length, 0.81 in width and height) assist in tight control cabinet layouts. The unit’s Class J, time-delay, dual-element construction is compatible with low-voltage branch circuit fuses and motor protection schemes, reducing total cost of ownership. Its RoHS and CE compliance further support European manufacturing requirements and environmental responsibility.
Get a Quick Quote for a Eaton LPJ-17-1/2SPI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-17-1/2SPI?
Enquire Now
FAQs
The LPJ-17-1/2SPI uses ferrule-end connections and is designed for low-voltage branch circuits in motor control panels. It supports Class J protection with a 17.5 A rating and a 600 Vac maximum, making it suitable for standard motor drives, conveyors, and line-start equipment within automation configurations.
The time-delay aspect tolerates inrush currents common to motors while still limiting fault current, reducing nuisance trips during startup. The dual-element design speeds interruption of actual faults, which minimizes unplanned downtime and extends equipment life by preventing cascading faults in drives and power distribution networks.
Yes. The LPJ-17-1/2SPI is CE marked and RoHS compliant, ensuring compliance with European safety directives and environmental standards. This supports straightforward integration into European manufacturing lines and reduces compliance risk for regulated facilities.
Ideal applications include motor protection in control panels, drive systems, and power distribution within manufacturing and processing facilities. Its Class J rating, 600 Vac operation, and 300 kAIC interrupt capacity make it suitable for moderate to high fault currents in automated lines, while its ferrule ends ease field and panel mounting.
The LPJ-17-1/2SPI provides predictable protection with reduced nuisance trips, leading to lower maintenance windows and higher line availability. Its robust interrupt rating and compliance features support longer service intervals, standardized spares, and streamlined procurement, delivering total cost of ownership savings across automation projects.
