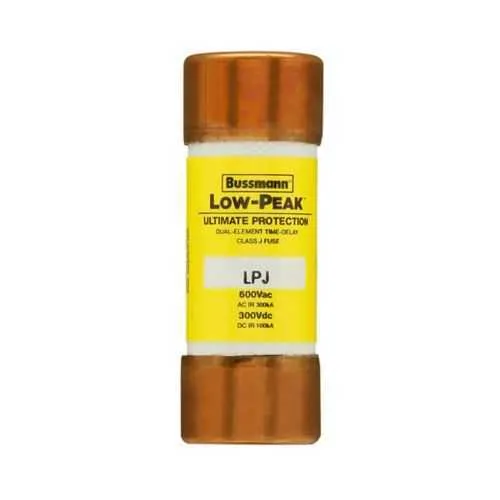

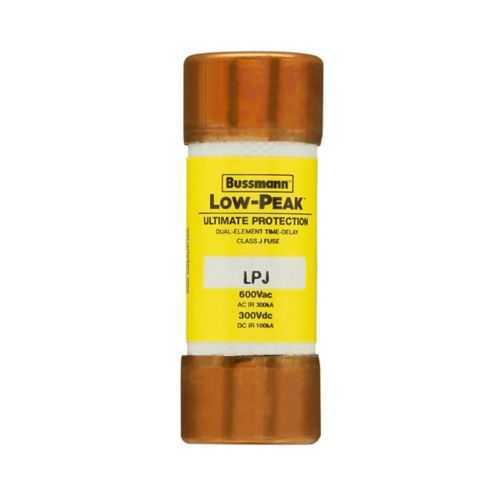

Eaton LPJ-2-1/2SP Fuse - Class J Time-Delay Current-Limiting
Part Number: LPJ-2-1/2SP
Quick Summary
The Eaton LPJ-2-1/2SP fuse provides time-delay protection for motors and control circuits in industrial gear. Engineers often battle nuisance trips and mis-specified protection that leads to motor damage and downtime. CE marking and RoHS compliance, together with Class J and a dual-element current-limiting design, deliver reliable, safe operation. This fuse streamlines protection in panel builds and reduces total cost of ownership, with compatibility for ferrule-term connections and standard packaging. Designed for control panels, motor starters, and in-line circuits, it accepts 2.5 A loads at 600 Vac and handles peak current surges with time-delay protection.
Product Information
Extended Description
LPJ-2-1/2SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 2.5 A, nnon-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-2-1/2SP
UPC
051712522717
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
2.5 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Indicating, High in-rush current motor protection
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Feature → Time-delay, dual-element current-limiting design delivers selective protection and smoother motor starting. Business Impact → Reduces nuisance trips during startup and limits fault current to protect feeders and drives. Application → Ideal for motor protection in pumps, fans, conveyors, and machine tools. Feature → High interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc. Business Impact → Robust fault handling minimizes cascading failures and downtime in critical power paths. Application → Suitable for heavy-duty industrial feeders and drive circuits. Feature → Ferrule end x ferrule end connections with standard packaging. Business Impact → Easy installation and quick field replacement, lowering labor costs. Application → Fits common panel schedules and retrofit projects. Feature → CE Marked and RoHS compliant. Business Impact → Eases regulatory approvals and environmental compliance. Application → Compliance-driven projects in manufacturing floors and control cabinets. Feature → Non-indicating fuse with special feature of high in-rush current motor protection. Business Impact → Simplifies wiring, reduces false indicators, and preserves motor performance during startup. Application → Motor control centers, contactor circuits, and impact-prone drives.
Get a Quick Quote for a Eaton LPJ-2-1/2SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-2-1/2SP?
Enquire Now
FAQs
Install the LPJ-2-1/2SP with ferrule end terminations for quick, secure connections. Confirm the circuit is within the 2.5 A rating and 600 Vac voltage range. Use proper panel mounting practices and ensure compatible bus bar spacing to prevent overheating. The dual-element design supports reliable protection in motor control centers and inline circuits.
The time-delay, dual-element current-limiting design accommodates motor inrush without nuisance tripping, while providing fast interruption for faults. This enables smoother motor start-up, protects winding insulation, and reduces wear on contactors, delivering improved motor life and reduced downtime in conveyors, pumps, and fans.
Yes. The LPJ-2-1/2SP fuse is CE marked and RoHS compliant, aligning with regulatory requirements for European setups and environmentally responsible manufacturing. This simplifies compliance documentation for panel builds and helps with supplier qualification processes in regulated industries.
LPJ-2-1/2SP offers 300 kAIC interrupt rating at 600 Vac and 100 kAIC at 300 Vdc, with an amperage rating of 2.5 A and voltage ratings of 600 Vac / 300 Vdc. It uses a time-delay, current-limiting design and features dual elements for reliable fault interruption in demanding electrical protection schemes.
With a compact 0.1 lb weight and standard packaging, replacement and stocking are straightforward, reducing downtime during maintenance. The 2.5 A rating plus high interrupt capability supports longer motor life and fewer nuisance trips, delivering lower total cost of ownership in production lines and automated systems.
