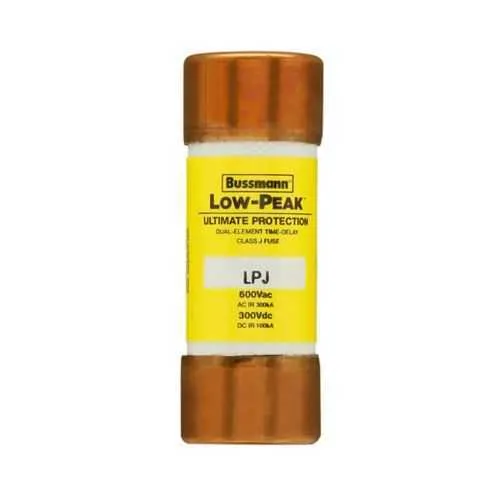

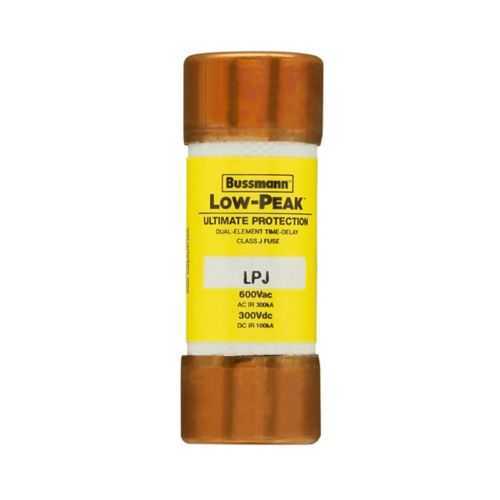

Eaton LPJ-2-1/4SP Fuse - Class J, CE RoHS Compliant
Part Number: LPJ-2-1/4SP
Quick Summary
The Eaton LPJ-2-1/4SP fuse provides time-delay protection for motor starters and power circuits. Nuisance trips during inrush or mis-specified protection can drive uptime losses and maintenance costs, so reliable coordination matters. With CE marking and RoHS compliance, this Class J fuse aligns with regulatory and environmental requirements, while its dual-element current-limiting design delivers dependable motor protection. Its compact footprint, non-indicating status, and high in-rush protection help reduce spare parts and simplify service life. Designed for industrial environments, it supports predictable performance across motor control and power-distribution panels.
Product Information
Extended Description
LPJ-2-1/4SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 2.25 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-2-1/4SP
UPC
051712522700
EAN
5027590447966
Product Length/Depth
0.81 in
Product Height
2.25 in
Product Width
0.81 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
2.25 A
Interrupt rating
100 kAIC Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating, High in-rush current motor protection
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Feature: Time-delay, dual-element current-limiting design. Benefit: Enables safe handling of motor inrush and short-term overloads without sacrificing protection, reducing nuisance trips and extending equipment life. Application: Suitable for motor starters, conveyors, and pump circuits where inrush is expected. Feature: Electrical ratings of 2.25 A, 600 Vac, and 300 Vdc. Benefit: Clear, deterministic protection for control circuits and small drives, simplifying selectivity and replacement planning. Application: Control panel feeders and branch circuits in industrial automation environments. Feature: High interrupt ratings (300 kAIC at 600 Vac; 100 kAIC at 300 Vdc). Benefit: Robust fault clearance with minimal collateral damage, improving system reliability. Application: Main distribution panels and motor control centers. Feature: Non-indicating, ferrule-end connections, standard packaging. Benefit: Quick visual inspection is minimized while maintenance remains straightforward; compatible with common switching and termination practices. Application: Standard vaults, panel rails, and field replacements in OEM and retrofit projects. Feature: Compliance and features (CE Marked, RoHS Compliant; Class J). Benefit: Regulatory alignment and reduced hazardous waste concerns while delivering proven protection against motor-driven loads. Application: Industrial equipment across manufacturing lines and process control systems.
Get a Quick Quote for a Eaton LPJ-2-1/4SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-2-1/4SP?
Enquire Now
FAQs
LPJ-2-1/4SP uses ferrule-end connections and a compact footprint, making it readily interchangeable with standard Class J fuses in motor starter panels. The 0.81 in length and 0.81 in width fit typical DIN-rail and cabinet layouts, while the 2.25 A rating suits small to medium motor control loads. This facilitates quick swaps during maintenance and retrofit projects without voltage or wiring rework.
The fuse features time-delay operation and a dual-element current-limiting design, which accommodates motor inrush without triggering unnecessary trips. It preserves circuit protection while allowing accelerated equipment startup, reducing downtime due to fuse nuisance trips in applications such as pumps, fans, and conveyors.
This LPJ fuse is CE Marked and RoHS Compliant, signaling adherence to European electrical standards and restricted hazardous substances. For manufacturers, this simplifies regulatory approvals and supports sustainability goals, while end users benefit from compatible, compliant equipment across global installations.
The LPJ-2-1/4SP is rated at 2.25 A with voltage ratings of 600 Vac and 300 Vdc. It provides an interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, ensuring robust fault clearance for motor control circuits and power distribution panels in harsh industrial environments.
Using LPJ fuses reduces downtime from nuisance trips thanks to its time-delay, dual-element design, while its non-indicating status minimizes false indicators during inspections. The standard ferrule-end construction and compact size ease replacements and stock management, delivering lower maintenance costs and predictable ROI in motor protection schemes.
