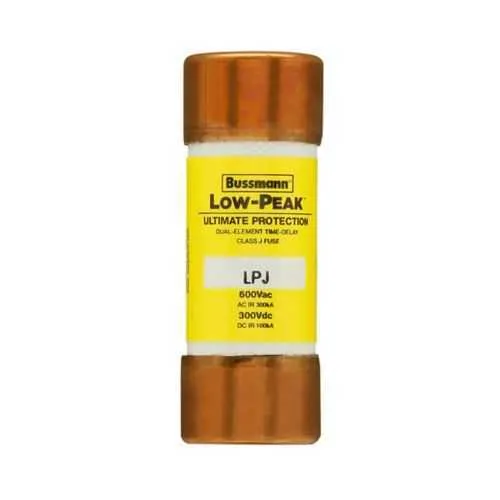

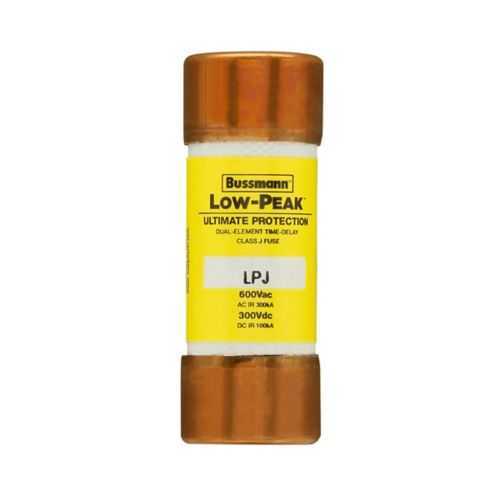

Eaton LPJ-2-8/10SP Fuse - Class J, 600 Vac, Time-delay
Part Number: LPJ-2-8/10SP
Quick Summary
The LPJ-2-8/10SP fuse by Eaton provides time-delay motor protection for demanding drive applications. A common pain point is nuisance trips during motor startup and inrush, which lead to unplanned downtime and lost productivity. This device carries CE-marking and RoHS-compliance, aligning with European regulatory standards and supplier quality expectations; Class J compatibility ensures easy field replacement and standardization across panels. For OEMs and panel builders, the fuse delivers reliable protection without complicating procurement, enabling consistent spares, faster maintenance, and safer equipment operation. By guarding motors against overload while tolerating short surges, it minimizes downtime and extends equipment life. Designed for control panels, drives, and distribution boards, it fits standard Bussmann LPJ families for easy stocking.
Product Information
Extended Description
LPJ-2-8/10SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 2.8 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-2-8/10SP
UPC
051712522724
EAN
5027590406789
Product Length/Depth
0.81 in
Product Height
2.25 in
Product Width
0.81 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
2.8A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating, High in-rush current motor protection
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Feature time-delay dual-element current-limiting design → Business impact protects motors through inrush and surge events while maintaining high fault protection, reducing nuisance trips and downtime. Application suitable for motor starters in conveyors, pumps, and HVAC drives. Feature high interrupt ratings of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc → Business impact enables safe interruption of severe faults in heavy machinery, supporting selective coordination with upstream protection. Application in motor control centers and power distribution with reliable fault handling. Feature ferrule-end connections → Business impact delivers secure, vibration-resistant terminations and quick replacement within existing LPJ Bussmann layouts. Application across control panels and retrofit projects for rapid maintenance. Feature non-indicating form factor and Class J classification → Business impact minimizes routine checks while ensuring compatibility with standard industrial fuse holders. Application in dense control panels where space and standardization matter. Feature CE Marked and RoHS compliant → Business impact ensures regulatory compliance and supply chain assurance. Application across EU-based systems and global deployments. Feature documentation and compatibility with Bussmann full-line catalogs → Business impact streamlines procurement and reduces stocking complexity. Application across global manufacturing and repair operations.
Get a Quick Quote for a Eaton LPJ-2-8/10SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-2-8/10SP?
Enquire Now
FAQs
To install, power down the system and remove existing fuses if present. Insert the LPJ-2-8/10SP so that ferrule ends seat fully in compatible fuse holders, ensuring clean contact surfaces. Secure connections with appropriate tightening per panel standards, and verify the ferrule ends are not deformed after installation. After installation, perform a functional check to confirm proper circuit protection and absence of nuisance trips during controlled inrush scenarios.
This fuse is designed for motor protection in control panels, motor starters, and power distribution circuits. Its time-delay, dual-element design tolerates startup surges while providing strong fault interruption, making it ideal for conveyors, pumps, HVAC drives, and other equipment with high inrush currents.
The LPJ-2-8/10SP has a 2.8A amperage rating with voltage ratings of 600 Vac and 300 Vdc. It provides an interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, enabling safe fault interruption in high-energy circuits and helping prevent collateral damage in switching events.
Yes. The LPJ-2-8/10SP is CE marked and RoHS compliant, supporting European regulatory compliance and environmentally responsible manufacturing. This makes it suitable for EU-based equipment, as well as global deployments requiring RoHS certification.
Expect reduced downtime due to lower nuisance trips during motor startups, improved motor protection against overloads, and easier replaceability through Class J compatibility. The high interrupt rating also supports selective coordination with upstream devices, potentially lowering investment in over-sized upstream protection and simplifying maintenance planning.
