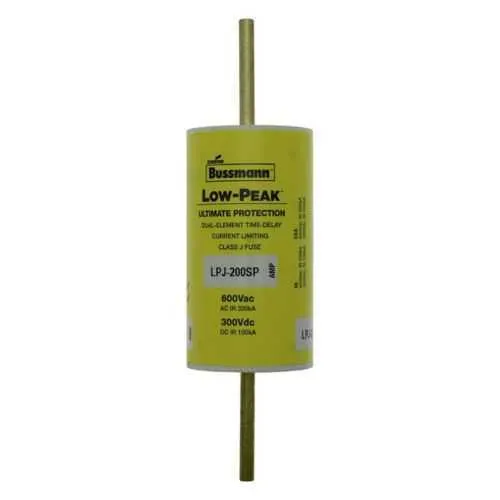

Eaton LPJ-200SP Fuse - Class J Time-Delay, 200 A, 300 kAIC
Part Number: LPJ-200SP
Quick Summary
The Eaton LPJ-200SP fuse protects motor control circuits in industrial equipment. Inrush currents can trigger nuisance trips that disrupt production; this time-delay design helps keep lines running. It carries CE marking and RoHS compliance to support global deployments, while the Class J, dual-element construction provides reliable current-limiting protection for demanding loads. For engineers and procurement teams, it pairs with standard Bussmann Series Class J devices, offering easy bolted-end installation and predictable performance, translating to improved uptime and lower maintenance costs across manufacturing or process facilities. This makes it a robust choice for motor drives, pumps, fans, and conveyors where reliability and fast fault isolation matter.
Product Information
Extended Description
LPJ-200SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 200 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-200SP
UPC
051712523455
Product Length/Depth
5.75 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.75 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
200 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating
Special features
Non-indicating, High in-rush current motor protection
Bussmann series Class J Low-Peak fuse 70-600A data sheet No. 1007
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Feature: Time-delay dual-element current-limiting design. Benefit: Allows motor-start and inrush currents to flow without unnecessary tripping, reducing downtime and extending equipment life. Application: motor starters, conveyors and pumps in manufacturing environments. Feature: 200 A amperage with a 300 kAIC interrupt rating at 600 Vac (and 100 kAIC at 300 Vdc). Benefit: High fault-current tolerance protects wiring and components while maintaining selective coordination; Application: industrial power distribution and drive systems with high fault-current potential. Feature: Non-indicating fuse with bolted blade ends and Class J construction. Benefit: Reliable protection with straightforward installation and easy field replacement; Application: panel boards and control cabinets using standard Bussmann Series devices. Feature: CE Marking and RoHS compliance. Benefit: Meets global regulatory requirements for international deployments, reducing compliance risk; Application: global manufacturing and multi-site installations. Feature: Compact 5.75 in length and 1.5 x 1.5 in profile with 0.75 lb weight. Benefit: Easy integration into crowded enclosures and standardized mounting; Application: low-voltage branch circuits inside compact electrical panels. Feature: Special features include high in-rush motor protection. Benefit: Protects critical motors from short-duration surges while maintaining continuity; Application: motors in fans, pumps, and material-handling equipment.
