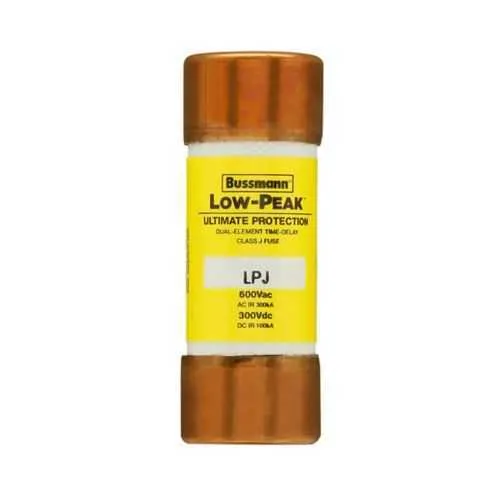

Eaton LPJ-3-2/10SP Fuse - Class J, 300 kAIC at 600 Vac
Part Number: LPJ-3-2/10SP
Quick Summary
Eaton LPJ-3-2/10SP fuse protects motors and power circuits in industrial panels. Users often grapple with nuisance trips during motor start-up and inrush events, which disrupt production. This CE Marked and RoHS compliant Class J time-delay fuse is designed for dual-element current-limiting protection, delivering reliable performance in harsh environments. The solution offers compact, ferrule-end wiring compatibility and a standard packaging footprint, helping you streamline panel design and maintenance while meeting strict safety and environmental requirements.
Product Information
Extended Description
LPJ-3-2/10SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 3.2 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-3-2/10SP
UPC
051712522731
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
3.2 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Indicating, High in-rush current motor protection
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Feature: Time-delay, dual-element current-limiting design. Business Impact: Reduces nuisance tripping during motor startups and high-inrush events, improving line uptime. Application: Motor starters and conveyors in machine control panels. Feature: 3.2 A rating with 600 Vac and 300 Vdc voltage ratings. Business Impact: Clear, predictable protection for low-voltage circuits with wide operating voltage windows. Application: Industrial control panels, drives, and power distribution. Feature: 300 kAIC interrupt rating at 600 Vac; 100 kAIC at 300 Vdc. Business Impact: Strong fault-current protection that minimizes equipment damage. Application: High inrush environments and heavy-load drives. Feature: Class J, ferrule-end connections, standard packaging. Business Impact: Easy integration with common bussing and wiring practices, reducing installation time. Application: Replacement in legacy fixtures and new panel builds. Feature: Non-indicating indicator with special features including high in-rush motor protection. Business Impact: Simplified maintenance with robust protection against motor faults. Application: Industrial motors, pumps, and fans in line with RoHS/CE compliance.
Get a Quick Quote for a Eaton LPJ-3-2/10SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-3-2/10SP?
Enquire Now
FAQs
For reliable integration, use ferrule-end connections on standard terminals and ensure the fuse fits a compatible Class J holder. Verify the panel layout supports 2.25 in length and 0.81 in width, with adequate clearance for heat dissipation. Confirm that wiring polarity and conductor sizing meet the 3.2 A rating and the RoHS/CE requirements.
The fuse provides a 3.2 A amperage rating with 600 Vac and 300 Vdc voltage ratings, and a 300 kAIC interrupt rating at 600 Vac plus 100 kAIC at 300 Vdc. Its time-delay, dual-element design tolerates motor inrush while rapidly interrupting faults, delivering selective protection for low-voltage motor circuits.
Yes, the LPJ-3-2/10SP supports motor protection in多数 AC drive applications due to its time-delay characteristic and high inrush tolerance. However, ensure coordination with drive protections and consider phase current profiles to prevent nuisance trips while maintaining safe shutdown in fault conditions.
The LPJ-3-2/10SP is CE marked and RoHS compliant, aligning with European regulatory requirements for electrical products. These certifications support compliance in industrial panels and assemblies, helping you meet safety, environmental, and import/export standards across multiple regions.
The dual-element current-limiting design minimizes nuisance trips during motor start-up, reducing unplanned downtime. Its robust interrupt rating protects downstream equipment, potentially lowering repair costs. With standard packaging and ferrule ends, field replacement is straightforward, supporting lower maintenance labor and faster line recovery after fault events.
