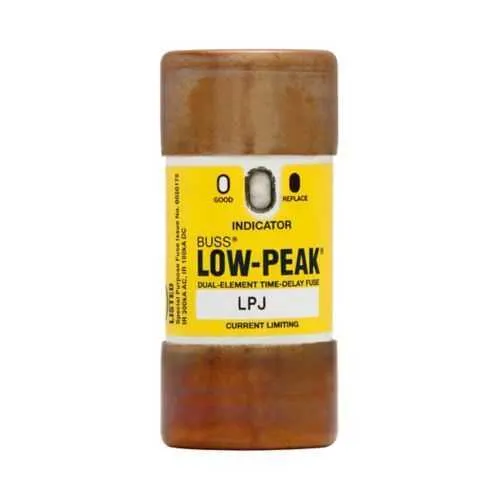

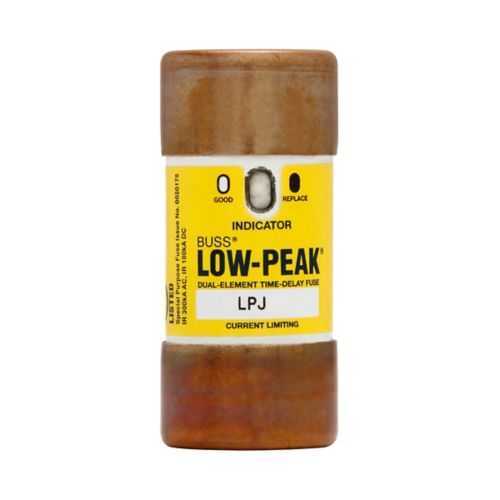

Eaton LPJ-35SPI Fuse - Class J Time-Delay, 600 Vac, 300 kAIC
Part Number: LPJ-35SPI
Quick Summary
The Eaton LPJ-35SPI fuse protects motor drives and control panels from overcurrent with reliable, time-delay protection. Users often face nuisance trips during motor startup and high inrush, leading to unexpected downtime and maintenance costs. CE marked and RoHS compliant, this Class J, dual-element current-limiting device delivers robust protection at 600 Vac with a 300 kAIC interrupt rating, while supporting easy integration into standard control architectures. Built for industrial protection, it aligns with ferrule-end connections and offers indicating or non-indicating options, helping you optimize reliability and total cost of ownership across motor control centers and drive assemblies.
Product Information
Extended Description
LPJ-35SPI Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 35 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-35SPI
UPC
051712626361
Product Length/Depth
2.38 in
Product Height
1 in
Product Width
1 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
35 A
Interrupt rating
100 kAIC Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Special features
Indicating, High in-rush current motor protection
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Feature → Business Impact → Application: Time-delay, dual-element current-limiting design minimizes nuisance trips during startup and inrush events, reducing unplanned downtime and extending equipment life in fan, pump, and conveyor drives. This improves system availability and lowers maintenance costs in harsh industrial environments. Feature → Business Impact → Application: 35 A rating at 600 Vac with a 300 kAIC interrupt capability delivers decisive protection for medium-length motor circuits and switchgear, enabling safer fault clearance and reduced panel damage in CNC machines and packaging lines. Feature → Business Impact → Application: Class J construction with ferrule-end connections provides robust, field-friendly installation compatibility, enabling quick swaps in retrofit projects and new builds without rewiring. Feature → Business Impact → Application: Indicating option supports fast fuse status monitoring in control schemes, improving maintenance planning and asset health visibility in centralized SCADA environments. Feature → Business Impact → Application: RoHS and CE compliance ensures regulatory alignment for European facilities, allowing cross-border procurement and supplier standardization across multi-site operations.
Get a Quick Quote for a Eaton LPJ-35SPI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-35SPI?
Enquire Now
FAQs
Install the LPJ-35SPI using standard ferrule-end connections, ensuring the fuseholder aligns with Class J mounting guidelines. Verify the circuit is de-energized, insert the dual-element, current-limiting device with correct polarity, and confirm the indicating or non-indicating option chosen matches your control scheme. The 2.38 in length, 1 in height, and 1 in width fit common fuse blocks, facilitating quick retrofits or new panel builds.
The LPJ-35SPI combines time-delay operation with dual-element current-limiting, enabling controlled response during startup transients while still interrupting faults quickly. This reduces nuisance trips and protects motors against overcurrent without sacrificing startup performance, making it ideal for drives, conveyors, and pump applications where high inrush is common.
Yes. The LPJ-35SPI is CE marked and RoHS compliant, ensuring it meets European regulatory requirements for environmental and safety standards. This compatibility supports compliant procurement and installation across European facilities and aligns with multi-site engineering specifications.
A 300 kAIC interrupt rating indicates the fuse can interrupt extremely high fault currents without sustaining damage, protecting downstream equipment and improving safety during short-circuit events. This is particularly important in power-heavy motor circuits and switchgear where fault levels can spike rapidly.
Choose the LPJ-35SPI with the appropriate end configuration (ferrule end x ferrule end) and indicator preference to suit your monitoring needs. Pair it with compatible Bussmann LPJ data sheets and catalogs for proper coordination with upstream protection devices, enabling faster maintenance, reduced stocking complexity, and lower total cost of ownership across fleets.
