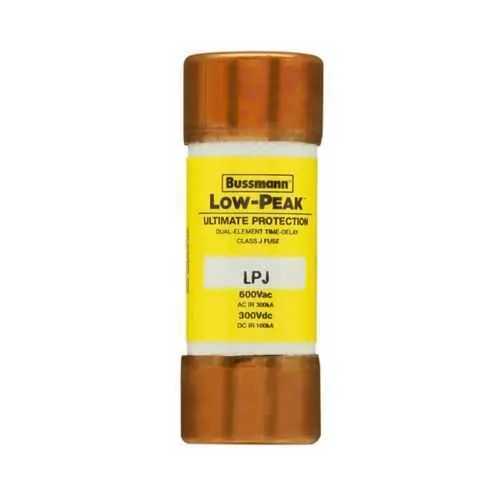

Eaton LPJ-5SP Fuse - Class J Time-Delay, Dual-Element
Part Number: LPJ-5SP
Quick Summary
The Eaton LPJ-5SP fuse delivers time-delay protection for motor circuits and control panels. Engineers often face nuisance trips during motor start-up and limited replacement options in compact enclosures. Built as CE marked and RoHS compliant with Class J construction, it also features dual-element protection for reliability. Non-indicating by design, it is ideal where footprint and serviceability matter, while ferrule-end connections simplify installation in panelboards. In broader terms, the 5 A rating, 600 VAC operation, and 300 kAIC interrupt rating support regulatory compliance and system uptime, making it a dependable choice for industrial protection across motor-driven applications.
Product Information
Extended Description
LPJ-5SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 5 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-5SP
UPC
051712522823
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
5 A
Interrupt rating
100 kAIC Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating, High in-rush current motor protection
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Feature: Time-delay, dual-element current-limiting design. Business impact: Handles motor inrush without nuisance tripping while limiting fault current, reducing downtime and extending component life. Application: Protects driven equipment in industrial control panels and motor starters. Feature: Class J construction with non-indicating status. Business impact: Meets common industry standards without visual indicators, saving panel space and simplifying procurement. Application: Typical in compact enclosures where remote status is tracked by other diagnostics. Feature: 600 VAC / 300 VDC voltage rating with 5 A rating. Business impact: Suitable for mixed AC/DC systems, enabling a single protection strategy across equipment. Application: Industrial drives and control circuits requiring robust protection. Feature: High interrupt ratings of 300 kAIC at 600 VAC and 100 kAIC at 300 VDC. Business impact: Provides margin for short-circuit events, enhancing system resilience and safety. Application: Large motor feeders and high-inrush service feeders. Feature: Ferrule end x ferrule end termination and standard packaging. Business impact: Quick, repeatable installation with reliable mechanical contact and easy replacement. Application: Serviceable in retrofit projects and new builds alike. Feature: Compliance and documentation options (CE, RoHS, datasheets). Business impact: Ensures regulatory alignment and trusted sourcing, aiding audits and supplier qualification. Application: Aerospace, automotive-adjacent, and general industrial environments where traceability matters.
Get a Quick Quote for a Eaton LPJ-5SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-5SP?
Enquire Now
FAQs
The LPJ-5SP uses ferrule end x ferrule end connections, with a compact footprint (2.25 in length, 0.81 in height and width) and standard packaging. This supports straightforward drop-in replacement in panels and minimizes rework during installation.
Key specs include 5 A amperage rating, 600 VAC voltage rating, 300 kAIC interrupt rating at 600 VAC, 100 kAIC at 300 VDC,and a 10 second response time at 500% overload. The fuse is time-delay and dual-element, designed for high inrush motor protection.
Yes. The LPJ-5SP is a Class J, time-delay, dual-element current-limiting fuse with high interrupt ratings, making it well-suited for motor protection in industrial control panels and drive applications where inrush is expected.
The LPJ-5SP is CE marked and RoHS compliant, aligning with European regulatory requirements and supporting sustainable, compliant sourcing across global production environments.
Technical data and installation guidance are available in the Bussmann LPJ data sheet No. 1006 and related catalog PDFs. For quick reference, review the LPJ-5SP details, compatibility notes, and the standard Bussmann Full Line Catalogs.
