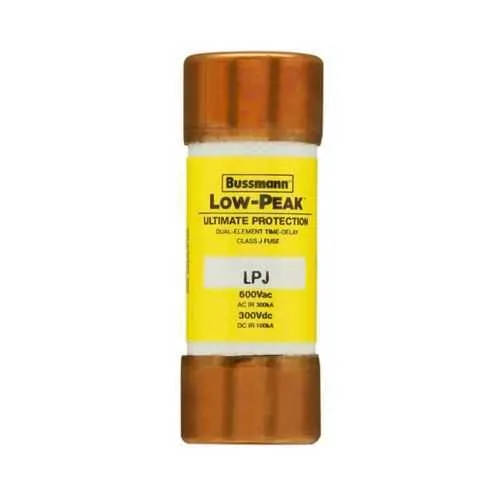

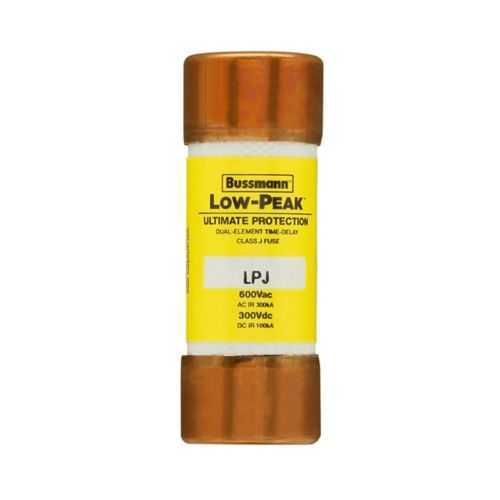

Eaton LPJ-7SP Fuse - Class J Time-Delay, 300 kAIC
Part Number: LPJ-7SP
Quick Summary
Eaton LPJ-7SP fuse provides fast time-delay protection for electrical systems in industrial drives and motor circuits. This design reduces nuisance trips during motor starts and inrush events that can derail production schedules. CE marking and RoHS compliance help meet global safety and environmental standards, easing cross-border deployment. The Class J, dual-element current-limiting construction delivers reliable fault protection without false alarms, while ferrule end connections simplify installation in existing Bussmann-series panels. The compact form factor fits crowded control panels, reduces wiring complexity, and supports standard packaging for easy stocking. With a non-indicating indicator and high interrupt capability, the LPJ-7SP helps extend equipment life, lower maintenance costs, and improve overall line reliability.
Product Information
Extended Description
LPJ-7SP Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 7 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-7SP
UPC
051712523462
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
7 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating, High in-rush current motor protection
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series LPJ Low-Peak 1-60A data sheet No. 1006
Time-delay, dual-element current-limiting design delivers inrush tolerance and dependable fault protection, reducing nuisance trips and protecting motors, drives, and associated circuitry in conveyors and pumps. This translates to meaningful uptime gains and longer equipment life, while enabling predictable startup sequences and safer electrical environments. Class J construction and ferrule-end terminations simplify panel integration in standard control architectures, lowering installation risk and speeding commissioning in retrofit projects. The fuse’s non-indicating style minimizes panel clutter and avoids unnecessary visual indicators, helping technicians focus on critical diagnostics. With a 300 kAIC interrupt rating at 600 Vac and 100 kAIC at 300 Vdc, the LPJ-7SP provides robust fault clearing for power distribution and machine control across harsh industrial environments. The compact 2.25 in length and 0.81 in square footprint support dense panel layouts, enabling cost-efficient protection at the point of use. CE and RoHS compliance ensure global applicability and supply-chain confidence for OEMs and MROs alike.
