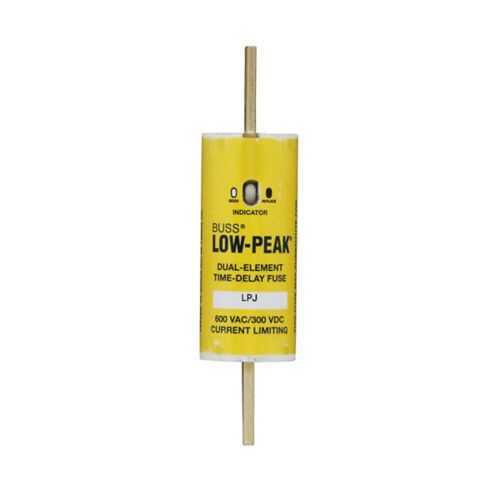

Eaton LPJ-90SPI Fuse - Class J, 600 Vac
Part Number: LPJ-90SPI
Quick Summary
Eaton LPJ-90SPI fuse provides time-delay, dual-element current-limiting protection for motor drives and control panels. This helps prevent nuisance trips and unplanned downtime that disrupt project schedules and increase maintenance costs. CE marking and RoHS compliance address global regulatory requirements while the Class J timing and high interrupt ratings offer reliable protection in demanding start-up sequences. With a compact footprint and bolted blade-end connections, the LPJ-90SPI integrates smoothly into standard enclosures and across multi-site installations. For procurement teams, it delivers installation efficiency, consistent performance, and reduced lifecycle costs by guarding critical motors and loads without sacrificing speed of protection.
Product Information
Extended Description
LPJ-90SPI Eaton: Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 90 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
Product Name
Eaton Bussmann series LPJ fuse
Catalog Number
LPJ-90SPI
UPC
051712627535
Product Length/Depth
4.63 in
Product Height
1.13 in
Product Width
1.13 in
Product Weight
0.3 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
90 A
Interrupt rating
100 kAIC Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class J
Connection
Bolted blade end x bolted blade end
Fuse indicator
Non-indicating With Indicator
Special features
Non-indicating, High in-rush current motor protection
Bussmann series Class J Low-Peak fuse 70-600A data sheet No. 1007
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Feature: Time-delay, dual-element current-limiting design provides stable protection during motor startup and high inrush events → Business Impact: Reduces nuisance trips and equipment wear, extending motor life and decreasing maintenance costs → Application: Motor drives, conveyors, pumps in manufacturing and process environments. Feature: High interrupt rating of up to 300 kAIC at 600 Vac ensures strong short-circuit withstand capability → Business Impact: Improves system reliability and protects upstream breakers and panels from damaging faults → Application: Power distribution feeders and large-capacity drives in industrial facilities. Feature: Class J fuse with bolted blade-end connections and a compact 4.63 in length × 1.13 in height × 1.13 in width profile → Business Impact: Simplifies panel integration, reduces installation time, and enables standardized stocking across sites → Application: Control panels and equipment enclosures requiring dependable protection with easy field mounting. Feature: Compliance features including CE marking and RoHS compliance → Business Impact: Supports global regulatory alignment, enabling multinational deployments and faster time-to-market → Application: International projects and equipment destined for diverse markets. Feature: Special features listing Non-indicating version with Indicator option and high in-rush motor protection → Business Impact: Flexible selection for visibility requirements while minimizing nuisance trips in high inrush applications → Application: Motor-driven machinery with varying maintenance and monitoring needs.
Get a Quick Quote for a Eaton LPJ-90SPI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPJ-90SPI?
Enquire Now
FAQs
Yes. LPJ-90SPI uses bolted blade end x bolted blade end connections, designed for straightforward panel mounting and easy integration into standard Bussmann/Class J assemblies.
The fuse is rated for 90 A, 600 Vac (600 Volt AC) with an interrupt rating up to 300 kAIC, and it provides a 10 second response at 500% for startup transients, making it suitable for inrush-heavy motor loads.
It is recommended for motor drives, pumps, and conveyors in industrial environments where reliable inrush protection and current limiting are essential to minimize nuisance trips and protect downstream equipment.
The LPJ-90SPI is CE marked and RoHS compliant, ensuring global regulatory alignment for multinational deployments and helping with compliance reporting.
By reducing nuisance trips, providing robust motor protection, and enabling standardized installation, the LPJ-90SPI lowers downtime, extends motor life, and simplifies spare-part management across sites.
