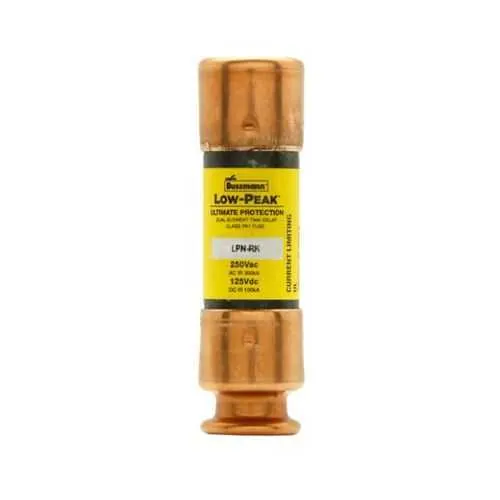

Eaton LPN-RK-6-1/4SP fuse - CE Marked, RK1 class
Part Number: LPN-RK-6-1/4SP
Quick Summary
The Eaton LPN-RK-6-1/4SP fuse provides time-delay, dual-element protection for low-voltage circuits in control panels. This helps alleviate nuisance trips and installation challenges in tight, crowded enclosures. It carries CE Marked compliance and belongs to the Class RK1 family, aligning with common industrial protection standards. The design supports quick ferrule-end terminations and high interrupt ratings, delivering reliable protection while simplifying maintenance and reducing downtime for electrical protection and circuit control applications. With a 6.25A amperage rating and a voltage rating of 250 Vac / 125 Vdc, it covers a broad range of motors and drives in industrial settings.
Product Information
Extended Description
LPN-RK-6-1/4SP Eaton: Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 6.25 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc
Product Name
Eaton Bussmann series LPN-RK fuse
Catalog Number
LPN-RK-6-1/4SP
UPC
051712538268
EAN
5027590092005
Product Length/Depth
2 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.05 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
6.25A
Interrupt rating
100 kAIC at 125 Vdc 300 kAIC at 250 Vac
Response time
8 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Electrically isolated end cap
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 250 V LPN Class RK1 time-delay fuses,1/10-60 A data sheet no. 1003
Feature: Time-delay dual-element design. Benefit: Balances fault protection with tolerance for startup surges, reducing nuisance trips and protecting sensitive loads; Application: Motor drives and power distribution where surges are common. Feature: Current-limiting capability with 6.25A rating. Benefit: Limits fault energy to protect conductors and equipment, lowering insulation stress and potential damage; Application: Control panels and branch circuits in automation environments. Feature: High interrupt ratings (100 kAIC at 125 Vdc, 300 kAIC at 250 Vac). Benefit: Enhanced safety margin in high-energy circuits, improving system reliability; Application: Industrial power distribution boards and machine controls. Feature: Ferrule end x ferrule end and electrically isolated end cap. Benefit: Fast, secure terminations with reduced touch hazards during servicing; Application: Field replacement and maintenance in dense control panels. Feature: Class RK1, non-indicating fuse, standard packaging of ten. Benefit: Industry-standard protection class with straightforward procurement and inventory management; Application: Routine stocking for OEMs and panel builders in automation facilities.
