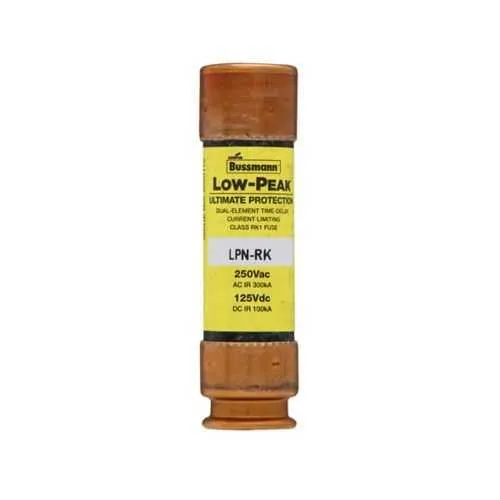

Eaton LPN-RK-60SP fuse - Class RK1, 60 A, 300 kAIC
Part Number: LPN-RK-60SP
Quick Summary
Eaton LPN-RK-60SP fuse is a Class RK1 time-delay device designed to protect industrial power circuits. This dual-element, current-limiting fuse helps prevent nuisance trips while maintaining robust protection for motors, drives, and control panels. In demanding environments, users require reliable interrupting capability and predictable timing, which this fuse delivers. With CE marking and a high 300 kAIC interrupt rating at 250 Vac (and 100 kAIC at 125 Vdc), it supports compliant, safer electrical distribution. For panel builders and maintenance teams, the LPN-RK-60SP offers straightforward installation, extended operational life, and consolidated protection in one compact package, reducing downtime and simplifying spare-part inventory. It is a prudent choice for modernizing protection schemes where performance and traceability matter most.
Product Information
Extended Description
LPN-RK-60SP Eaton: Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 60 A, non-indicating fuse, interrupting rating of 300 kA at 250 Vac and 100 kA at 125 Vdc
Product Name
Eaton Bussmann series LPN-RK fuse
Catalog Number
LPN-RK-60SP
UPC
051712538411
Product Length/Depth
3 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
1.2 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
60 A
Interrupt rating
300 kAIC at 250 Vac 100 kAIC at 125 Vdc
Response time
10 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Quantity
10
Special features
Electrically isolated end cap
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 250 V LPN Class RK1 time-delay fuses,1/10-60 A data sheet no. 1003
Feature → Business Impact → Application: Time-delay dual-element design reduces nuisance trips during motor startup, improving line uptime and production throughput in automation panels. This current-limiting behavior enhances equipment protection without compromising availability, especially in HVAC, conveyors, and machine-vision systems. Application: machine controls and industrial power distribution where startup surges are common. Feature → Business Impact → Application: Class RK1 fuse construction with ferrule-end termination delivers secure, vibration-tolerant connections in compact enclosures, minimizing maintenance cycles and loosening risks. Application: control cabinets and switchgear in harsh factory environments. Feature → Business Impact → Application: High interrupt rating of 300 kAIC at 250 Vac and 100 kAIC at 125 Vdc provides robust fault protection for feeders and downstream devices, supporting compliance with safety standards and reducing catastrophic failures. Application: critical power rails and protection points in industrial automation systems. Feature → Business Impact → Application: Electrically isolated end caps and a non-indicating indicator reduce diagnostic time and simplify replacement, enabling faster asset management and safer servicing. Application: routine maintenance and panel upgrades. Feature → Business Impact → Application: 3 in length with compact 0.81 in square profile fits standard Bussmann RK1 footprints, enabling easy retrofit and scalable protection across panels. Application: modular panel design and space-constrained enclosures. These features collectively support efficiency gains, improved compliance posture, and lower total cost of ownership for electrical protection strategies in manufacturing and processing environments.
Get a Quick Quote for a Eaton LPN-RK-60SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPN-RK-60SP?
Enquire Now
FAQs
The LPN-RK-60SP features ferrule end x ferrule end connections and is designed for secure, vibration-resistant mounting in standard RK1 footprints. This compatibility simplifies replacement and panel retrofits, reducing wiring complexity and ensuring a reliable mechanical fit in control enclosures.
Key ratings include a 60 A amperage rating, 250 Vac and 125 Vdc voltage ratings, and a 300 kAIC interrupt rating at 250 Vac (100 kAIC at 125 Vdc). The time-delay, dual-element design provides dependable protection during startup surges while maintaining rapid interruption under fault conditions.
Yes, the LPN-RK-60SP is CE marked, indicating compliance with applicable European safety and performance standards. Eaton provides access to RoHS-related resources, ensuring materials and processes meet environmental requirements for modern manufacturing and panel assembly.
The fuse measures 3 inches in length with a 0.81 inch profile in both height and width, and it weighs approximately 1.2 pounds. These specs support straightforward integration into standard fuse blocks and compact control cabinets.
Ideal for machine controls, power distribution in automation panels, motor protection, and protection of feeders in industrial processes. Its time-delay behavior helps reduce nuisance trips on startups, while its high interrupt rating protects downstream devices in demanding manufacturing environments.
