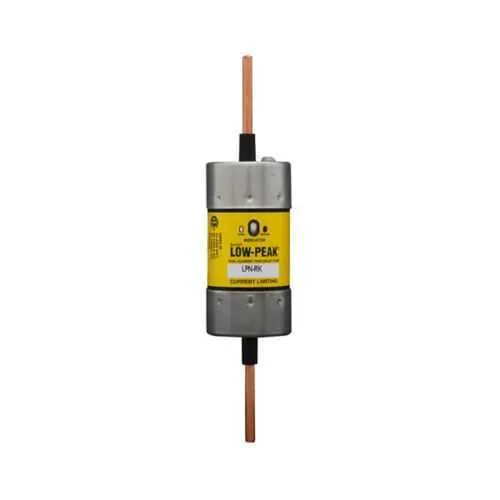

Eaton LPN-RK-80SPI Fuse - Class RK1, Time-Delay
Part Number: LPN-RK-80SPI
Quick Summary
The Eaton LPN-RK-80SPI fuse protects industrial power circuits in panels and control gear. Frequent nuisance trips and downtime from inrush or transient faults can derail production; this time-delay, dual-element design helps maintain uptime while enabling precise protection. CE marking and Class RK1 compliance offer reliable, industry-standard protection for electrical distribution. With 80 A rating and a high interrupt capability, it aligns with modern safety and performance requirements, while its compact form factor supports easier installation in crowded enclosures. This fuse delivers strong protection without sacrificing accessibility or serviceability, making it a practical choice for panel builders and OEMs seeking dependable, compliant protection for motor drives and power distribution.
Product Information
Extended Description
LPN-RK-80SPI Eaton: Eaton Bussmann Series Class RK1 fuse, LPN-RK, time-delay, dual-element, current limiting fuse, 80 A, indicating fuse, interrupting rating of 300 kA at 250 Vac
Product Name
Eaton Bussmann series LPN-RK fuse
Catalog Number
LPN-RK-80SPI
UPC
051712626507
Product Length/Depth
5.88 in
Product Height
1.1 in
Product Width
1.1 in
Product Weight
0.35 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
80 A
Interrupt rating
100 kAIC at 250 Vdc 300 kAIC at 250 Vac
Voltage rating
250 Vac, 250 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Fuse indicator
Non-indicating With Indicator
Quantity
5
Special features
Electrically isolated end cap
Bussmann series Class J Low-Peak fuse 70-600A data sheet No. 1007
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Feature: Time-delay, dual-element design → Business Impact: Smooths inrush currents and minimizes nuisance trips, reducing unplanned downtime → Application: Motor starters and power distribution in industrial panels. Feature: Current-limiting protection → Business Impact: Offers fast interruption during fault conditions, protecting wiring and components from damage → Application: Control circuits and feeders where short-circuit energy must be limited. Feature: 80 A, 250 Vac rating → Business Impact: Clear, scalable protection for common industrial loads while maintaining voltage integrity → Application: Medium-capacity circuits in machine tools and packaging lines. Feature: Class RK1, CE Marked → Business Impact: Meets widely adopted industry standards for protection devices, easing compliance and procurement → Application: OEM panel builds requiring certified protective devices. Feature: Dual elements with electrically isolated end caps → Business Impact: Safer handling during installation and reduced risk of unintended arcs or contact with live parts → Application: Field retrofits and dense electrical cabinets where safety and reliability are paramount.
Get a Quick Quote for a Eaton LPN-RK-80SPI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPN-RK-80SPI?
Enquire Now
FAQs
The LPN-RK-80SPI is a Class RK1 dual-element, time-delay fuse designed for standard RK1 holders used in Bussmann/Eaton protection schemes. It measures 5.88 in long with 1.1 in width and height, and features electrically isolated end caps for safer installation. Ensure the panel or enclosure supports 250 Vac circuits and that the holder is rated for the device’s interrupt capability (300 kAIC at 250 Vac).
Key specs include an 80 A amperage rating, 250 Vac (also 250 Vdc) voltage rating, and a 300 kAIC interrupt rating at 250 Vac, with 100 kAIC at 250 Vdc. It is a time-delay, current-limiting fuse with dual elements, designed to tolerate inrush while protecting wiring and components from short circuits.
Yes. The 80 A, 250 Vac rating combined with time-delay, dual-element design and high interrupt capability makes it well-suited for motor starters, conveyors, and other motor control applications where inrush is common. Its Class RK1 compatibility and CE marking help ensure compliance in common industrial panel builds.
The LPN-RK-80SPI is CE marked, reflecting compliance with European safety and environmental directives. It is a Class RK1 fuse with a dual-element, time-delay design and electrically isolated end caps for safe handling. For broader RoHS considerations, utilize Eaton’s RoHS search tool as needed to verify current status in your region.
Using the LPN-RK-80SPI minimizes unplanned downtime by tolerating inrush events while quickly interrupting faults, reducing downstream damage. Its 5.88 in length and standard RK1 form factor simplify installation, while the 80 A rating supports typical mid-range loads, delivering reliability, safety, and improved maintenance intervals for long-term cost savings.
