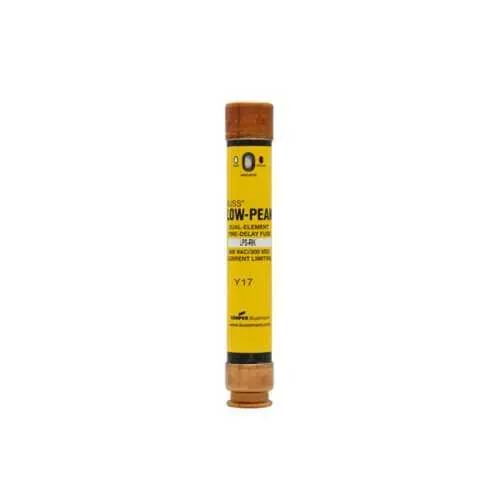

Eaton LPS-RK-10SPI Fuse - RK1 Time-Delay, 600 Vac
Part Number: LPS-RK-10SPI
Quick Summary
The Eaton LPS-RK-10SPI fuse is a time-delay, dual-element, current-limiting protection device ideal for motor circuits, power distribution panels, and control enclosures. Engineers often wrestle with nuisance tripping during motor startups and inrush events, which this fuse helps mitigate through its tuned time-delay response and robust fault-clearing capabilities. This product is CE Marked, aligning with European safety requirements, and belongs to the RK1 family designed for reliable protective coordination in industrial environments; SIL and IP ratings aren’t specified in the data. By delivering compact form, clear indicator options, and strong performance at 600 Vac, it supports efficient panel design and reduced maintenance across diverse applications.
Product Information
Extended Description
LPS-RK-10SPI Eaton: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 10 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-10SPI
UPC
051712626880
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
1.6 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
10 A
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Quantity
10
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 600 V LPS Class RK1 time-delay fuses, up to 600 A data sheet no. 1001
Feature → Time-delay, dual-element design delivers dependable protection for motor circuits and equipment subjected to startup surges. Business Impact → Reduces nuisance trips and extends asset life by avoiding unnecessary shutdowns. Application → Ideal for motor starters, conveyors, and control panels in manufacturing environments. Feature → 10 A amperage rating with 600 Vac capability and 300 kAIC interrupt rating at 600 Vac provides robust fault clearance. Business Impact → Improves safety margins and minimizes downstream damage during short circuits. Application → Suitable for mid-range motor drives and industrial control circuits in rugged settings. Feature → Indicating vs non-indicating option and dual-element configuration support easier fault diagnosis and maintenance. Business Impact → Faster troubleshooting and reduced downtime. Application → Useful in control cabinets and service entrances where visual confirmation aids operations. Feature → RK1 class fuse with ferrule end x ferrule end connections offers reliable, repeatable installation in standard RK1 holders. Business Impact → Simplifies procurement and replacement, lowering maintenance costs. Application → Fits common Bussmann RK1 layouts across panels and enclosures. Feature → Compact 5 in length with a 0.81 in width and height, weight around 1.6 lb, and standard packaging. Business Impact → Streamlined enclosure design and easier handling during installation. Application → Ideal for space-constrained panels and retrofits in manufacturing facilities.
Get a Quick Quote for a Eaton LPS-RK-10SPI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-10SPI?
Enquire Now
FAQs
Yes. The LPS-RK-10SPI uses ferrule-end terminations (ferrule end x ferrule end), which aligns with standard RK1 fuse holders and panel buses. Its 5 in length and dual-element construction suit common industrial enclosures, enabling straightforward removal and replacement in existing Bussmann RK1 layouts. Ensure mating hardware supports ferrule conductors of the appropriate gauge and follow Eaton's mounting guidelines for safe, reliable operation.
Key ratings include a 10 A amperage rating, a 600 Vac maximum voltage, and an interrupt rating of 300 kAIC at 600 Vac (100 kAIC at 300 Vdc). The device is designed as a time-delay, current-limiting fuse with a dual-element configuration, providing reliable protection for circuits prone to startup surges. This combination supports safe operation in demanding industrial environments.
Time-delay RK1 fuses excel in motor control, conveyors, and power-distribution panels where startup inrush and short-circuit hazards coexist. The 10 A rating and 600 Vac capability enable selective coordination with upstream protection devices, reducing full-system outages while preserving downstream components. Use in control cabinets and machine enclosures to extend component life and simplify maintenance in manufacturing settings.
CE marking on the LPS-RK-10SPI indicates conformity with European safety standards; Bussmann RK1 products typically align with industry installation codes. Specific SIL or IP ratings are not listed in the data, and RoHS status is accessible via Eaton's RoHS tool. For procurement, verify your regional compliance requirements and consult the latest Eaton datasheet to confirm certifications for your application.
Using the LPS-RK-10SPI reduces maintenance and downtime by limiting nuisance trips during motor start-ups while delivering fast fault clearing during faults. Its compact 5 inch form, standard ferrule terminations, and clear indicator options help technicians quickly locate blown fuses, simplifying replacement. Over time, this translates into fewer outages, lower maintenance costs, and longer equipment life in industrial facilities.
