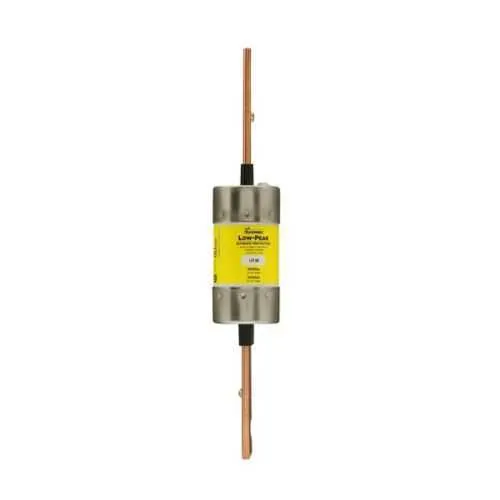

Eaton LPS-RK-175SP-TP Fuse - Class RK1
Part Number: LPS-RK-175SP-TP
Quick Summary
The Eaton Bussmann LPS-RK-175SP-TP fuse provides time-delay, current-limiting protection for industrial power circuits. This design helps reduce nuisance trips during motor start-up while safeguarding critical equipment. It carries RoHS compliance and is categorized as Class RK1, delivering high interrupt capability at 300 Vdc and 600 Vac. The combination of tin-plated contacts and a robust RK1 designation supports reliable operation in demanding environments, enabling safer power distribution. For procurement and installation, this device offers compatibility with standard Bussmann RK1 families and aligns with common panel and drive architectures to improve uptime and maintenance planning.
Product Information
Extended Description
LPS-RK-175SP-TP Eaton: Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 175 A, RK1, Non-indicating, Time delay, Current-limiting, 100 kAIC at 300 Vdc, 300 kAIC at 600 V, Tin-plated, 600 V, 300 Vdc
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-175SP-TP
UPC
051712752459
Product Length/Depth
9.63 in
Product Height
1.61 in
Product Width
1.61 in
Product Weight
2 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Amperage Rating
175 A
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Voltage rating
600 V, 300 Vdc
Fuse type
Time delay Current-limiting
Material
Tin-plated
Class
Class RK1
Fuse indicator
Non-indicating
LPS-RK-175SP-TP~CLASS RK1 FUSE TIN PLATED
LPS-RK-175SP-TP~CLASS RK1 FUSE TIN PLATED
Bussmann series Fuseology
Eaton Specification Sheet - LPS-RK-175SP-TP
Feature: Time-delay, current-limiting fuse with 175 A rating. Benefit: Supports safe motor starting and protects conductors without sacrificing protection during transient events, reducing downtime in motor control centers. Application: Suitable for drives and panel boards in heavy industry where inrush is expected and continuous operation is critical. Feature: High interrupt ratings – 100 kAIC at 300 Vdc and 300 kAIC at 600 Vac. Benefit: Maintains system safety during large fault currents and preserves downstream devices, enabling protective coordination across DC and AC circuits. Application: DC bus protection and AC distribution networks in manufacturing and process facilities. Feature: RK1 class designation, tin-plated material, and RoHS compliance. Benefit: Ensures reliable, corrosion-resistant connections with compliant manufacturing practices, supporting long service life and easier compliance reporting. Application: Industrial environments requiring durable protection components within standardized RK1 assemblies. Feature: Compact form factor with 9.63 in length and 1.61 in width/height, 2 lb weight. Benefit: Easy integration into existing fuse blocks and panel spaces without significant layout changes, optimizing installation time. Application: Retrofit projects and new builds where footprint and weight constraints matter. Feature: Non-indicating fuse body for quick replacement and straightforward diagnostics. Benefit: Minimizes downtime during maintenance and reduces inventory complexity by aligning with standard RK1 stock. Application: Routine protection in power panels and motor control equipment across facilities.
Get a Quick Quote for a Eaton LPS-RK-175SP-TP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-175SP-TP?
Enquire Now
FAQs
Mount the LPS-RK-175SP-TP in standard RK1-compatible fuse blocks within panel boards. Ensure alignment with tin-plated contacts for corrosion resistance and proper torque on fuse links. Confirm voltage ratings of 600 V AC or 300 V DC per the circuit, and provide adequate clearance and ventilation for heat dissipation during fault conditions.
The fuse provides 175 A continuous rating with an interrupt rating of 100 kAIC at 300 Vdc and 300 kAIC at 600 Vac, and voltage ratings of 600 V AC / 300 V DC. These ratings enable safe protection for high-inrush loads in AC drives and DC bus circuits, while maintaining selective coordination with adjacent protection devices.
Yes. Its time-delay feature accommodates motor inrush, and the current-limiting design helps limit damage during faults. It is appropriate for motor control centers, drive panels, and other motor-protection scenarios where uptime and fault clearance are critical, provided the 175 A rating matches the motor current and system coordination requirements.
The LPS-RK-175SP-TP is RoHS compliant, aligning with environmental and process restrictions for hazardous substances. While CE/SIL/IP certifications are not listed in the provided data, RoHS compliance ensures responsible material usage; for broader regulatory coverage, verify with Eaton documentation and regional requirements.
The high interrupt capability and time-delay characteristics help reduce downtime by preventing nuisance trips during startup while protecting feeders from short circuits. Tin-plated contacts improve longevity in harsh environments, and the RK1-class compatibility streamlines procurement and stocking. Overall, users can expect improved equipment protection, easier maintenance planning, and lower total cost of ownership.
