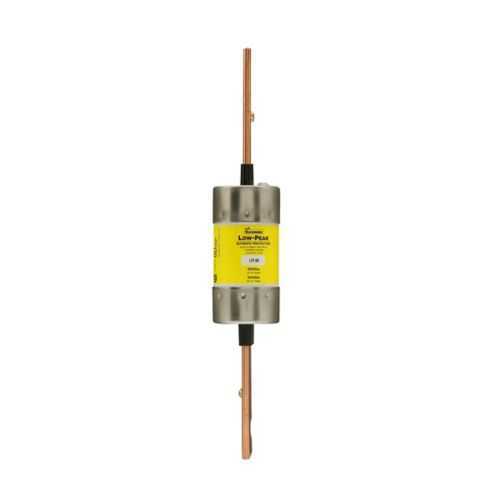

Eaton LPS-RK-200SP-TP Fuse - RK1 Class, Time-Delay
Part Number: LPS-RK-200SP-TP
Quick Summary
The Eaton LPS-RK-200SP-TP fuse is a time-delay, current-limiting blade-end device designed for electrical protection in industrial panels and motor drives. In modern automation environments, engineers often contend with nuisance trips and improper selectivity that disrupt uptime and increase service costs. Key standards include RoHS compliance and the RK1 class designation, with voltage ratings of 600 V and 300 Vdc and high fault-current interrupt performance. Its compact 9.63 in length and blade-end connections help streamline panel layouts, while the tin-plated construction supports durable, maintenance-friendly operation—reducing total cost of ownership.
Product Information
Extended Description
LPS-RK-200SP-TP Eaton: Eaton Bussmann series LPS-RK fuse, Low-peak fuse, 200 A, RK1, Non-indicating, Blade end x blade end, Time delay, Current-limiting, 100 kAIC at 300 Vdc, 300 kAIC at 600 V, Tin-plated, Standard, 600 V, 300 Vdc
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-200SP-TP
UPC
051712752466
Product Length/Depth
9.63 in
Product Height
1.61 in
Product Width
1.61 in
Product Weight
2 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Amperage Rating
200 A
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Voltage rating
600 V, 300 Vdc
Fuse type
Time delay Current-limiting
Material
Tin-plated
Packaging type
Standard
Class
Class RK1
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - LPS-RK-200SP-TP
Time-delay, current-limiting operation reduces nuisance inrush and supports selective coordination in distribution networks. This approach limits peak surge energy and minimizes unnecessary trip events, lowering maintenance costs and unplanned downtime. The LPS-RK-200SP-TP is well-suited for motor drives, machine control panels, and feeder blocks in manufacturing and process industries. High interrupt ratings—100 kAIC at 300 Vdc and 300 kAIC at 600 Vac—deliver robust fault protection. That capability helps safeguard feeders and switchgear against high fault currents, preserving downstream equipment. It fits in standard Bussmann RK1 assemblies and can be integrated into existing protection schemes without extensive rewiring. 200 A amperage rating balances protection and continuity for medium-size feeders and localized motor circuits. When paired with time-delay action, it prevents nuisance trips during startup while maintaining fast isolation during faults. This makes it suitable for industrial controls, HVAC, and packaging lines where reliability counts. Voltage ratings of 600 V and 300 Vdc allow compatibility across mixed AC and DC sources. That versatility simplifies panel design and reduces the need for multiple fuse types within the same enclosure. Installers appreciate consistent form factors and straightforward replacement within Eaton Bussmann's RK1 ecosystem. Tin-plated contacts and a standard, blade-end to blade-end connection streamline installation. RoHS compliance ensures environmental responsibility and regulatory alignment in modern facilities. With a compact 9.63 in length and standard packaging, it fits space-constrained panels and retrofit projects. Non-indicating fuse design keeps status simple, shifting monitoring responsibilities to the control system. Reliability and durability are enhanced by tin-plated metals and robust internal construction. The result is lower maintenance, predictable performance, and a lower total cost of ownership over the life of the installation.
Get a Quick Quote for a Eaton LPS-RK-200SP-TP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-200SP-TP?
Enquire Now
FAQs
The LPS-RK-200SP-TP uses a blade-end x blade-end connection and is designed to fit standard Eaton Bussmann RK1 assemblies. It integrates with common industrial panels, control enclosures, and power distribution blocks, enabling straightforward retrofits and minimizing enclosure modification.
It features a 200 A amperage rating, 600 V AC and 300 V DC voltage ratings, and high interrupt ratings of 100 kAIC at 300 Vdc and 300 kAIC at 600 Vac. It is a time-delay, current-limiting fuse suitable for mixed-voltage industrial applications.
Yes. The 300 Vdc DC rating and 600 V AC rating enable protection across DC control circuits and AC power systems. The time-delay and current-limiting characteristics help manage inrush on motors and power supplies while maintaining fast fault isolation in AC networks.
The LPS-RK-200SP-TP is RoHS Compliant, aligning with environmental regulations for electronics. It is classified as RK1 and features tin-plated contacts, with standard blade-end connections that support compatibility within the Bussmann RK1 ecosystem.
The time-delay, current-limiting design reduces nuisance trips, improving line uptime and equipment life. Compatibility with existing RK1 layouts minimizes replacement costs, while tin-plated construction enhances durability, lowering maintenance frequency and total cost of ownership over the system’s life.
