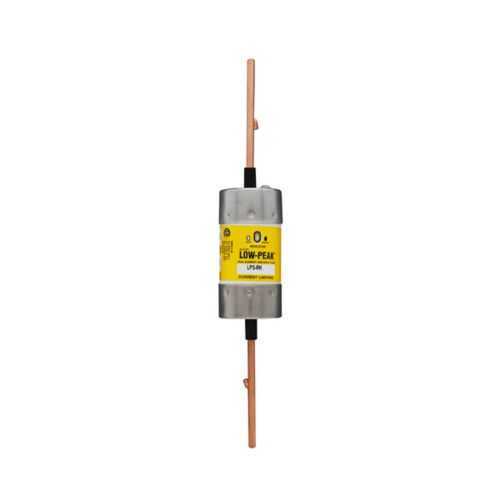

Eaton LPS-RK-200SPI fuse - 600 Vac, 300 kAIC
Part Number: LPS-RK-200SPI
Quick Summary
Eaton LPS-RK-200SPI fuse protects critical electrical loads in industrial panels and motor drives. In busy facilities, nuisance trips and slow surge response can drive maintenance costs and uptime risk. This CE Marked, Bussmann Series RK1 time-delay fuse uses dual elements to deliver current-limiting protection at 600 Vac with a 300 kAIC interrupt rating, improving selectivity and safety. The 200 A rating and blade-end connection support scalable protection for MCCs, switchgear, and distribution panels. By combining robust protection with easy installation and clear compliance, it helps engineers minimize downtime and total cost of ownership in demanding environments.
Product Information
Extended Description
LPS-RK-200SPI Eaton: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 200 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-200SPI
UPC
051712626965
Product Length/Depth
9.63 in
Product Height
1.61 in
Product Width
1.61 in
Product Weight
2 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
200 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC at 300 Vdc
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Connection
Blade end x blade end
Fuse indicator
Non-indicating With Indicator
Quantity
1
Special features
Electrically isolated end cap
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 600 V LPS Class RK1 time-delay fuses, 70-600 A data sheet no. 1002
Feature → Business Impact → Application: The LPS-RK-200SPI is a dual-element, time-delay, current-limiting fuse that tolerates brief inrush without nuisance trips, protecting circuits and extending component life in motor drives and control panels. This translates to reduced maintenance costs and improved uptime in conveyor and packaging lines. Feature → Business Impact → Application: With a 200 A amperage rating and a 600 Vac voltage rating, the unit provides strong protection for feeder circuits and MCCs, delivering a high 300 kAIC interrupt capability that minimizes arc energy and equipment damage during faults. Feature → Business Impact → Application: Class RK1 construction and blade-end x blade-end connection enable straightforward panel integration and reliable insertion/removal, while electrically isolated end caps reduce shock risk during maintenance. Feature → Business Impact → Application: The fuse’s standard packaging and available indicator variant support safer field replacement and status monitoring, helping maintenance teams plan replacements and reduce panel downtime. This fuse aligns with industry protection standards for industrial controls, motors, and feeders, delivering measurable efficiency gains and compliance confidence.
Get a Quick Quote for a Eaton LPS-RK-200SPI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-200SPI?
Enquire Now
FAQs
Install the LPS-RK-200SPI using blade-end x blade-end connections within compatible enclosures. Ensure the circuit is de-energized and verify 600 Vac rating and 200 A current path. Use the electrically isolated end caps for safe handling during installation and replacement, and confirm the fuse indicator option if monitoring is required.
The fuse provides 300 kAIC interrupt rating at 600 Vac, with a secondary rating of 100 kAIC at 300 Vdc. It is a 200 A, time-delay, current-limiting device designed for high-energy industrial circuits and motor protection in control panels.
Yes. The dual-element, time-delay design tolerates inrush and short surges common in motors, while delivering current-limiting protection to prevent damage to feeders and drives. With a 200 A rating and RK1 class construction, it suits MCCs, switchgear, and motor control centers in harsh industrial environments.
The product is CE Marked, confirming compliance with European safety standards. It adheres to Bussmann RK1 series design principles and uses standard RK1 protection, facilitating compliance within Europe and aligned industrial projects.
The fuse supports an indicator variant for status monitoring, enabling quick verification of fuse health in panels. Combined with easy blade-end installation and a compact form factor, this reduces maintenance time, minimizes downtime, and improves lifecycle planning for protection schemes.
