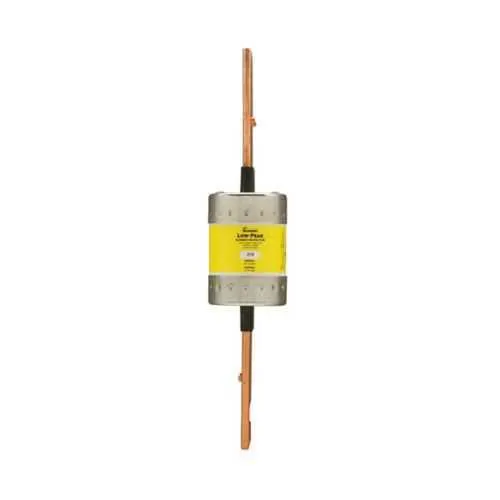

Eaton LPS-RK-250SP Fuse - Class RK1, 600 Vac RoHS CE
Part Number: LPS-RK-250SP
Quick Summary
Eaton LPS-RK-250SP fuse provides reliable, time-delay protection for industrial power circuits and motor control panels. Engineers face nuisance trips from inrush currents and mis-sized protection, which can escalate downtime and maintenance costs; this dual-element fuse minimizes those events while still delivering fast fault interruption. The device carries RoHS compliance and CE marking, supporting global regulatory needs, and its Class RK1 rating with a 250 A amperage rating anchors protection for demanding applications. Designed for blade-end connections and electrically isolated end caps, it installs quickly in standard enclosures, easing stocking and field replacements. By combining robust protection with simple installation, it helps reduce spare-part inventories while improving overall line reliability.
Product Information
Extended Description
LPS-RK-250SP Eaton: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 250 A, non-indicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-250SP
UPC
051712548526
EAN
5704057045704
Product Length/Depth
11.63 in
Product Height
2.36 in
Product Width
2.36 in
Product Weight
2.35 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Amperage Rating
250 A
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Quantity
1
Special features
Electrically isolated end cap
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 600 V LPS Class RK1 time-delay fuses, 70-600 A data sheet no. 1002
Time-delay, dual-element, current-limiting design delivers dependable protection against fault currents while tolerating motor inrush. This minimizes nuisance trips and reduces wear on motors and drives, translating to lower maintenance costs and extended equipment life in manufacturing, packaging, and process plants. The fuse’s high interrupt ratings, 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, enable safe disconnection of large fault faults without collateral damage in panel boards and MCCs. Class RK1 with blade-end connections provides quick, secure installation in standard enclosures, improving serviceability and stock management. Electrically isolated end caps enhance safety during installation and maintenance, while RoHS compliance and CE marking ensure regulatory alignment across global sites. The 11.63 in length and 2.36 in width/height deliver a compact, standard footprint compatible with conventional protection schemes, reducing retrofit time and spare-parts complexity. Non-indicating status requires panel- or system-level monitoring, simplifying indicator integration in busy control rooms.
Get a Quick Quote for a Eaton LPS-RK-250SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-250SP?
Enquire Now
FAQs
The LPS-RK-250SP uses blade end x blade end connections with an overall length of 11.63 in and dimensions of 2.36 in in width and height, designed for standard panel mounting and easy drop-in replacement.
It is rated for 250 A with interrupt ratings of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, and voltage ratings of 600 Vac / 300 Vdc, suitable for high-energy industrial circuits.
Yes. The fuse is RoHS compliant and CE marked, aligning with global regulatory requirements for electrical protection components.
Best suited for motor control centers, drives, and power distribution panels where inrush currents are common and reliable protection is required without nuisance tripping.
It features time-delay, dual-element current-limiting protection with electrically isolated end caps, Class RK1 specification, blade-end connections, and a non-indicating design suited for streamlined system monitoring and maintenance.
