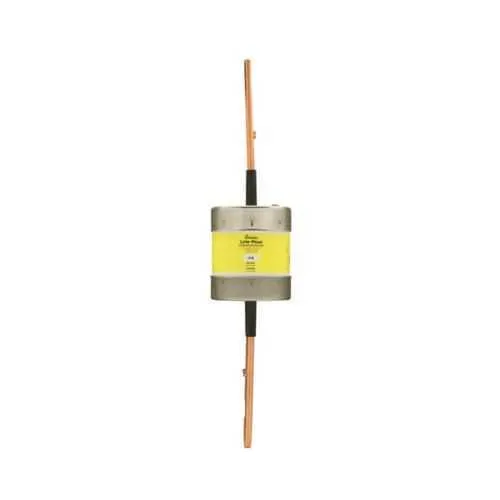

Eaton LPS-RK-500SP fuse - Class RK1 CE Marked
Part Number: LPS-RK-500SP
Quick Summary
The Eaton LPS-RK-500SP fuse is a time-delay, dual-element current-limiting device designed for protecting power distribution circuits in industrial equipment. This design minimizes nuisance trips and downtime on motor loads and critical feeders in harsh plant environments. CE Marked compliance with Class RK1 standards ensures reliable protection and safe installation in European panels and international enclosures. With a 500 A amperage rating and 600 Vac / 300 Vdc capability, it delivers robust protection while simplifying procurement through the Bussmann series ecosystem.
Product Information
Extended Description
LPS-RK-500SP Eaton: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 500 A, non-indicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-500SP
UPC
051712548571
Product Length/Depth
13.38 in
Product Height
2.88 in
Product Width
2.88 in
Product Weight
5.6 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
500 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC at 300 Vdc
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Quantity
1
Special features
Electrically isolated end cap
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 600 V LPS Class RK1 time-delay fuses, 70-600 A data sheet no. 1002
Time-delay, dual-element design delivers motor-friendly inrush tolerance while maintaining fast fault interruption. This reduces nuisance trips and extends equipment life, making it ideal for motor drives, pumps, and conveyors in continuous-process environments. High interruption ratings provide safe clearance of short circuits without damaging upstream equipment, translating to improved panel reliability and lower maintenance costs in high-energy feeders and distribution panels. CE Marked compliance and Class RK1 coordination help engineers meet regulatory requirements while ensuring selective protection in European and global installations. Blade-end x blade-end connections simplify retrofits in standard Bussmann series enclosures, while electrically isolated end caps enhance servicing safety and minimize the risk of accidental contact during maintenance. The device’s standard packaging and 13.38 in length with a 5.6 lb weight support straightforward stocking and quick replacements in busy electrical rooms.
Get a Quick Quote for a Eaton LPS-RK-500SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-500SP?
Enquire Now
FAQs
The LPS-RK-500SP uses blade-end connections and is designed for standard Bussmann series enclosures, making it compatible with motor control centers, feeders, and panel upgrades that rely on RK1-class fuses. It fits industrial power distribution applications where motor drives and pumps require reliable protection with selective coordination.
The fuse is rated at 500 A with voltage ratings of 600 Vac and 300 Vdc. It provides an interrupt rating of 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc, enabling safe interruption of high-energy fault currents in demanding industrial circuits.
Yes. It features electrically isolated end caps for safer servicing, a non-indicating indicator to simplify maintenance, blade-end connections for secure installation, and CE Marked compliance to meet European safety standards in electrical equipment assemblies.
Absolutely. Its time-delay, dual-element design tolerates motor inrush while limiting fault currents, which minimizes nuisance trips and protects motors, drives, and connected feeders in continuous-operation environments.
You can access the Bussmann Full Line Catalog and the data sheet no. 1002 for Low-Peak 600 V LPS RK1 time-delay fuses, along with the RoHS compliance information tool and product listings, to support design, procurement, and maintenance activities.
