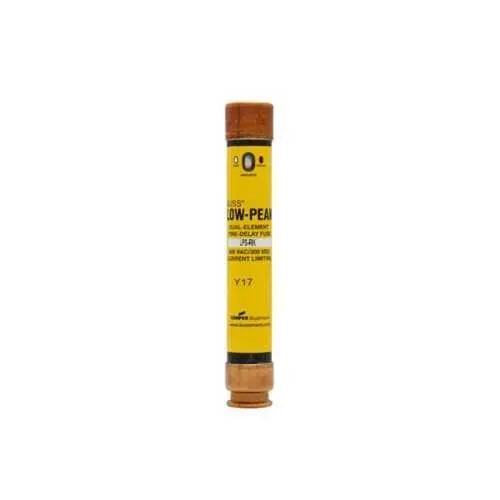

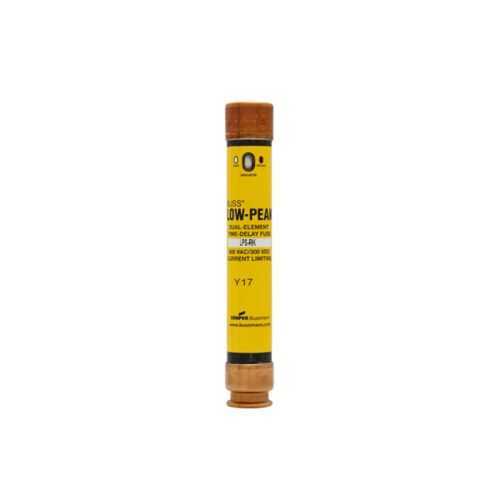

Eaton LPS-RK-7SPI Fuse - Class RK1 Time-Delay
Part Number: LPS-RK-7SPI
Quick Summary
The Eaton LPS-RK-7SPI fuse provides time-delay protection for industrial power circuits. It minimizes nuisance trips and protects sensitive equipment from surge events, reducing downtime. This device conforms to CE marking and RoHS compliance, helping you meet European safety and environmental requirements with confidence. Built as a Class RK1, time-delay, dual-element, current-limiting fuse, it delivers reliable interruption performance in demanding electrical environments. Suitable for 600 Vac systems and 300 Vdc applications, it supports compact OEM layouts while maintaining clear indicator options for quick status checks. For procurement teams and engineers, this fuse offers predictable coordination with upstream protective devices and streamlined maintenance.
Product Information
Extended Description
LPS-RK-7SPI Eaton: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 7 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-7SPI
UPC
051712628440
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
1.6 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
7 A
Interrupt rating
300 kAIC at 600 Vac 100 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Fuse indicator
Non-indicating With Indicator
Quantity
10
Special features
Electrically isolated end cap
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 600 V LPS Class RK1 time-delay fuses, up to 600 A data sheet no. 1001
Time-delay, dual-element, current-limiting design reduces nuisance trips while tolerating normal inrush. Business impact: smoother start-ups and longer motor life; Application: motor control centers and conveyors in automation lines. The fuse delivers a high interruption rating of 300 kAIC at 600 Vac, providing robust fault protection for large panel boards and power distribution networks. Business impact: enhanced safety margins and reduced feeder damage; Application: heavy-duty power distribution in manufacturing environments. CE marking and RoHS compliance streamline European approvals, enabling faster time-to-market and easier procurement. Business impact: regulatory assurance and compliance transparency; Application: machinery and control panels across EU facilities. Electrically isolated end caps improve installation safety and maintenance access, reducing risk during panel servicing. Business impact: safer fieldwork; Application: crowded control rooms and multi-user automation cells. Indicator options support quick status checks in lean maintenance workflows. Business impact: reduced diagnostic time; Application: OEM assemblies and field-service scenarios. The 5 in length and standard packaging fit common RK1 holders, enabling straightforward replacements. Business impact: minimized downtime during spares stocking and service windows; Application: retrofit and new-build panel projects. 600 Vac and 300 Vdc voltage ratings provide versatility across mixed-voltage systems. Business impact: unified protection strategy across equipment families; Application: hybrid automation lines and multi-voltage drives.
Get a Quick Quote for a Eaton LPS-RK-7SPI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-7SPI?
Enquire Now
FAQs
The LPS-RK-7SPI is well suited for motor control centers, drives, and power distribution panels where brief inrush currents are common but precise fault clearing is necessary. With a 7 A rating and 600 Vac capability, it protects equipment during startup sequences while limiting damage from short circuits, supporting reliable, continuous operation in automation lines.
Select the correct RK1 class fuse with a 7 A rating and compatible voltage, then place it in the proper RK1 fuse holder. If you need status feedback, choose the indicator variant. Use the electrically isolated end caps for safer multi-end assemblies, ensure proper torque on connections, and verify clearances to prevent arcing during replacement.
Yes. The LPS-RK-7SPI is CE marked and RoHS compliant, aligning with European safety and environmental standards. This simplifies compliance documentation and approvals for European installations, reducing procurement friction in regulated markets.
The fuse provides a 300 kAIC interrupt rating at 600 Vac and 100 kAIC at 300 Vdc, with voltage ratings of 600 Vac and 300 Vdc. This combination supports robust protection for high-current fault conditions while remaining suitable for both AC and DC sections in mixed-voltage panels.
Yes, variants exist with an indicator or non-indicating end caps. The indicator version offers immediate visual status, aiding maintenance and fault diagnosis. Its compact 5 in length and standard packaging simplify replacement, stocking, and field servicing in control panels and OEM assemblies.
