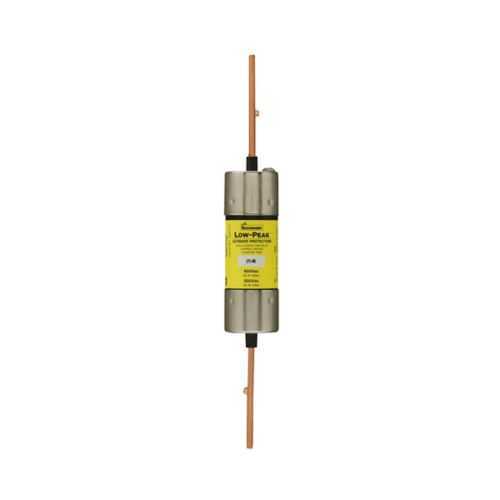

Eaton LPS-RK-80SP-TP Fuse - RK1, 600V 100kAIC
Part Number: LPS-RK-80SP-TP
Quick Summary
The Eaton LPS-RK-80SP-TP fuse provides reliable time-delay protection for large distribution switchboards. Engineers often contend with nuisance trips and miscoordination when protecting motor control centers in demanding environments. This RK1, RoHS-compliant fuse features tin-plated contacts and electrically isolated end caps to enhance safety and reliability. It supports 600 V and 300 Vdc systems, delivering robust interrupt ratings to minimize fault propagation. By choosing this fuse, you align with proven Bussmann series performance while simplifying maintenance and ensuring dependable protection for critical power paths in switchgear assemblies.
Product Information
Extended Description
LPS-RK-80SP-TP Eaton: Eaton Bussmann series LPS-RK fuse, Low-peak fuse, Large distribution switchboard, Motor control centers, 80 A, RK1, Non-indicating, Time delay, Current-limiting, 100 kAIC Vdc, 300 kAIC at 600 V, Tin-plated, 600 V, 300 Vdc
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-80SP-TP
UPC
051712752398
Product Length/Depth
7.88 in
Product Height
1.11 in
Product Width
1.11 in
Product Weight
4 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Amperage Rating
80 A
Interrupt rating
100 kAIC Vdc 300 kAIC at 600 Vac
Voltage rating
600 V, 300 Vdc
Fuse type
Time delay Current-limiting
Material
Tin-plated
Class
Class RK1
Fuse indicator
Non-indicating
Special features
Electrically isolated end cap
LPS-RK-80SP-TP~CLASS RK1 FUSE TIN PLATED
LPS-RK-80SP-TP~CLASS RK1 FUSE TIN PLATED
Bussmann series Fuseology
Eaton Specification Sheet - LPS-RK-80SP-TP
Feature → Business Impact → Application: 80 A amperage rating supports protected feeders with controlled inrush in MCCs, reducing nuisance trips and extending component life in demanding environments. This translates to measurable uptime improvements and lower maintenance overhead for mission-critical equipment used in large distribution switchboards and motor control centers. Feature → Business Impact → Application: Time-delay, current-limiting characteristics provide fast fault isolation without sacrificing normal operation, enabling safer start-ups of motor drives and reducing arc energy in 600 V systems. Feature → Business Impact → Application: Tin-plated material and electrically isolated end caps enhance corrosion resistance and safety during maintenance, improving long-term reliability in harsh plant floors and easier field servicing for electricians. Feature → Business Impact → Application: RK1 class designation and RoHS compliance align with industry standards, supporting regulatory readiness, spare-part compatibility, and streamlined procurement for panel builders. Feature → Business Impact → Application: Compact footprint (7.88 in x 1.11 in x 1.11 in) and 4 lb weight ease installation in crowded switchgear compartments, accelerating panel upgrades and retrofits in modern MCCs and large distribution boards.
Get a Quick Quote for a Eaton LPS-RK-80SP-TP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-80SP-TP?
Enquire Now
FAQs
The LPS-RK-80SP-TP is designed for large distribution switchboards and motor control centers operating at up to 600 V and 300 Vdc. It supports RK1-class protection with time-delay, current-limiting characteristics and electrically isolated end caps for safe, straightforward installation in standard MCC enclosures and protection panels.
Key ratings include 80 A current rating, 600 V AC and 300 V DC voltage ratings, and interrupt ratings of 100 kAIC for Vdc and 300 kAIC at 600 Vac. The fuse combines time-delay operation with current-limiting protection to balance normal inrush with rapid fault isolation, reducing energy through faults.
Yes, it's intended for large distribution switchboards and MCCs. Install with electrically isolated end caps for safe maintenance, and ensure mounting accommodates its 7.88 in length and 1.11 in cross-section. Tin-plated contacts improve durability, and the RoHS-compliant design supports regulatory alignment in modern panel builds.
The product is RoHS compliant and classified as RK1. While specific CE or SIL certifications are not listed in the provided data, RoHS compliance and the RK1 classification support regulatory readiness and standardized protection in industrial panels.
The tin-plated construction resists corrosion, reducing contact wear over time. Time-delay, current-limiting protection minimizes nuisance trips while preserving drive start-up performance, contributing to higher uptime and lower maintenance costs in MCCs and switchgear-heavy installations.
