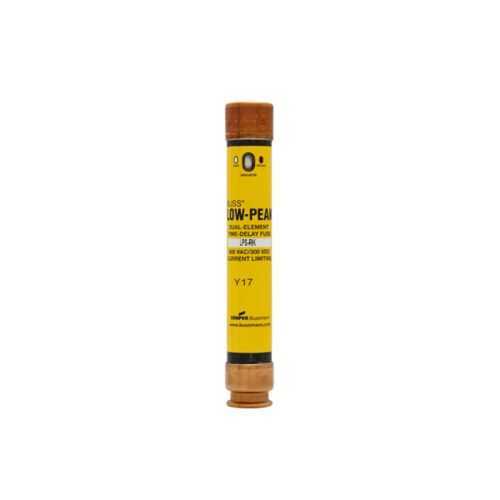

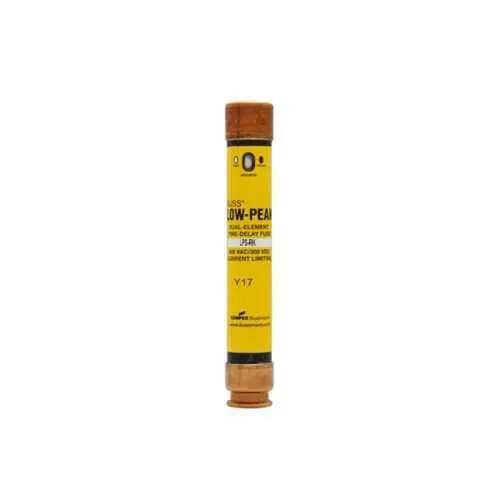

Eaton LPS-RK-8SPI Fuse - Class RK1 CE Marked, 600 Vac
Part Number: LPS-RK-8SPI
Quick Summary
Eaton LPS-RK-8SPI fuse provides reliable time-delay overcurrent protection for industrial control panels and motor circuits. This design addresses nuisance trips and poor selectivity that disrupt production and complicate maintenance. The device complies with CE Marking and belongs to Class RK1, offering time-delay, dual-element protection with a 300 kAIC interrupt rating at 600 Vac and 100 kAIC at 300 Vdc. By aligning with the Bussmann RK1 family, it delivers predictable coordination, faster fault clearance, and safer panel operation. The product supports both indicating and non-indicating variants, and its electrically isolated end caps simplify installation in OEM controls while reducing field wiring risk.
Product Information
Extended Description
LPS-RK-8SPI Eaton: Eaton Bussmann Series Class RK1 fuse, LPS-RK, time-delay, dual-element, current limiting fuse, 8 A, indicating fuse, interrupting rating of 300 kA at 600 Vac
Product Name
Eaton Bussmann series LPS-RK fuse
Catalog Number
LPS-RK-8SPI
UPC
051712628464
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
1.6 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
8 A
Interrupt rating
100 kAIC at 300 Vdc 300 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Fuse type
Time delay Current-limiting
Number of elements
Dual
Packaging type
Standard
Class
Class RK1
Fuse indicator
Non-indicating With Indicator
Quantity
10
Special features
Electrically isolated end cap
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Low-Peak 600 V LPS Class RK1 time-delay fuses, up to 600 A data sheet no. 1001
Feature: Time-delay, dual-element current-limiting fuse provides selective protection during motor starts and inrush events. Benefit: Reduces nuisance trips while maintaining fast fault clearance, improving system uptime and extending equipment life in industrial automation applications such as conveyors and pumps. Application: Fit for control panels and feeders where precise coordination is required to protect motors and controllers without overreacting to legitimate surges. Feature: Class RK1 with high interrupt rating up to 300 kAIC at 600 Vac and 100 kAIC at 300 Vdc. Benefit: Robust short-circuit protection and safer, more predictable fault isolation for critical automation lines. Application: Panelboards and power distribution in manufacturing cells needing reliable protection coordination. Feature: 5 in length, 0.81 in width, 1.6 lb weight with standard packaging. Benefit: Easy retrofit and OEM compatibility in common enclosure footprints. Application: Replacement in existing Bussmann RK1 compatible layouts with minimal modification. Feature: Electrically isolated end caps and option for indicating or non-indicating variants. Benefit: Safer installation, simpler diagnostics, and flexible status indication for maintenance. Application: OEM builds and field service where clear fault indication aids uptime and service planning.
Get a Quick Quote for a Eaton LPS-RK-8SPI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton LPS-RK-8SPI?
Enquire Now
FAQs
The LPS-RK-8SPI is designed for Bussmann RK1 form-factor installations in industrial panels and feeders. Its 5 in length and 0.81 in width fit standard RK1 slots, and its 8 A rating aligns with common motor and control circuit protection needs. It is compatible with both indicating and non-indicating end-cap configurations, simplifying retrofit in existing control panels.
Key ratings include 8 A amperage, 600 Vac voltage, and interrupt ratings up to 300 kAIC at 600 Vac (and 100 kAIC at 300 Vdc). It is a time-delay, dual-element current-limiting fuse, providing fast fault clearance while tolerating inrush events common in automation equipment.
LPS-RK-8SPI variants cover both indicating and non-indicating options. Indicating variants assist troubleshooting by signaling fault status, reducing service time, while non-indicating versions minimize visual indicators in cleanroom or space-constrained panels. Your choice impacts diagnostics and panel aesthetics without compromising protection.
The fuse is CE marked for regulatory compliance. It belongs to Class RK1 and is designed for reliable protection in industrial environments, supporting safe operation and coordinated protection across automated systems.
The LPS-RK-8SPI provides predictable fault isolation with high interrupt ratings, reducing downtime from random fuse blows. Time-delay behavior improves process continuity, while compatible RK1 form factors simplify stocking and replacements, lowering maintenance costs and safeguarding equipment life.
